Hobbywing Technology

Aircraft:> Skywalker Series


Specifications:

p/n 80060170 80060010 30205351 80060022 80060442 30216400 30216101 80060440 80060441
Model 12AE 20A 30A V2 40A V2 50A V2  50A V2
Plus

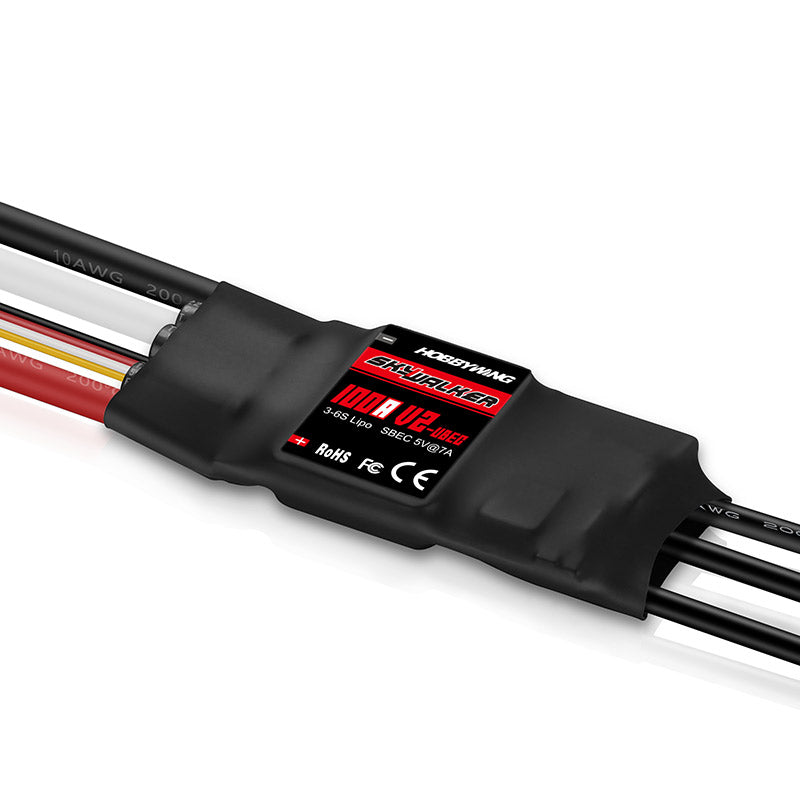

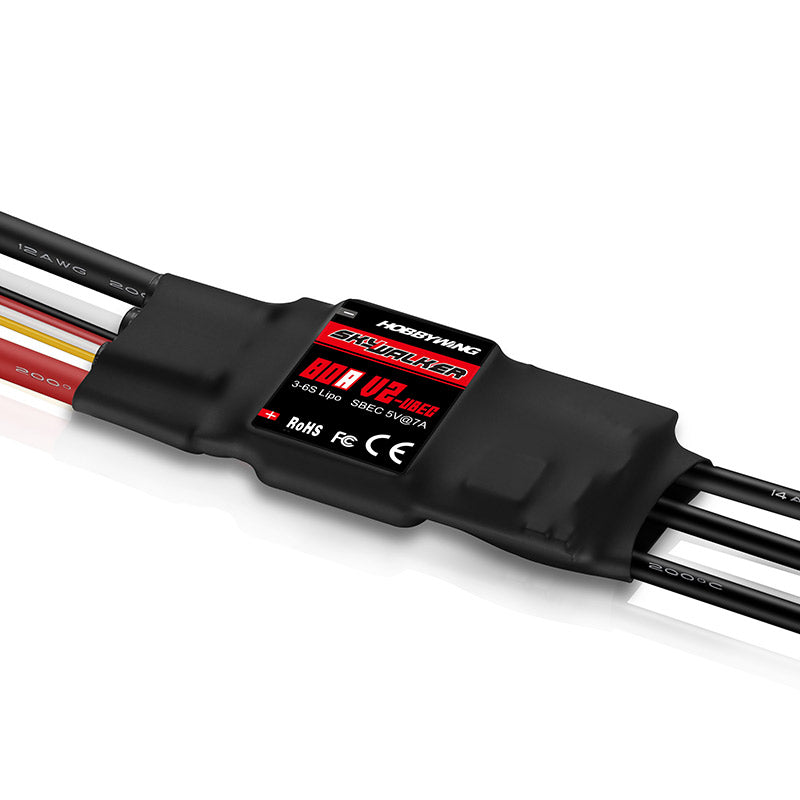

60A V2 80A V2 100A V2
Cont.Current 12A 25A 30A 40A 50A 50A 60A 80A 100A
Peak.Current
15A 25A 50A 60A 70A 70A 80S 100A 120A
Input Vol (Lipo) 2-3S 2-3S 3-4S 3-4S 3-4S 3-6S 3-6S 3-6S 3-6S
BEC Output 5V@2A (Linear mode) 5V@2A (Linear mode) 5V@3A (Linear mode) 5V@5A (Switch-mode) 5V@5A (Switch-mode) 5V@6A (Switch-mode) 5V@7A (Switch-mode) 5V@7A (Switch-mode) 5V @ 7A (Switch-mode)
Size (mm) 38x18x7 42x25x8 60x25x8 60x25x8 60x25x8 73x30x12 73x30x12 85x36x9 85 x 36 x 9
Weight (g) 19 37 33 36 36 68 68 79 92
Wires input  20AWG-100mm 18AWG-100mm 14AWG-100mm 14AWG-100mm 14AWG-100mm 14AWG-100mm 12AWG-100mm 12AWG-150mm 10AWG-150mm*
Wires output 20AWG-100mm 18AWG-75mm 16AWG-75mm 16AWG-75mm 16AWG-75mm 14AWG-100mm 14AWG-100mm 14AWG-100mm 12AWG-100mm
Output connectors N/A 3.5 Gold Connectors (Female) 3.5 Gold Connectors (Female) 3.5 Gold Connectors (Female) 3.5 Gold Connectors (Female) None None 4.0 Gold Connectors (Female) 4.0 Gold Connectors (Female)
Programming Stick / LED program card Stick / LED program card Stick / LED program box Stick / LED program box Stick / LED program box Stick / LED program box Stick / LED program box Stick / LED program box Stick / LED program box
Firmware update N N N N N N N N N

Max motor limit:
v1: 210000rpm for 2 Poles BLM*, 70000rpm for 6 poles BLM*, 35000rpm for 12 poles BLM (BrushLess Motor)

Download:

User's Manual > Manual_Skywalker_V2

Product catalogSKYWALKER_V2_Leafiet_ENs

Skywalker 2826 SL motor $39.99 USD $57.00 USD

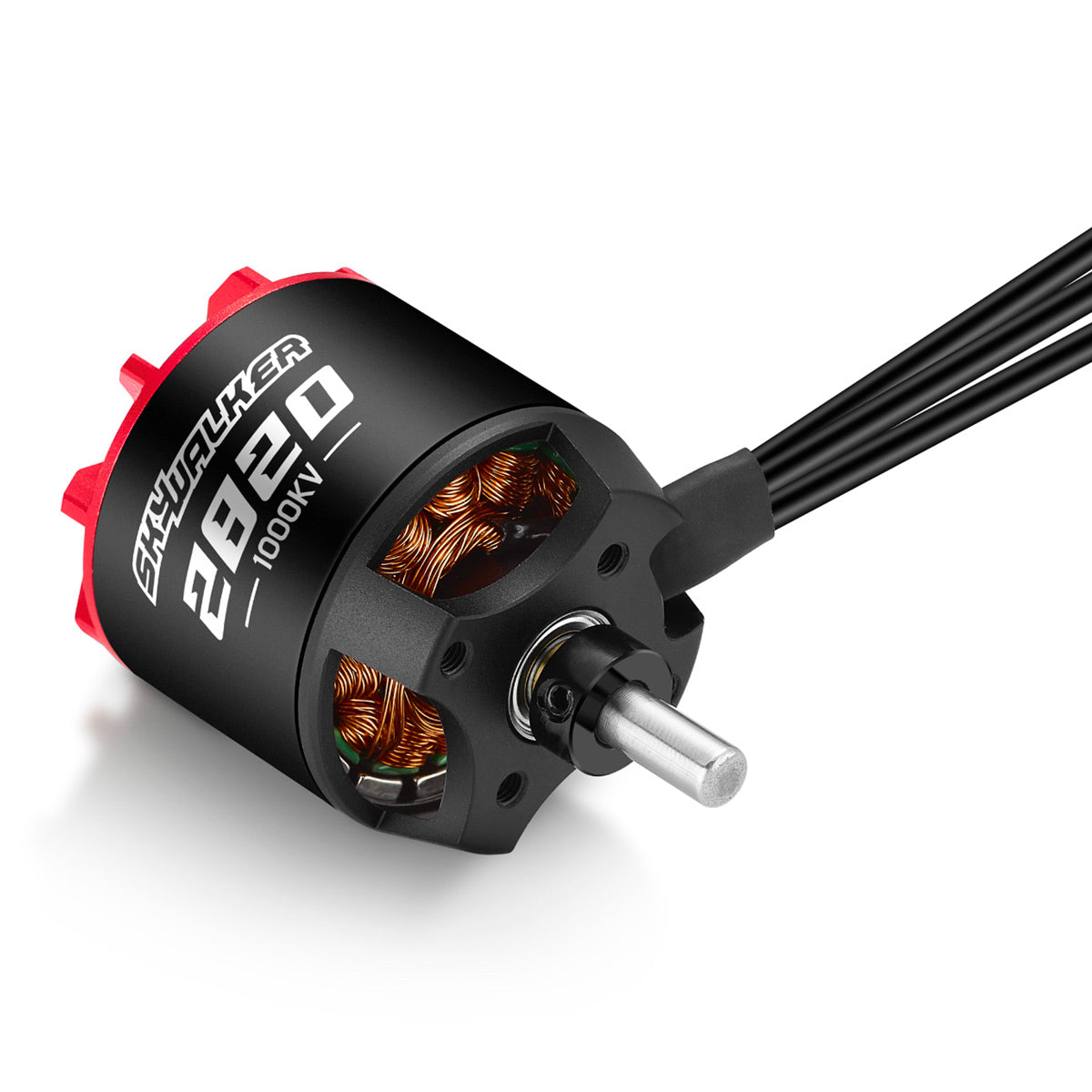

Skywalker 2820 SL motor $39.99 USD $57.00 USD
Skywalker 2814 SL motor $34.99 USD $50.00 USD

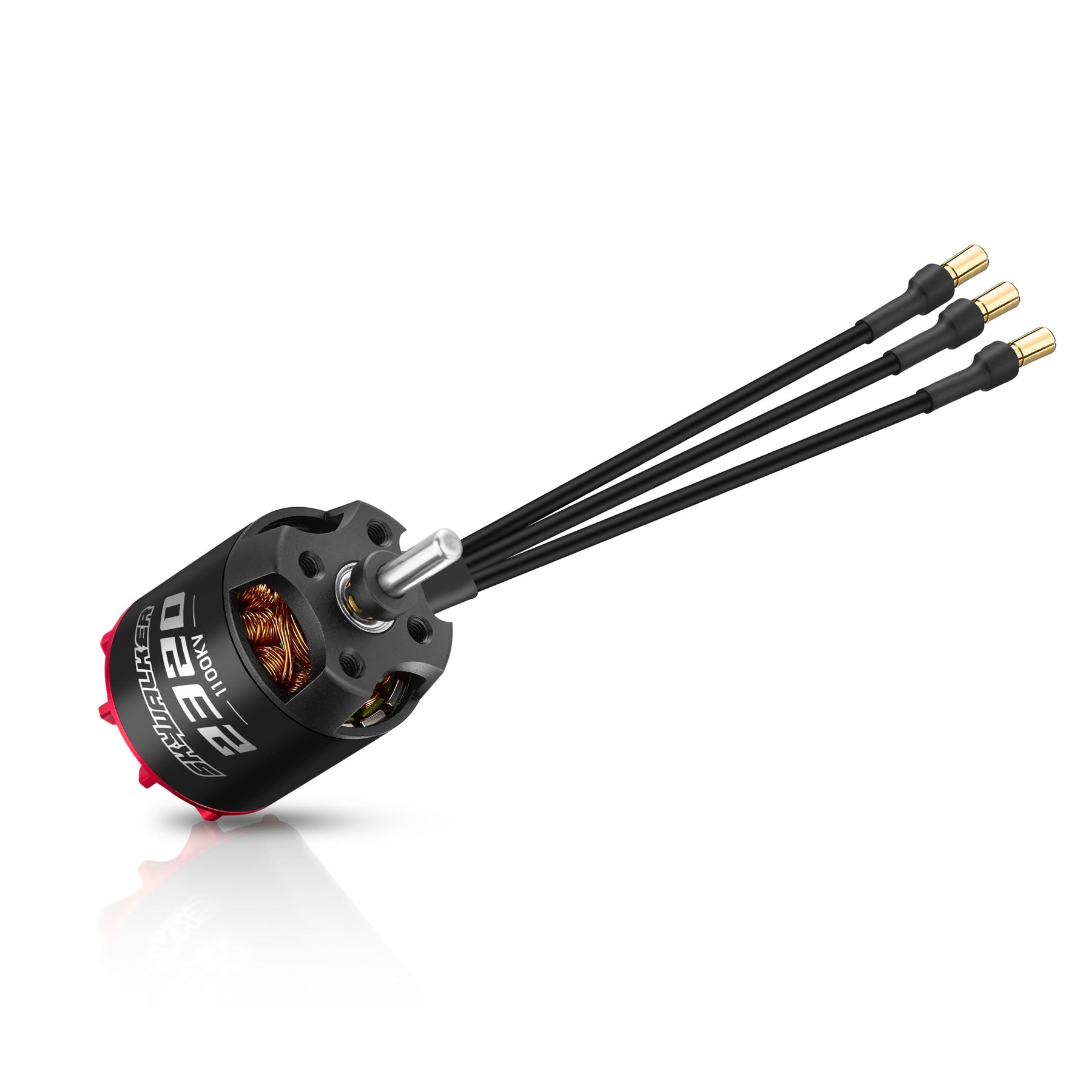

Skywalker 2320 SL motor $30.99 USD $44.00 USD

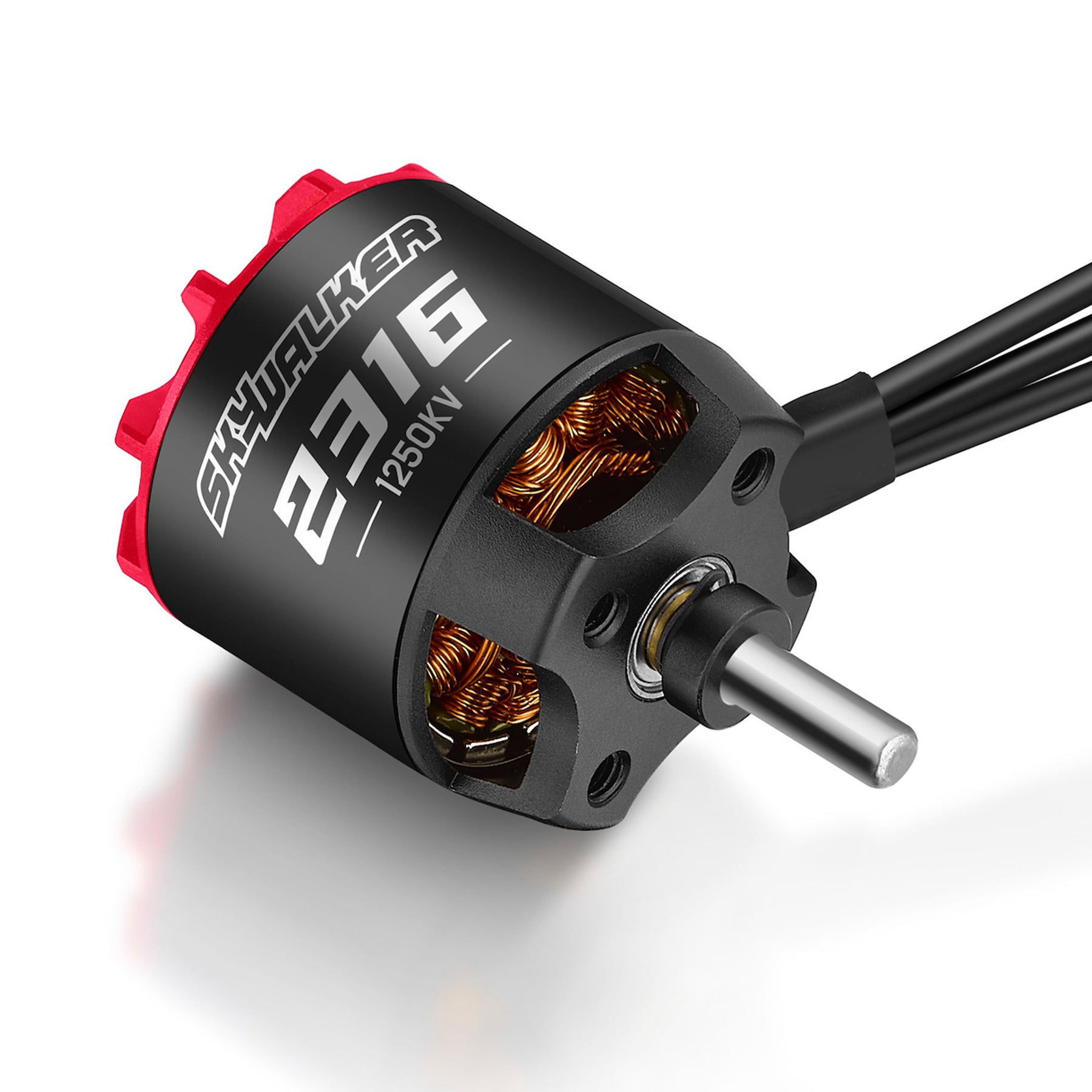

Skywalker 2316 SL motor $25.99 USD $37.00 USD

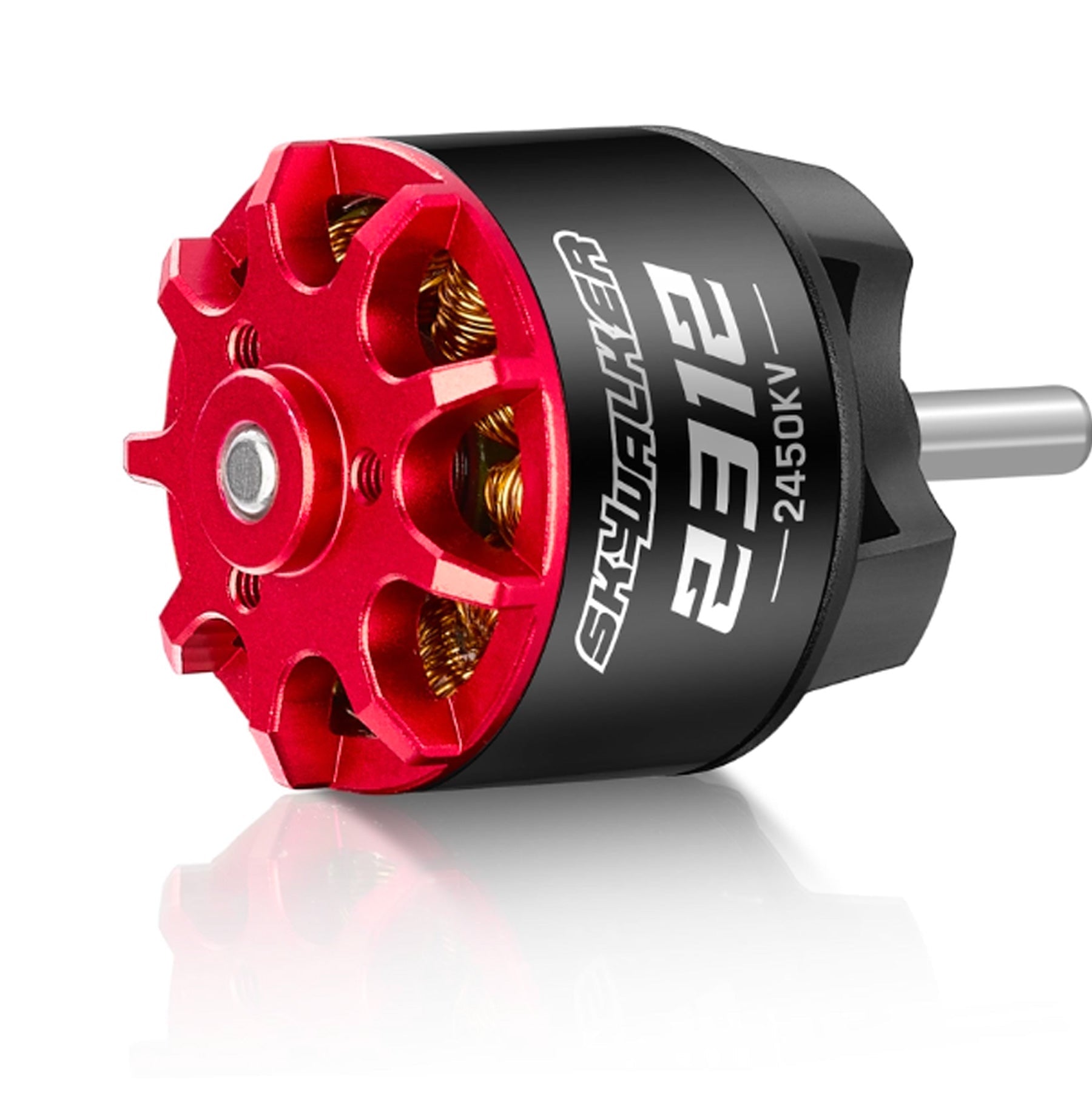

Skywalker 2312 SL motor $23.99 USD $148.00 USD
Skywalker ESC from $8.99 USD $14.00 USD
