XR10 PRO G2S series

Introducing XERUN XR10 Professional

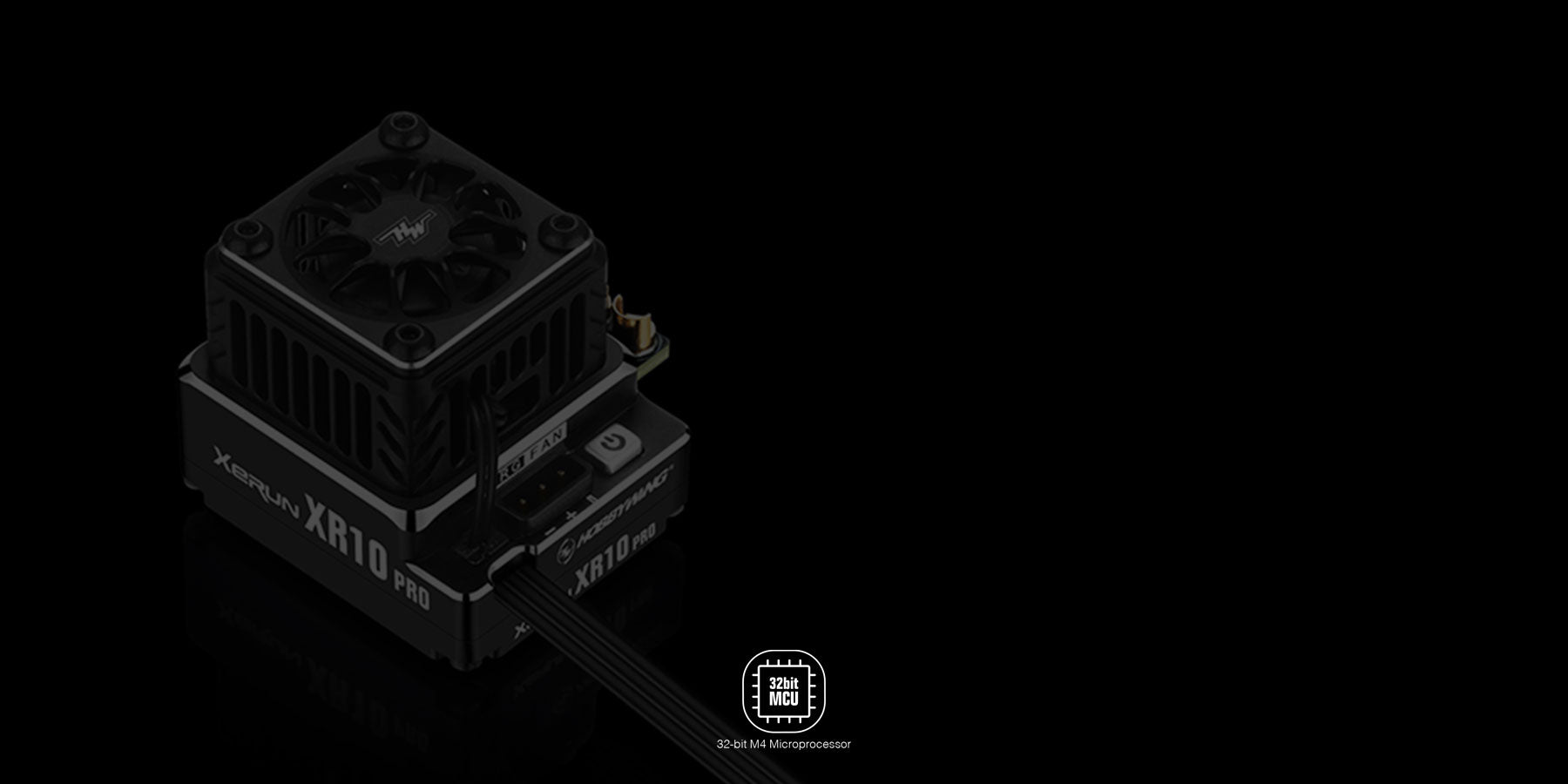

32 Bit, M4 Microprocessor for the ultimate performance 32 Bit, M4 Microprocessor for the ultimate performance

Ultra high performance 32bit M4 microprocessor usage ensures that the ESC is able to deal with anything that even the fastest racers may need. This makes the ESC more precise and have the needed ultra fast response needed to showcase the hardware and talents of the racer.

20% More flexibility and control

Precisely Adjust Throttle and Brake PWM Precisely Adjust Throttle and Brake PWM

PWM frequencies are a crucial tuning tool. With the custom frequency settings, tuners can now adjust from 1K - 32K PWM for Throttle and 0.5-16K for Brakes. This allows ultra fine-tuning of throttle and brakes to suit any driver or track condition.

Just right.

Optimized programmable Parameters Optimized programmable Parameters

With the right balance of settings, the XR10 Pro G2S offers all the tuning needed. From tuning throttle, brakes, and everything in between, to being able to set up your "A-C" wires as needed for the cleanest of installs, the G2S has you covered.

Extended Brake Force Extended Brake Force

Stop is as important as anything else in racing. Updated brake force setting allows extra brake force and a stronger feeling. Often spec/blinky racing stuffers from less than ideal braking power. These new settings allow brakes to be perfect for all applications.

New Drag Brake Acceleration & Softening Function* New Drag Brake Acceleration & Softening Function*

This new setting controls the drag brake response, or how quickly the drag brakes get applied. Another valuable tuning tool to get your drag brake settings perfect. *Hobbywing Patented ESC technology - Softening function.Power delivery and feel, wrapped into a powerful set of settings that allow drivers to provide an added level of throttle feel fine-tuning. Used to control wheel spin, power delivery, and generally take the harsh edge off big power setups. The amount and range can be tuned to meet any motor or track needs.

Super durable Battery Eliminator Circuit

Internal BEC Built for Racing Internal BEC Built for Racing

The BEC is a switching design and provides up to 10amps of power to your electronics. Adjustable from 5-7.4 volts, the XR10 Pro G2S internal BEC is ready to take on any servo.

Unlock the true potential

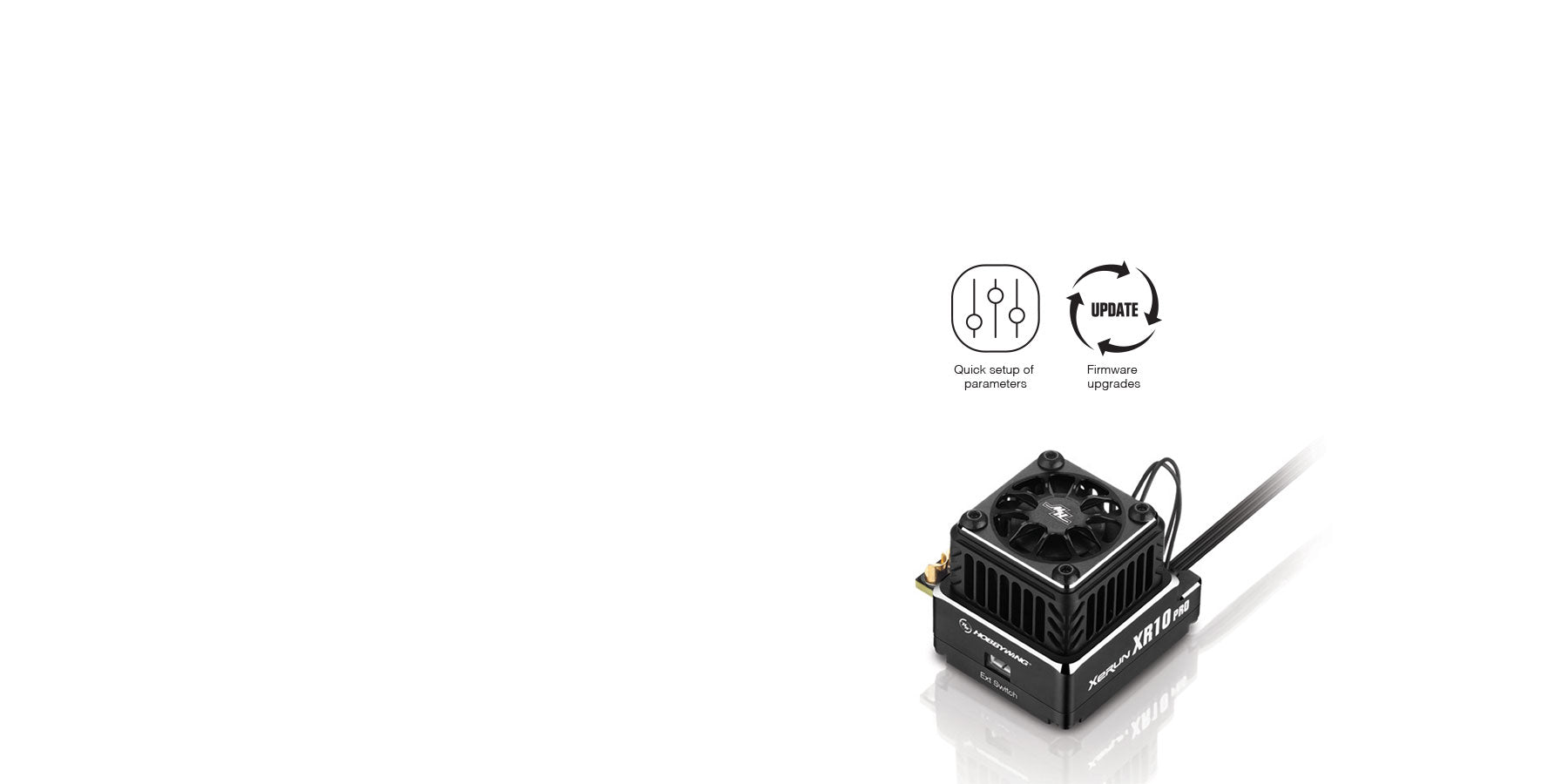

Seamless Connectivity Seamless Connectivity

Used with the OTA wireless device and your smart device, you can unlock the true potential of your tuning abilities. View data logs, check real-time data and adjust any and all parameters of your ESC.

OTA Programmer

ID	Stealth	Elite
P/N \| SKU	30112613	30112617
FFD Technology*	Yes	No
Cooling fan part number	30860108	30860109
Duel capacitors	Included	Included
Decals	Included	Included
Secondary Extended power switch ( Purchase separately)	Yes	Yes

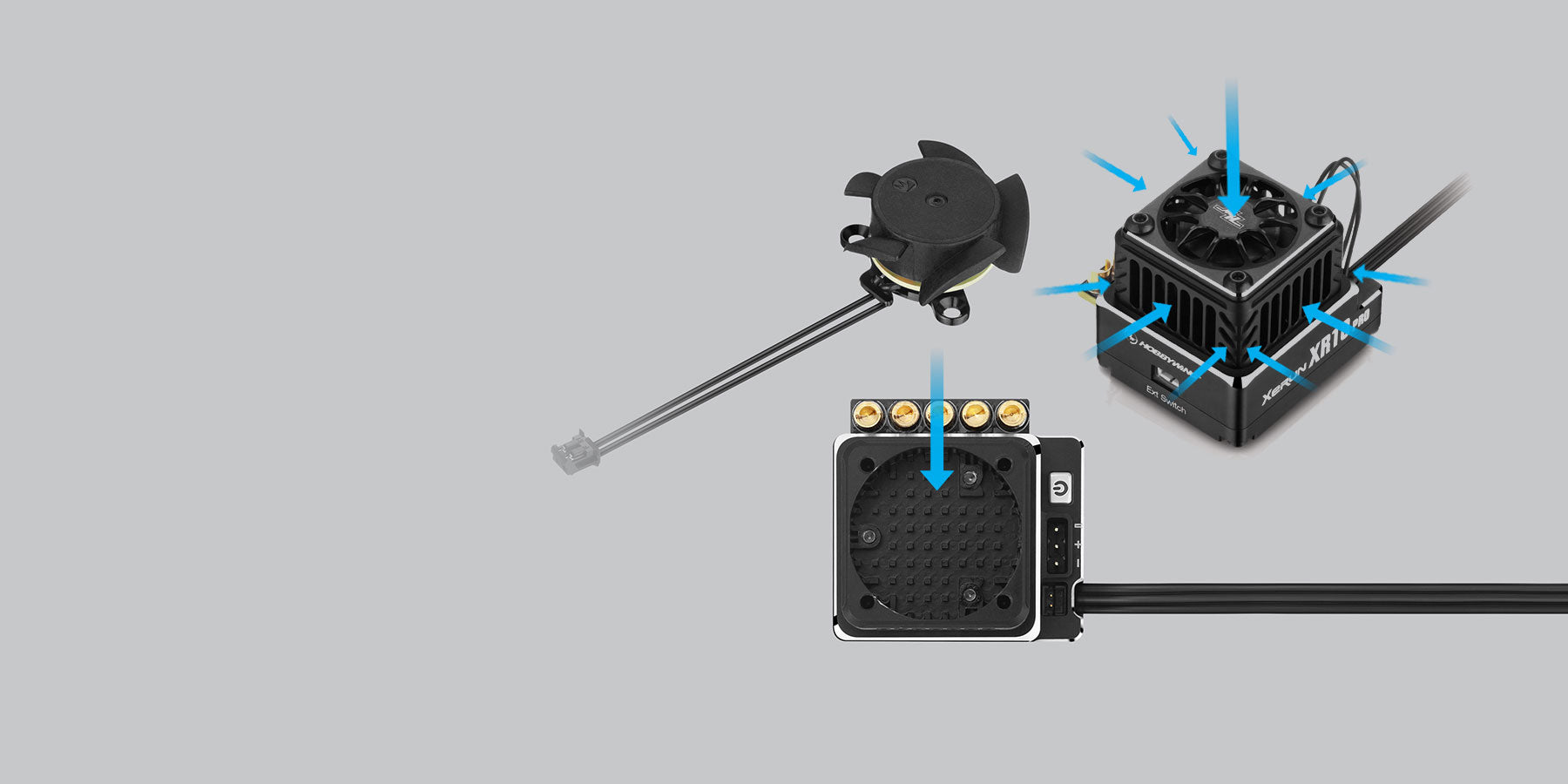

*FFD=Frameless Fan Design

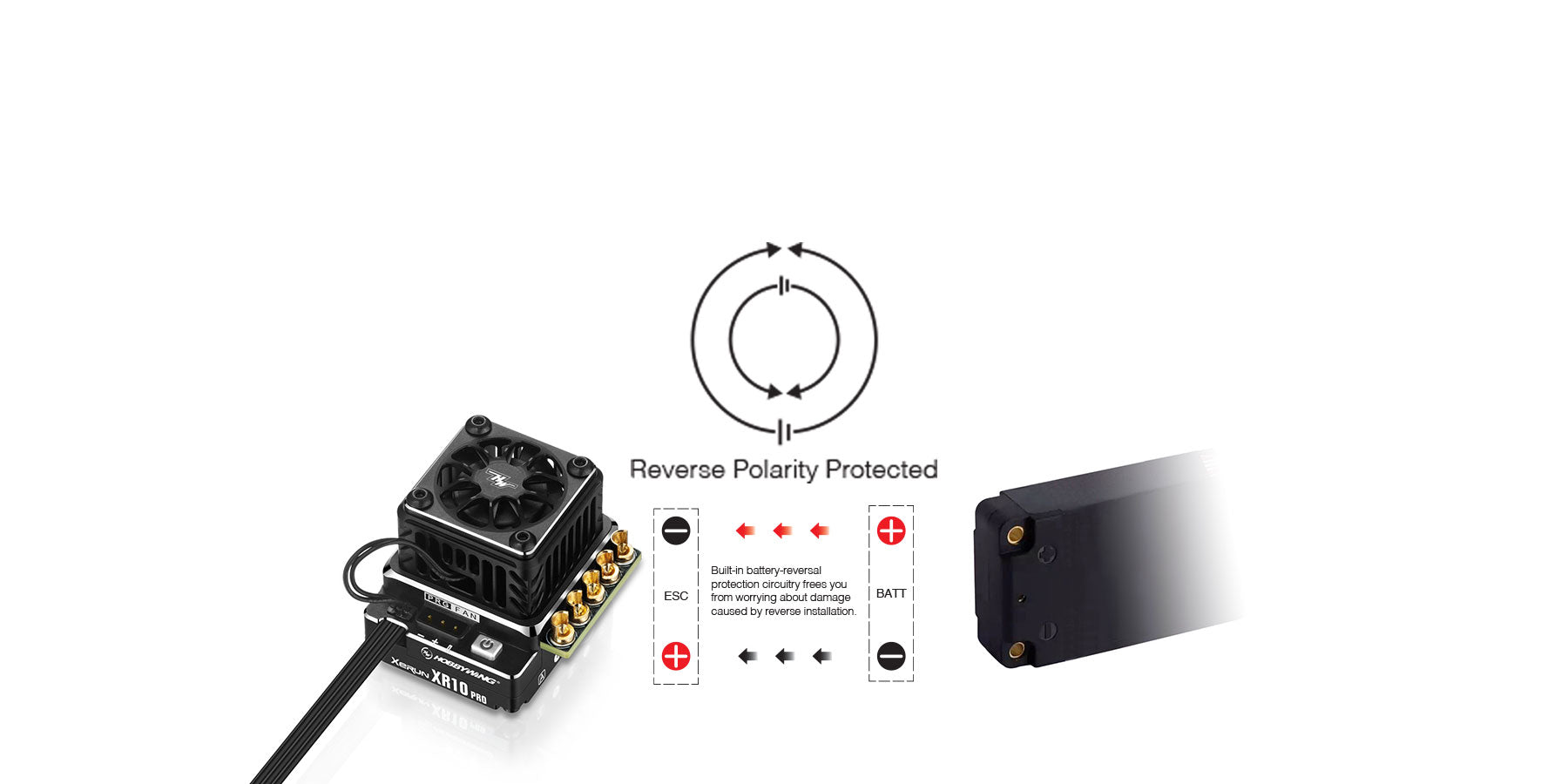

IMPORTANT NOTE: Although XR10 PRO G2 ESC is equipped with a built-in-reversed polarity protection feature, the external standard cap pack will still be damaged if reverse polarity does occur. For full protection, recommend using the HOBBYWING Non-polarity Capacitor module (purchase separately)

Specification

Wire gauge:	13 AWG Lightweight Ultra-flex (2) power wires & (3) Phase wires
Application	1/10th Touring car & Buggy racing, 1/10th drift car & F1
Cont./Peak Current	160A/1200A
Input Voltage	2S LiPo/4-6S Cell NiMH
BEC Output	BEC voltage of 5-7.4V
Programming device	LCD program boxOTA programmer
Firmware	LCD Program box via USB software (PC only)OTA (iOS / Android)
Size & Weight	37.5x30.9x32.5mm (w/Fan&Fan Shroud)
Weight	(Stealth 52.64g w/o wires) (Elite 50.21g w/o wires)
Motor spec recommendation	Touring Car T≥4.5T / Buggy: T≥5.5T
