XROTOR ESC for Multicopters

XRotor
[See below]

XRotor PRO

XRotor Micro (Racing)

4 in1 ESC

FASTER

Our special core program for multi-rotor controllers and maximum refresh frequency reaches up to 621 Hz.

BETTER COMPATIBILITY

Specially optimized firmware for excellent compatibility with multi-rotor motors.


EASY TO USE

Highly intelligent and adaptive default settings meet almost all applications.
The operation is greatly simplified making flying more enjoyable.

Multiple protections

Low-voltage cutoff protection, thermal protection, and throttle signal loss protection all make the ESC more reliable.

10A Mini XRotor 10A XRotor 20A XRotor 40A XRotor 50A
Application* 250 less
Drone Racing
250 Class
Quadcopter
330/450 Class
Quadcopter
550/650 Class
Quadcopter
Over 650 Class
Quadcopter
Cont.Current
10A 10A 20A 40A 50A
Peak Current (10s) 15A 15A 30A 60A 75A
BEC NO NO NO NO NO
Input 2-3S LiPo

2-3S LiPo

3-4S LiPo

2-6S LiPo

2-6S LiPo
Timing enable Timing
(High/Intermediate)

Timing
(High/Intermediate)

Timing
(High/Intermediate)

Timing
(High/Intermediate)

Timing
(High/Intermediate)

Size

44.2x12.2x9.2mm

36.5 x 16.4 x 4.1mm

52.4 x 21.5 x 7mm

68 x 25 x 8.7mm

48 x 30 x 15.5mm
Weight 6.5g (0.23oz) 6.5g (0.23oz) 14g (0.49oz) 26g (0.92oz) 46g (1.63oz)

$9.99
Order Now

Available for pickup
Check authorized dealer

$9.99
Order Now

Available for pickup
Check authorized dealer

$15.49
Order Now

Available for pickup
Check authorized dealer

$21.49
Order Now

Available for pickup
Check authorized dealer

$MP
Order Now

Available for pickup
Check authorized dealer

Note: The "Typical Application" in the above form only refers to quadcopter (with 4 motors). When the ESCs are installed on multi-Rotors with 6/8/16 motors, the applicable axle distance can be larger than the value listed in the above form.

Compatibility Chart

Compatibility Test Result of Motors and XRotor ESC

HOBBYWING ESC is designed and built with confidence

Compatibility Test Result of Motors and XRotor ESC
Motor Brand

Motor Model

KV

Test Conditions Compatibility Test
Result
Propeller Voltage
HLY
(HengLiYuan)
4822 690 1238/1340 4S LiPo Passed
390 1238/1240 6S LiPo Passed
4225 610 1238 4S LiPo Passed
390 1238/1447 6S LiPo Passed
SunnySky V3508 580 APC1238 4S LiPo Passed
X4112S 400 1447/1550 4-6S LiPo Passed
485 1447/1550 4-6S LiPo Passed
X4108S 380 1447/1550 4-6S LiPo Passed
480 1447/1550 4-6S LiPo Passed
600 1447/1550 4S LiPo Passed
X2212 980 1047 3S LiPo Passed
V2216 900 1047 3S LiPo Passed
X4110S 400 1238/1550 4-6S LiPo Passed
Crazy Motor 5008 335 1555/1655 6S LiPo passed
Feiyue 5008 340 17-18 inch 6S LiPo Passed
DualSky XM5015 390 1550 6S LiPo Passed
XM5010 700 1450 3S LiPo Passed
4010 880 1150 3S LiPo Passed
T-Motor 3506 650 1238/1340 3S LiPo Passed
3510 430 1340/1550 6S LiPo Passed
4014 330 1550 6S LiPo Passed
3508 380 1340/1550 6S LiPo Passed



PROFESSIONAL SERIES

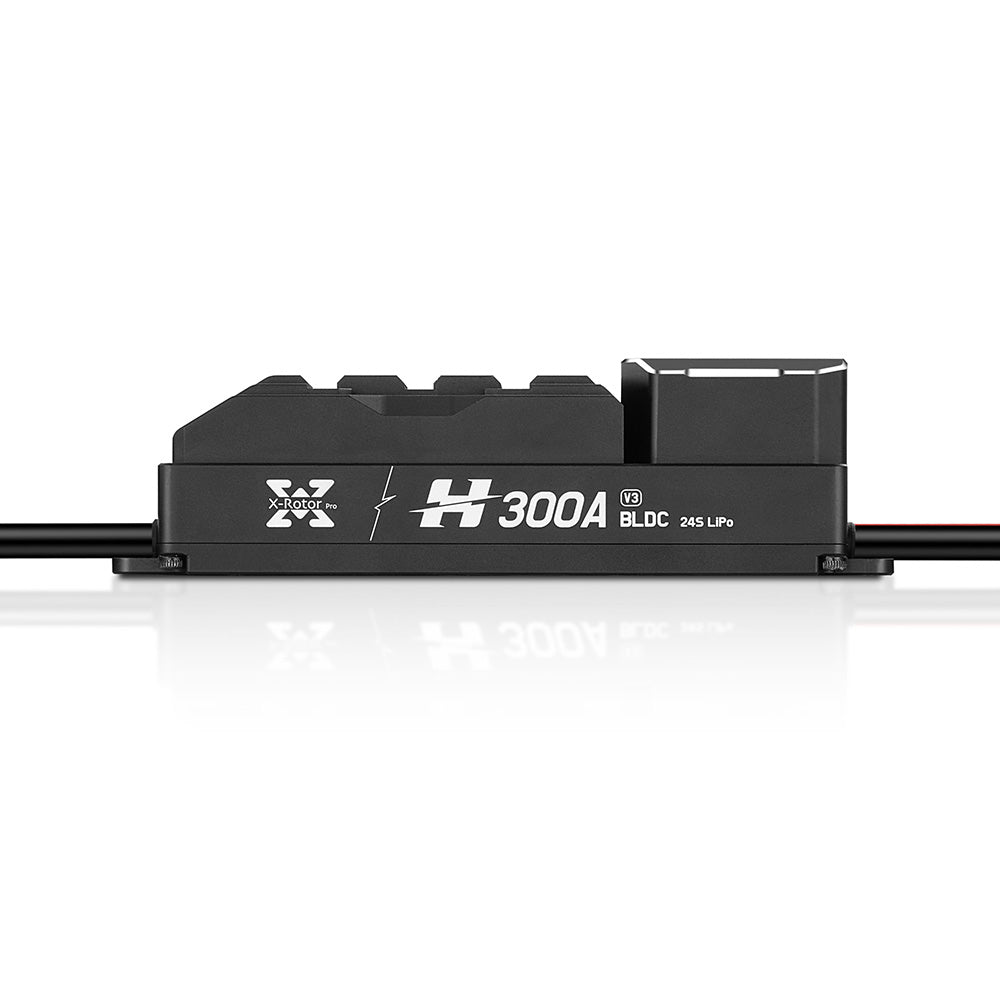

XROTOR PRO ESC
