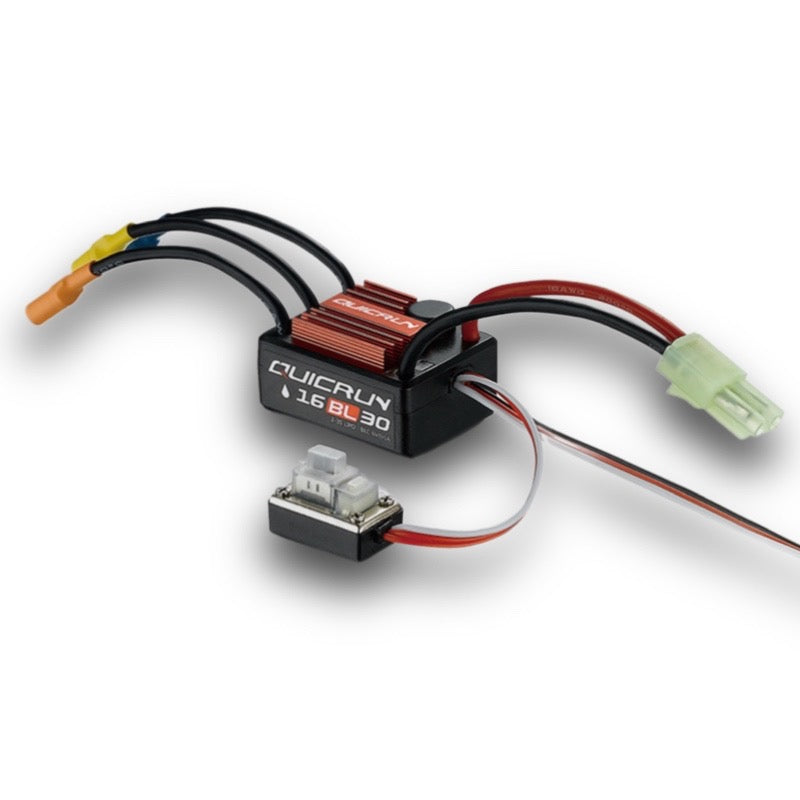

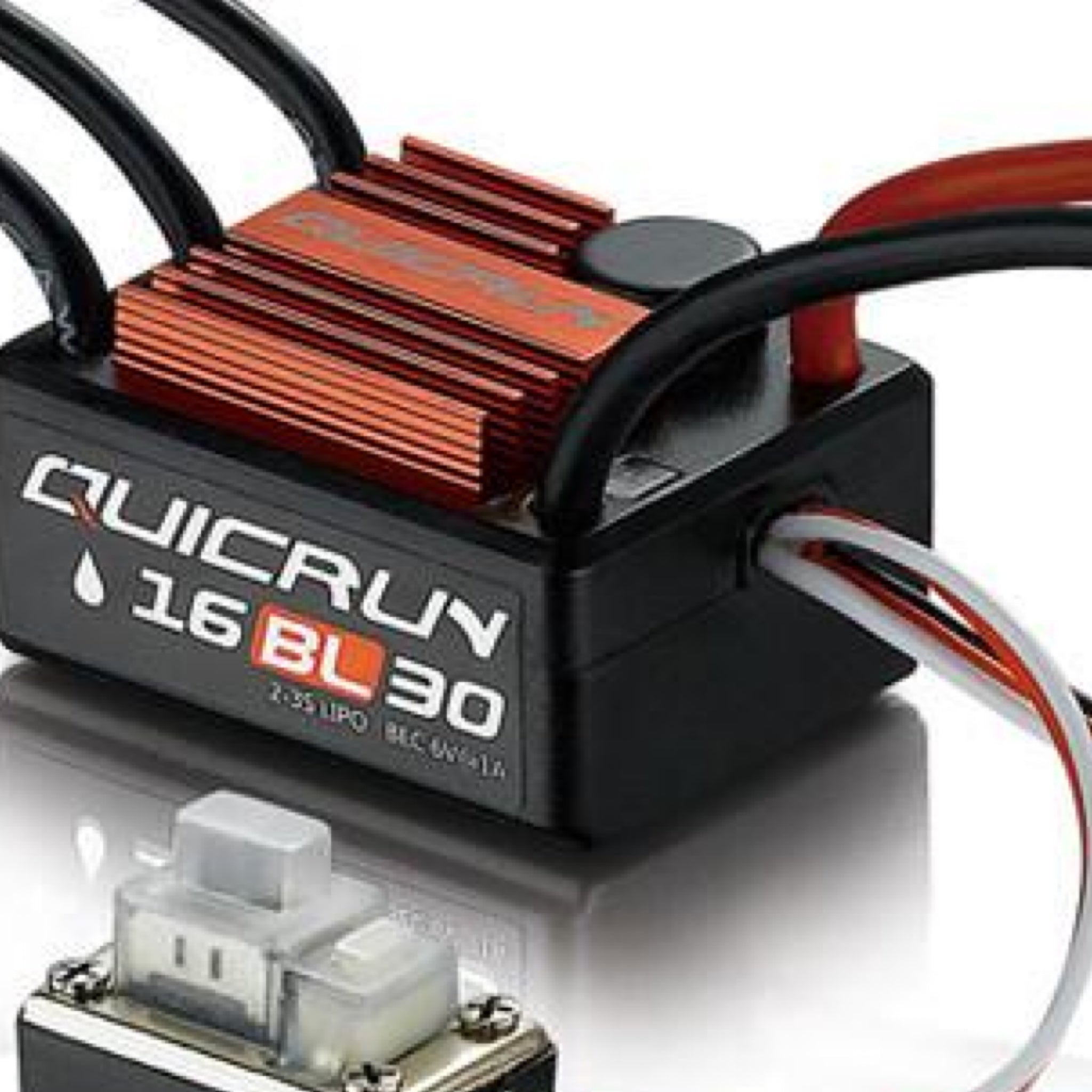

QUICRUN 16BL30 ESC (2S-3S)

QUICRUN 16BL30 ESC (2S-3S)

$24.99
Web special $24.99 | MRSP $32.00
Free Shipping available*

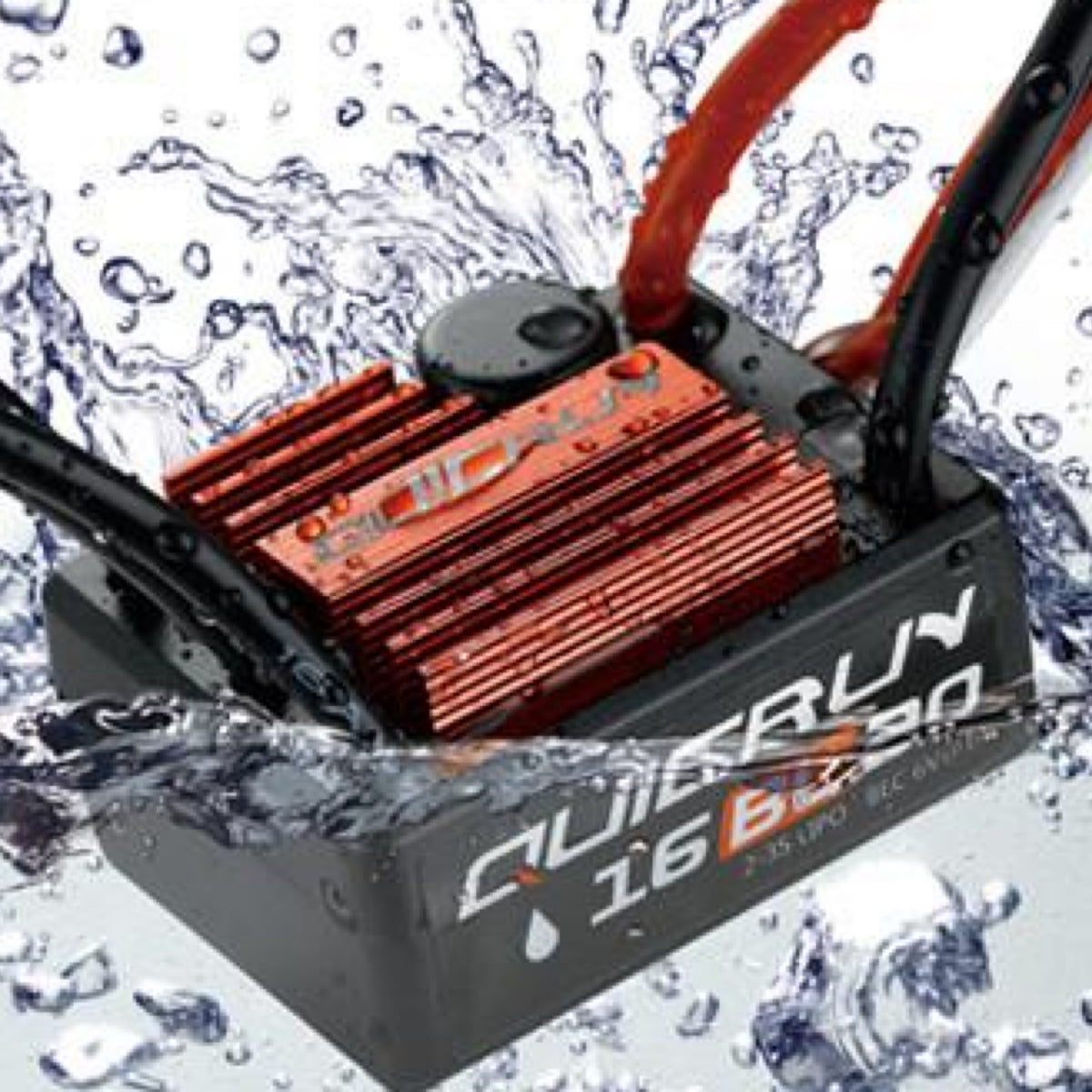

Waterproof and dustproof for all weather races.
Please make sure to uninstall the cooling fan before using this ESC in water.
Clean and dry it soon after use to avoid rusting the connectors.

  • External programming port is easily connected to the LED Program Card (purchase separately) when setting the ESC.
  • Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment.
  • 9 steps of acceleration (/punch) adjustment from “soft” to “Very aggressive” to fit different kinds of models, tires and tracks.
  • Multiple protections: Low voltage cut-off protection / Over-heating protection / Throttle signal loss protection / Motor lock-up protection.
  • One-button (the “SET” button on the ESC) sets the ESC. All parameters easily reset to factory default settings.
  • Compatible with optional device ---- the portable Digital LED Program Card, especially convenient for outdoor use.
  • Risk Free a 180 day limited warranty in North America.
Model / SKU
QUICRUN-WP-16BL30 /  30105030001
Cont./Peak Current/ Resistance
30A/180A/0.002Ω
Motor Type Supported Sensorless Brushless Motor
Car Applicable 1:18 & 1:16 On-road/Off-road/Buggy/Monster
Motor Limit For 2S LiPo or 6 cell NiMH:
1. On-road: 2435-size or smaller motor with the KV<8000
2. Off-road/Buggy/Monster: 2435-size or smaller motor with the KV<5000

For 3S LiPo or 9 cell NiMH:
1. On-road: 2435-size or smaller motor with the KV<5500
2. Off-road/Buggy/Monster: 2435-size or smaller motor with the KV<3500
Battery
4-9 Cell NiMH
2-3S LiPo
BEC Output 6V/1A (Linear Mode)
Size/ Weight 36(L)*28(W)*16(H) / 38g
External Program Port Not Available
Working voltage of Fan No cooling fan

Parameter List of QUICRUN 16 (WP-16BL30)

*letters in blue in the form indicate the factory default settings

Programmable Items Option
1
Option
2
Option
3
Option
4
Option
5
Option
6
Option 7 Option 8 Option 9
1. Running Mode
Note 1
Fwd/Br Fwd/Rev/Br Fwd/Rev
2. Drag Brake Force 0% 5% 10% 20% 40% 60% 80% 100%
3. Low Voltage Cutoff Disable 2.6V
/Cell
2.8V
/Cell
3.0V
/Cell
3.2V
/Cell
3.4V
/Cell

4. Start Mode (Punch) Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7 Level 8 Level 9
5. Max. Brake Force 25% 50% 75% 100% Disable
6. Max. Reverse Force 25% 50% 75% 100%
7. Initial Brake Force =Drag brake force 0% 20% 40%
8. Throttle Range 6%
(Narrow)
9%
(Normal)
12%
(Wide)

9. Timing
deg
3.75
deg
7.5
deg
11.25
deg
15.0
deg
18.75 deg 22.5 deg 26.25 deg

Note 1: Fwd=Forward, Rev=Reverse, Brk=Brake





180 day Warranty Available through the HW Authorized Dealer Network in North America
For more information: http://www.falconsekido.com/pages/rma



Optional devices
 Paired with QuicRun 2435 SL Brushless  Motor
 Customize your ESC with a Digital LED Program Card
 Manual Download
