30903026
IMPORTANT: To ensure your safety in the North American region, please proceed with your order first. Afterward, submit the Product Release Form.Your order will not be shipped without the completed release form.
If the ESC comes with CAN functions, CAN digital throttle may need to be adapted and configured specifically by the flight controller and the Hobbywing CAN protocol. In this case, you need to obtain the agreement from HOBBYWING, flight control manufacturer and/or any other agencies necessary.
Learn more > Datasheet, Manual download >
| Model | XRotor Pro H130A 14S |
| Digital Throttle | Support(CAN) |
| Double Throttle Signal | Support(CAN and PWM) |
| Continuous Current | 60A (Good heat dissipation) |
| Specification | 130A |
| BEC | None |
| Voltage | 6-14S（18-63V |
| Weight without Wires | 148g |
| Size | 96.5*46*23.5mm |
| Throttle Signal Frequency | 50-500Hz |
| IPC | Optional |

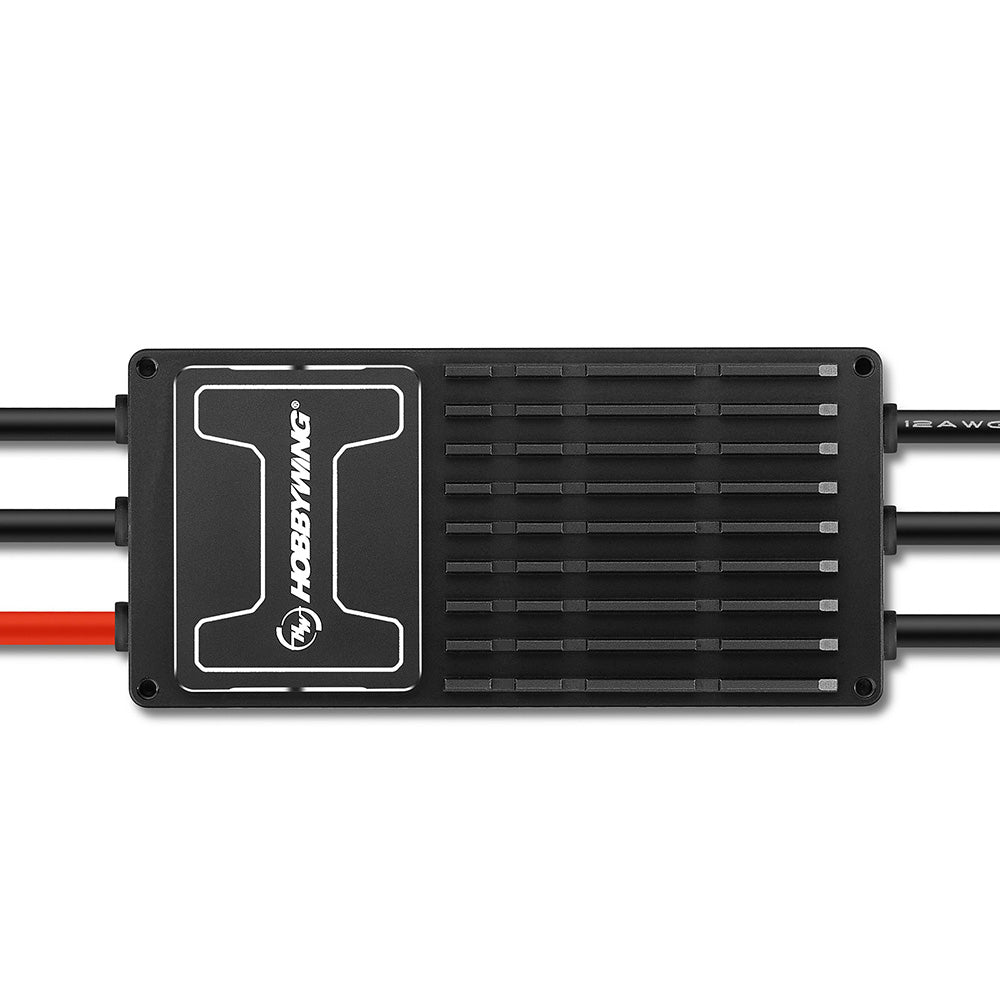

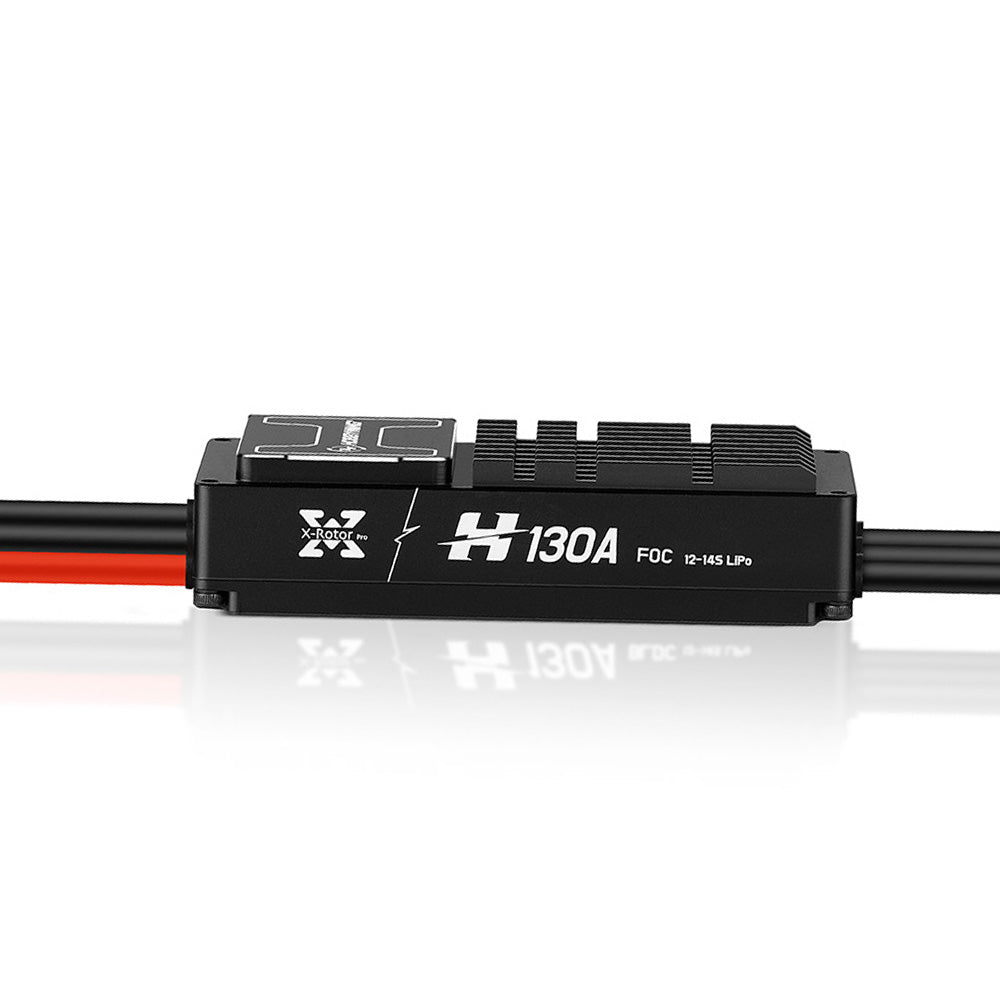

Brushless ESC with BLDC drive, specialized designed for UAV drones. BLDC performs better compatibility and stability in driving. It employs the industry’s first CAN + 485 dual-bus throttle design, further enhances anti-interference and ensures safe flight. IPC (Intelligent Propeller Control) version is optional, allowing flexibly stop propellers at a preset or fixed angle. The ESC control circuit and power circuit are powered separately to ensure power supply stability and quick response. Supports CAN & PWM dual throttle, better resist external electromagnetic interference. New Generation Black Box Feature, allowing millisecond-level data recording and fast data & fault analyzing.
