MSRP $30.00

QR1060 Suitable for 1:10 SPORT, BOAT, TANKER

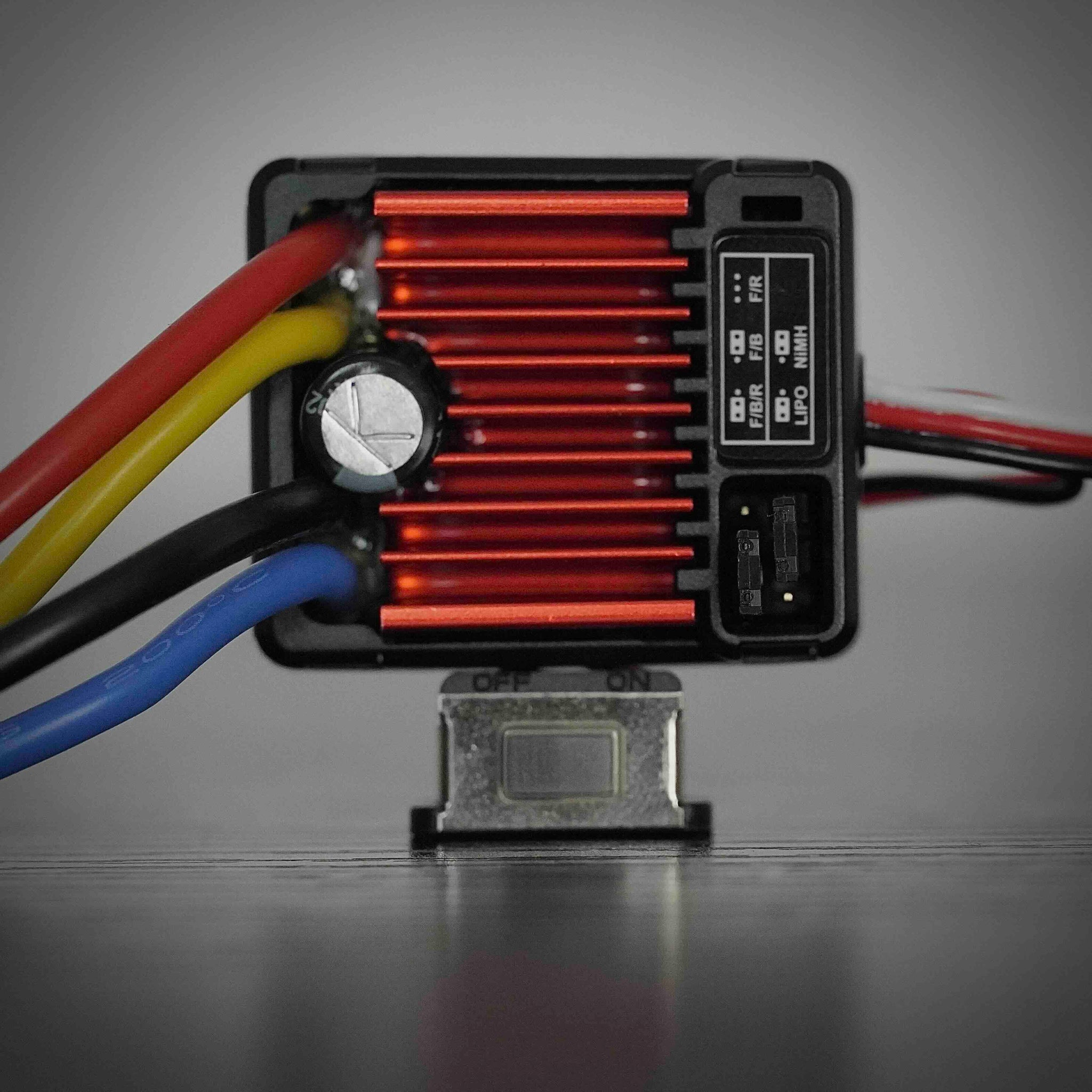

This ESC is designed for 1/10th scale touring cars, buggies, short-course trucks, monster trucks, trucks, crawlers, and tanks.
  • Water-proof and dust-proof, suitable for all weather races.
  • Small in size, with a built-in capacitor module.
  • Fwd/Rev/Br running mode fits various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse).
  • Great current endurance capability.
  • Great built-in BEC output capacity.
  • Automatic throttle range calibration, easy to use.
  • ESC parameters are easy to set with jumpers.
  • Multiple protections:
    • Over Voltage Protection
    • Low voltage cut-off protection for battery
    • Over-heating protection
    • Throttle signal loss protection.
  • Risk-Free manufacturer's limited warranty available through Authorized Dealers in North America
    Model / SKU
    Fwd Cont. Current /Peak Current/ Resistance
    Rev Cont. Current /Peak Current/ Resistance 30A/180A/0.002Ω
    Motor Type Supported Brushed Motor
    Car Applicable 1:10 Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank
    Suitable Battery
    Brushed Motor Limit
    For 2S LiPo or 6 cell NiMH:
    540 or 550 Size Motor: ≥12T,
    Or RPM<30000 @7.2V

    For 3S LiPo or 9 cell NiMH:
    540 or 550 Size Motor: ≥18T
    Or RPM< 20000 @7.2V
    BEC Output 3A/6V (Switch Mode)
    PWM Frequency 1KHz
    Size/ Weight 35.5(L)*32.18(W)*18(H) / 39g
    Running Modes Forward/Reverse/Brake, Forward/Brake, Forward/Reverse
    Cooling Fan No need
    Input Connection T-Plug

    Available through the Authorized Dealer Network in North America

    Download : User Manual of QuicRun 1060 Brushed ESC >
