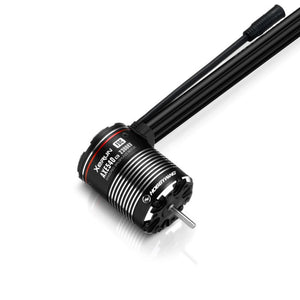

XERUN AXE R2 FOC brushless motor for Rock Crawler

SKU: 30401253
$175.00 $124.99

Free shipping available

PACKED WITH TECHNOLOGIES

AXE R2 FOC Motors p/n (sku)
AXE540L-1400KV- R2 FOC Sensored Brushless Motor 30401253
AXE540L-2100KV- R2 FOC Sensored Brushless Motor
30401254
AXE540L-2800KV- R2 FOC Sensored Brushless Motor
30401255
AXE550-3300KV-  R2 FOC Sensored Brushless Motor
30401256

Features
  • Word's First FOC brushless system for Rock Crawler.  Field-Oriented Control for Super Linearity & High Torque & Extreme Silence.
  • The chip-type magnetic encoder inside the motor guarantees consistency between three phases’ signals and always outputs the pure and precise signals indicating the rotor position.
  • "POLARITY PROTECTION".  Yes. it is not a typo.  No more "oops" moment. The chip-type magnetic encoder inside the motor guarantees consistency between three phases’ signals and always outputs the pure and precise signals indicating the rotor position.
  • The waterproof and dust-proof design (*IP67 standards) allows the AXE brushless power system to be used in all weather & track conditions without any issue of damage caused to the system from water or dust. Damage to the vehicle caused by water, mud, or conditions should be monitored closely when running in muddy, wet, or adverse conditions.
  • Intelligent torque output & speed closed-loop control for easy control, and consistent motor RPM under all loads.
  • The motor with 4 poles & 12 magnets, featuring Hobbywing’s “staggered pole” patent has zero cogging effect & torque ripple. It can work smoothly at low speeds. This greatly improves
  • the manoeuvrability of rock crawlers at low speeds.
  • The new sensor harness, which features the plug-and-screw design, has a silicone O ring inside. The new design & O ring not only provide a firm connection between motor and ESC but solve the “waterproof” challenge for sensor ports.



Specifications

XERUN AXE 540L  Motor-Specification
540L FOC motor
KV 1400kv 2100kv 2800kv
p/n 30401253
30401254
30401255
LiPo 2-3S 2-3S 2-3S
No-load Current (A) 1.7 2.7 3.6
Weight (g) 211g 212g

213g

  • 1/10-1/8th FOC brushless motor (Patented)
  • Waterproof,
  • Motor Diameter: 36.0mm(1.42in)
  • Length (mm): 57.8mm(2.28in)
  • Shaft Diameter: 3.175(0.125in)
  • Pole: 4
XERUN AXE 550 R2 Motor-Specification
550 G2 FOC Motor
KV 3300kv Motor
p/n
30401256
LiPo 2-3S
No-load Current (A) 4.7
Weight (g) 247g
  • 1/10-1/8th FOC brushless motor (Patented)
  • Waterproof,
  • Motor Diameter: 36.0mm(1.42in)
  • Length (mm): 63.8mm(2.51in)
  • Shaft Diameter: 5(0.197in)
  • Shaft Length: 16mm(0.63in)
  • Pole: 4



IMPORTANT:

Xerun AXE series is a closed-system: Due to its advanced technology, HOBBYWING Xerun AXE R2 Motor works exclusively with Xerun AXE R2 ESC.
