HOBBYWING Brushless Technology
HOBBYWING Brushless Technology
Mega MAX Motor series
EZRUN MAX Motor | 70125 SD | 56113 SL | 5687 SL | 4985 SL |
p/n | 30402850 | 30402900 | 30402550 | 30402950 |
KV rating | 560KV | 800KV | 1100KV | 1650KV |
Scale | 1/4-1/5 | 1/5th | 1/5th | 1/6th |
Pole Count | 4 | 4 | 4 | 4 |
LiPo Cell | 8-12S | 3-8S | 3-8S | 3-6S |
No-load Current(A) | 3.6 | 3.2 | 4.1 | 5.4 |
O.D.(mm) | 70 (2.760in) | 56(2.20in) | 56(2.20in) | 49(1.92in) |
Length (mm) | 125 (4.921in) | 113(4.45in) | 87(3.43in) | 86.5(3.41in) |
Shaft Diameter (mm) | 8mm (0.315in) / 30mm (1.181in) | 8.0(0.31in) | 8.0(0.31in) | 5.0(0.20in) |
Weight (g) | 1995g | 1210(42.68oz) | 916(32.31oz) | 587(20.71oz) |
Applications | 1/4th, 1/5th Heavy-duty Off-road, Truck. | 1/5th RC Vehicles | 1/5th Light-duty & 1/6th RC Vehicles | 1/6th & 1/7th RC Vehicles |
MAX8 Motor series - Sensored, IP64 waterproof
Model |
EZRUN 4268 SD | EZRUN 4278 SD |
PN | 30402751 | 30402800 |
Pole | 4 | 4 |
KV(No-load) | 2500KV | 2250KV |
R. (Ω) | 0.0065Ω | 0.0048Ω |
Current No-load(A) | 4.8A | 5.0A |
Motor D.&L(mm) | 42mm / 68mm | 42mm / 78mm |
Shaft D.&L of the projecting part(mm) | 5mm / 18.5mm | 5mm / 18.5mm |
LiPo(S) | 3-4S Lipo | 3-6S Lipo |
W (g) | 355g (no wire) | 455g (no wire) |
Applicable | 1/8 off-road,1/10 truck、crawler | 1/8 truck, crawler |
Best match with | MAX 8 G2 ESC | MAX 8 G2 ESC |
P/N | Model | KV | LiPo | No-load Current (A) |
Shaft Diameter Length (mm) |
Poles | Weight |
30402606 | Ezrun 3652 G3 | 5400KV | 2S |
≤6.8A | φ=3.175mm (0.125in) L=15mm (0.59in) |
4 | 227.1g |
30402605 | Ezrun 3652 G3 |
4100KV | 2S-3S | ≤5.0A | Same | 4 | 227.9g |
30402603 | Ezrun 3652 G3 | 3300KV | 2S-3S |
≤3.9A | Same | 4 | 228.3g |
P/N | Model | KV | LiPo | No-load Current (A) |
Shaft Diameter Length (mm) |
Poles | Weight |

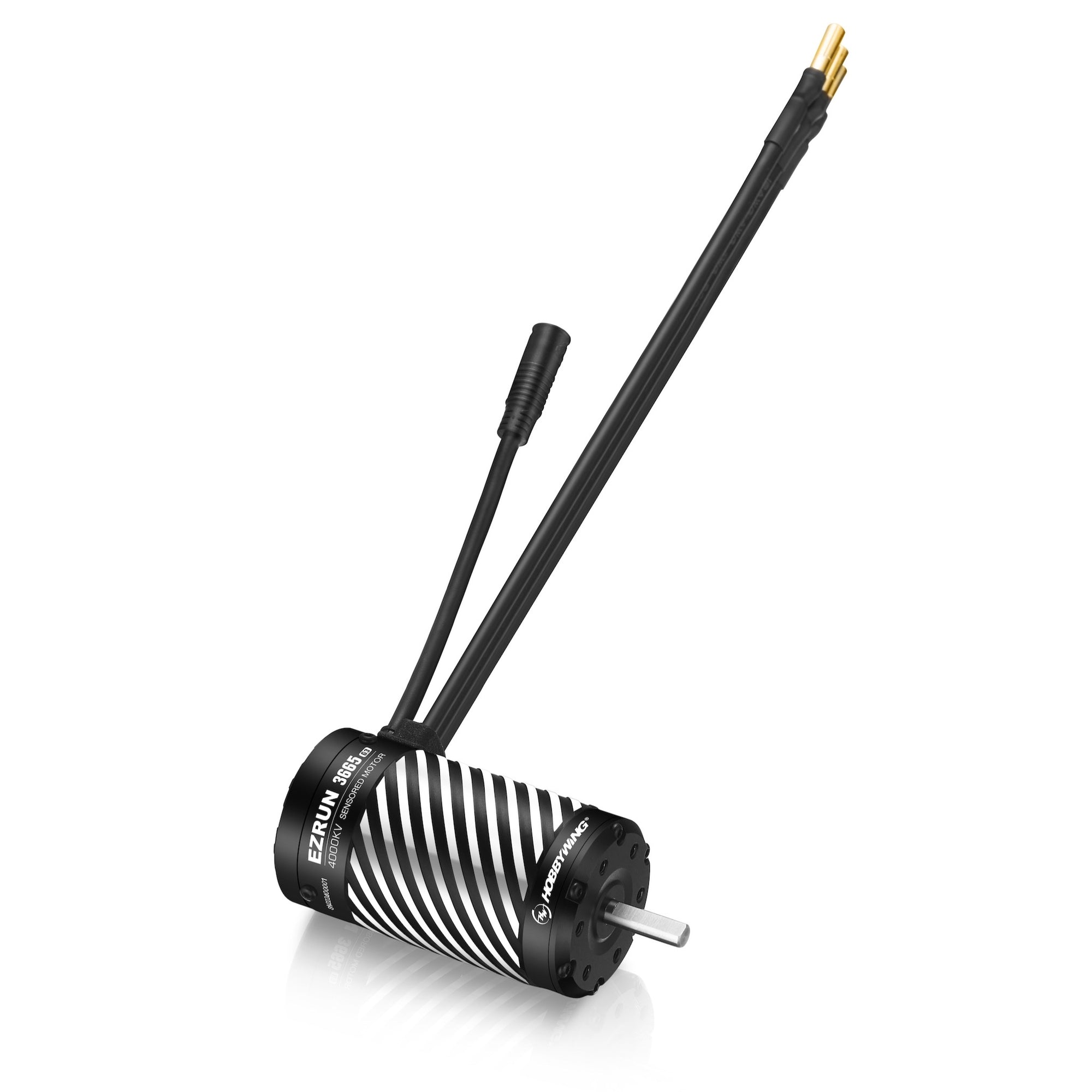

30402608 | Ezrun 3665 G3 | 4000KV | 2S-3S |
≤8.2A | φ=5mm (0.2in) | 4 | 297.2g |
30402607 | Ezrun 3665 G3 | 3200KV | 2S-3S |
≤7.1A | Same | 4 | 304.4g |
30402604 | Ezrun 3665 G3 | 2400KV | 2-4S | ≤5.2A | Same |
4 | 304.5g |
Ezrun Series | 3660 SL G2 | 3660 SL G2 | 3660 SL G2 |
KV | 3200 | 4000 | 4600 |
P/n | 30402650 | 30402651 | 30402652 |
LiPo | 2-3S | 2-3S |
2S
|
|
0.0083 | 0.0060 |
|
No-load Current |
4.9A | 5.7A | 7.2A |
Motor Diameter & Length |
Φ=36 / L=60 | Φ=36 / L=60 | Φ=36 / L=60 |
Shaft Diameter & Length |
Φ=5 / L=18.5 | Φ=5 / L=18.5 | Φ=5 / L=18.5 |
Steel Pinion Gear-Included |
25T 5MM 48P
|
23T 5MM 48P
|
21T 5MM 48P
|
Pole | 4 | 4 | 4 |
Weight (g) | 262 | 268 | 262 |
Ezrun Series | 3652 SL G2 | 3652 SL G2 | 3652 SL G2 |
KV | 3300 | 4000 | 5400 |
P/n | 30402600 | 30402601 | 30402602 |
LiPo | 2-3S | 2-3S |
2S
|
|
0.0083 | 0.0060 |
|
No-load Current |
4.3A | 5.2A | 7.2A |
Timing (deg.) | 0 | 0 | 0 |
Motor Diameter & Length |
Φ=36 / L=52 | Φ=36 / L=52 | Φ=36 / L=52 |
Shaft Diameter & Length |
Φ=3.17 / L=18.5 | Φ=3.17 / L=18.5 | Φ=3.17 / L=18.5 |
Motor Shaft Sleeve-Included | 3.17mm<5mm |
|
|
Pole | 4 | 4 | 4 |
Weight (g) | 218 | 216 | 217 |
