ESC | XR10 Stock Spec 1S |
XR10 Stock Spec 2S |
p/n | 30112751 | 30112401 |
Current | Continuous: 80A Burst: 380A |
Continuous: 80A Burst: 380A |
Battery | 3-4S NiMH 1S LiPo |
5-7 cells NiMH/NiCd 2S LiPo |

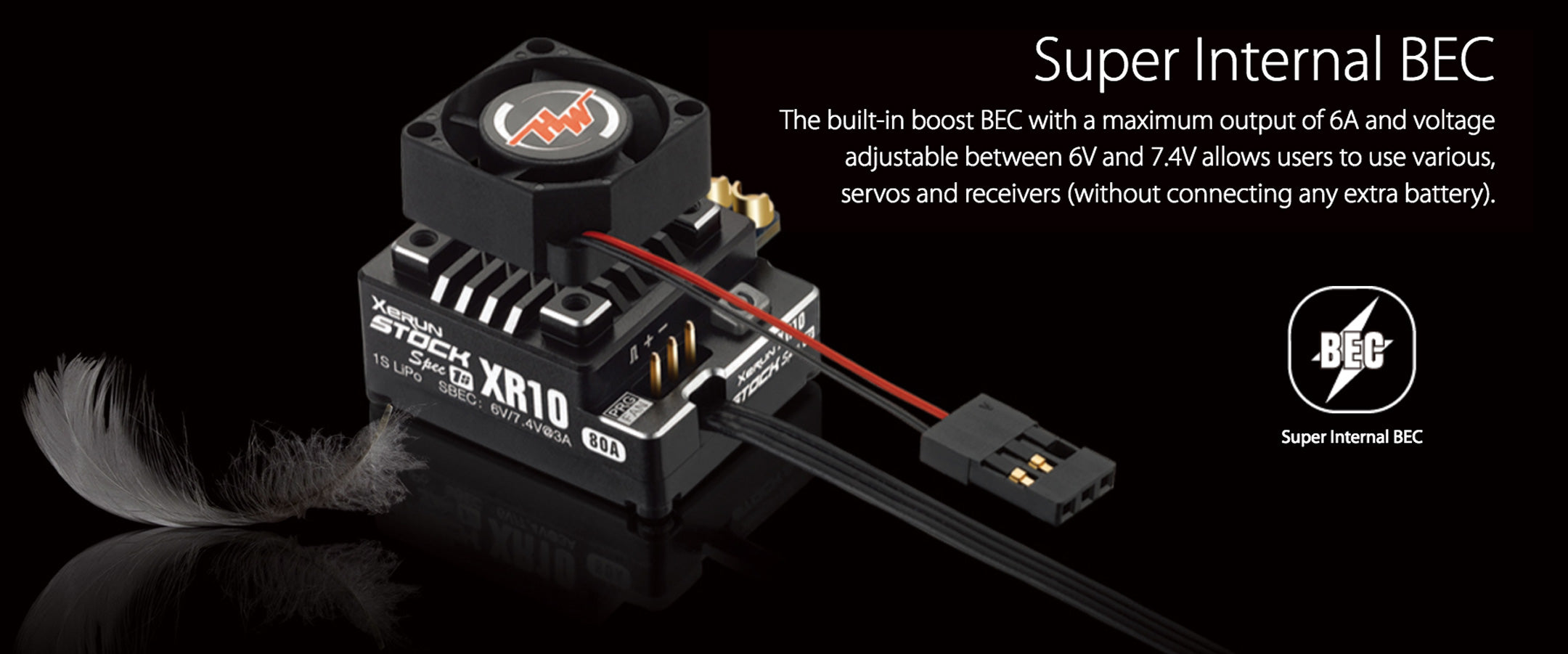

Built-in BEC | 6V/7.4V Adjustable, Continuous Current of 3A (Switch-mode) |
6V/7.4V Switchable, Continuous Current of 3A (Switch-mode) |
Motor Supported | Sensored and sensorless brushless motors | |
Suitable Motor | 3650 Motors 1S LiPo T≥10.5T |
3650 Motors 2S LiPo 1/10 Touring Cars ≥10.5T, 1/10 Buggy≥13.5T |
Application | STOCK class 1/10, 1/12 1S application |
STOCK class of 1/10th Touring Car & Buggy Racing |
Cooling Fan | Powered by the stable BEC voltage of 6V/7.4V (20x20x8mm) |
Powered by the stable BEC voltage of 6V/7.4V (20x20x8mm) |
Wires | 14AWG-200mm | 14AWG-200mm |
Size | 31.6 x 25.8 x 16.2mm | 31.5x25.6x16.1mm |
Weight** | 23.5g | 28g |
* For 7-9 cells NiMH/NiCd or 3S LiPo, the standard cooling fan must be changed to 12V high voltage fan. ** Weight is w/o wires, cooling fan |
