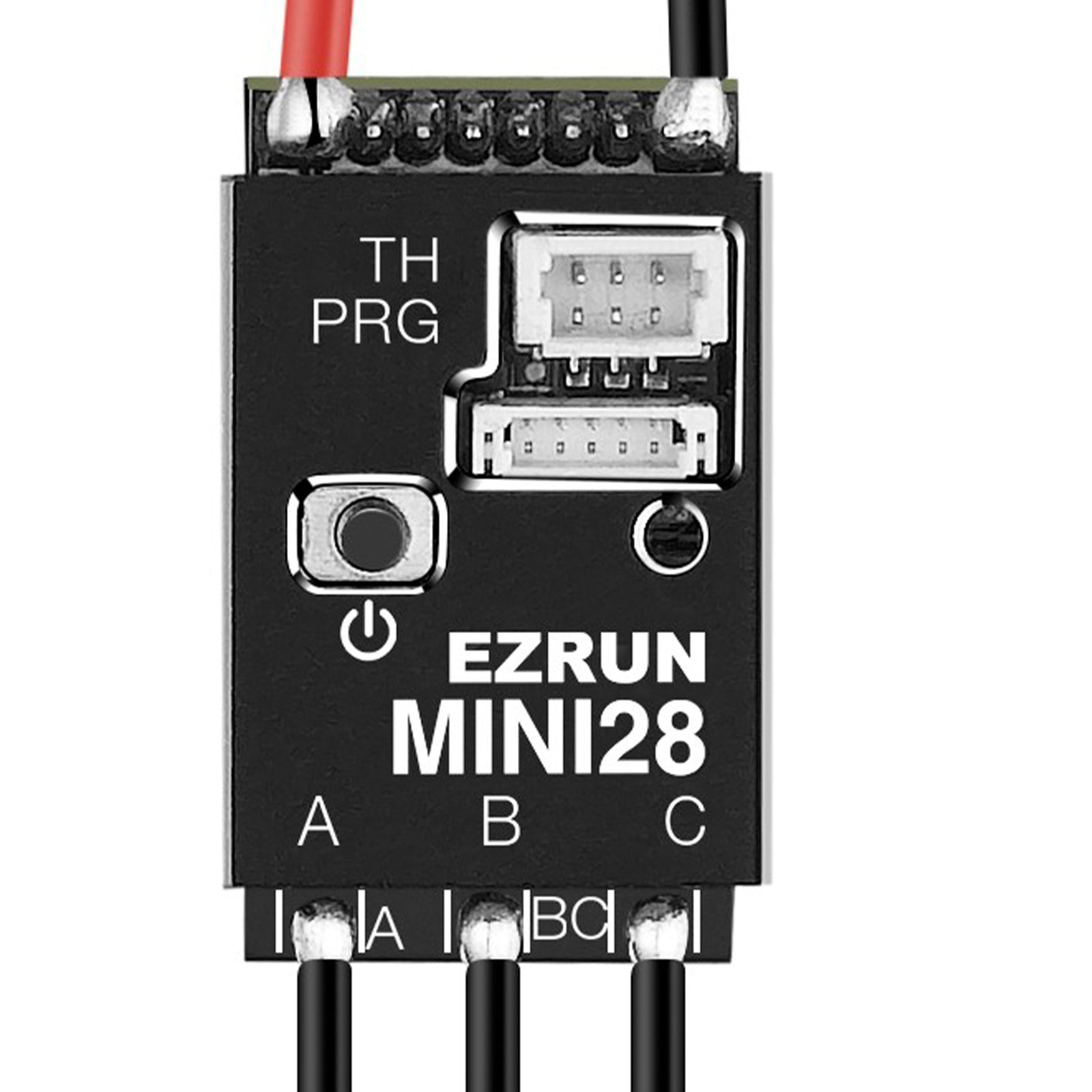

EZRUN Mini28 System for 1/28-1/27th scale car



Specifications

Product Title EZRUN Mini28 ESC
Part number 30101300
Technology Brushless Sensored
Waterproof No
Cont./Peak Current 30A/80A
Input Voltage 2S Lipo
BEC Output 6V/7.4V @Max 3.5A
Wires & Connectors Input Wires: 20AWG-55mm *
Output Wires: 22AWG-80mm *
Size & Weight 22.7x14.2x11.8mm | 5g (without wires)
Applications
Motor: 1626 Size Motors
Vehicle: 1/28th&1/27th
ESC Programming LCD G2 Program Box
OTA Programmer
Throttle Wire
Firmware Upgrade Supported
Manual download

User Manaual Ezrun Mini28th (PDF)

Product Brochure

> Ezrun Mini28 Leaflet-en

*All the wire length above is the original length not the length you see from the outside.


EZRUN 1626 Motor
Model Ezrun 1626-3500KV Ezrun 1626-5000KV Ezrun 1626-6500KV
PN 30402653 30402654 30402655
Pole 2 2 2
KV 3500KV 5000KV 6500KV
No-load Current(A)
0.4A 0.5A 0.6A
Input Voltage 2S 2S 2S
Diameter/ Length(mm) 16 16 16
Shaft Diameter/ Length (mm) 26 26 26
Applications 1/28th Mini 1/28th Mini 1/28th Mini
Weight 18g 18g 18g
EZRUN 1626 Motor
Model Ezrun 1626-3500KV Ezrun 1626-5000KV Ezrun 1626-6500KV
PN 30402653 30402654 30402655
Pole 2 2 2
KV 3500KV 5000KV 6500KV
No-load Current(A)
0.4A 0.5A 0.6A
Input Voltage 2S 2S 2S
Diameter/ Length(mm) 16 16 16
Shaft Diameter/ Length (mm) 26 26 26
Applications 1/28th Mini 1/28th Mini 1/28th Mini
Weight 18g 18g 18g
EZRUN Mini28 ESC $79.99 USD $136.00 USD
Ezrun 1626 Sensored Motor $49.99 USD $71.00 USD
