30903027
IMPORTANT: To ensure your safety in the North American region, please proceed with your order first. Afterward, submit the Product Release Form.Your order will not be shipped without the completed release form.
If the ESC comes with CAN functions, CAN digital throttle may need to be adapted and configured specifically by the flight controller and the Hobbywing CAN protocol. In this case, you need to obtain the agreement from HOBBYWING, flight control manufacturer and/or any other agencies necessary.
Learn more > Datasheet, Manual download >

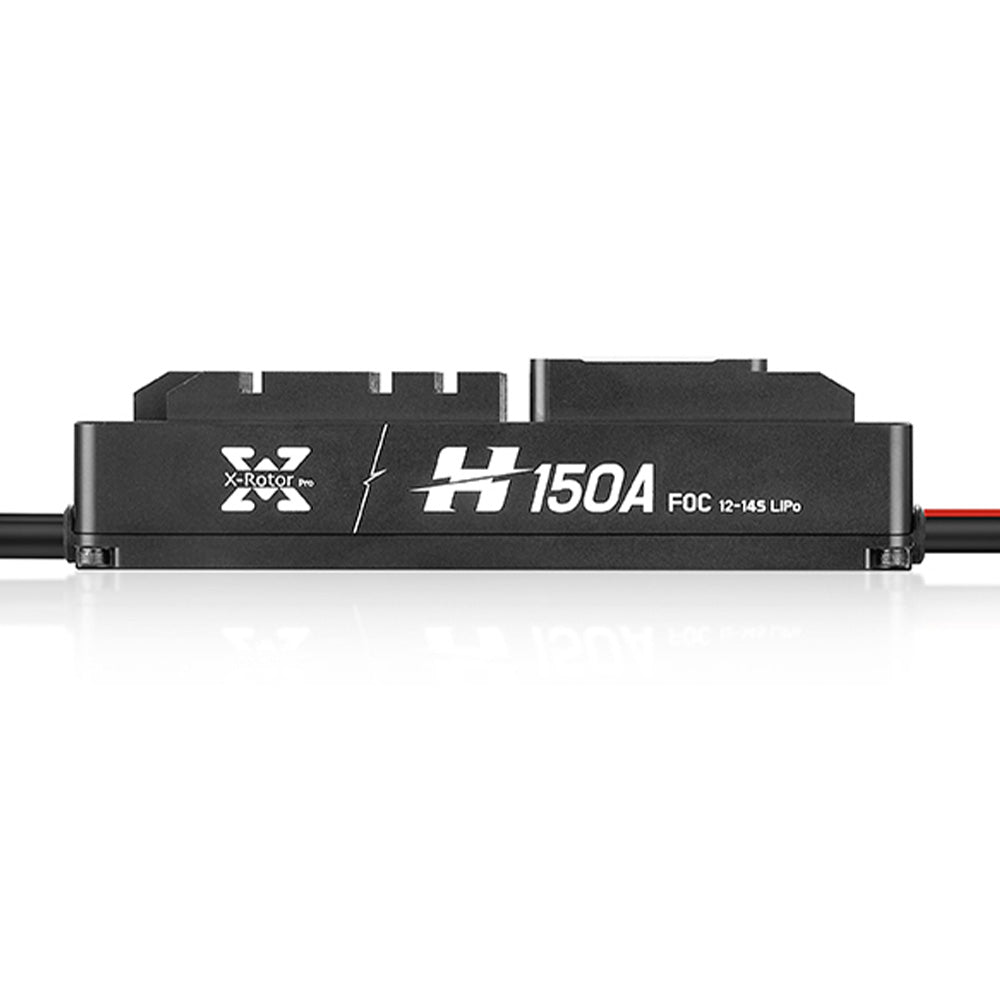

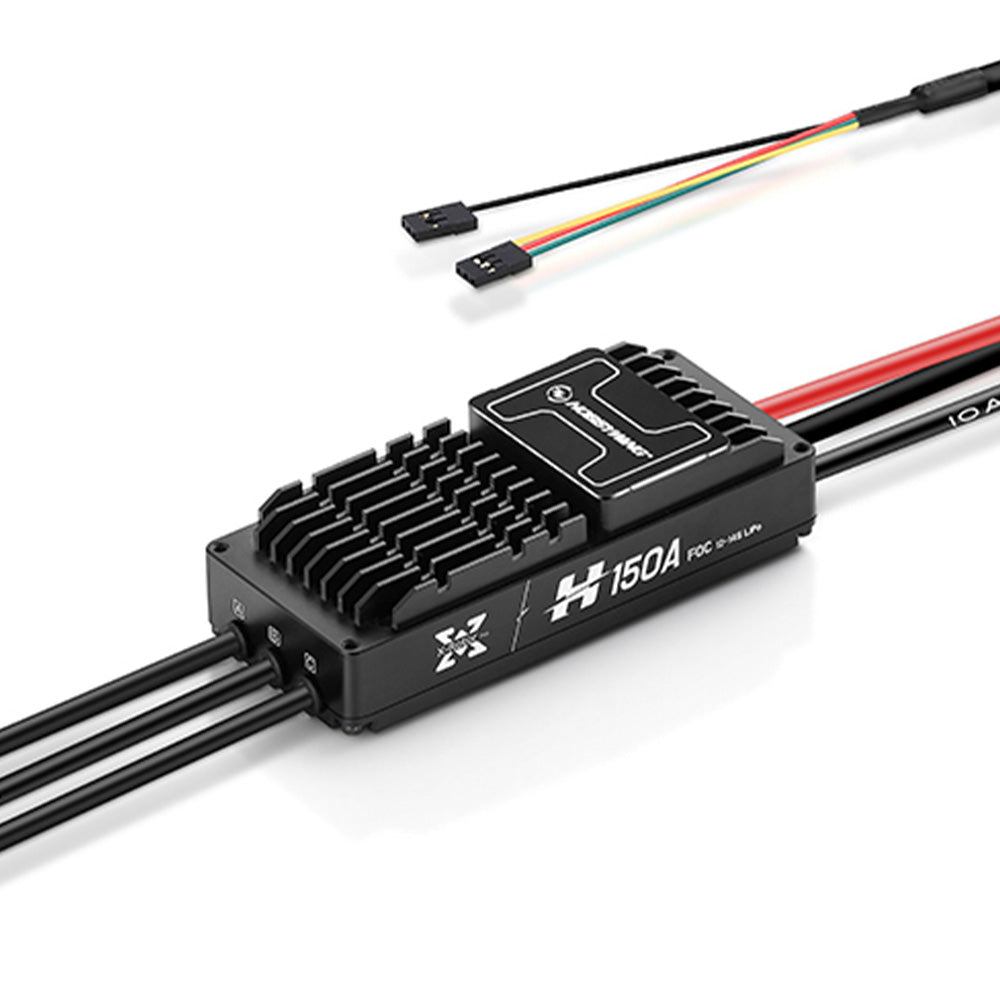

| Model | XRotor Pro H150A 14S FOC |
| Digital Throttle | CAN(Custom Serial port) |
| Double Throttle Signal | Yes(CAN) |
| Continuous Current | 60A (Good heat dissipation) |
| Specification | 150A |
| BEC | None |
| Voltage | 12-14S（44-60.9V） |
| Weight without Wires | 198g |
| Size | 116*49.4*29.6mm |
| Throttle Signal Frequency | 50-500Hz |
| IPC | Optional |
Brushless ESC for industrial UAV drones, featuring FOC driving, precise and efficient. Protection level IP55 (customizable IP67), working temperature -30~65°C. IPC (Intelligent Propeller Control) version is optional, allowing flexibly stop propellers at a preset or fixed angle. FOC Intelligent drive achieves higher efficiency, lower temperature, faster response, lower noise, lower interference, linear throttle, precise control, and kinetic energy recovery. Intelligent protection, fast fault analysis, ensuring safe flight.
