30417032
IMPORTANT: To ensure your safety in the North American region, please proceed with your order first. Afterward, submit the Product Release Form.Your order will not be shipped without the completed release form.
If the ESC comes with CAN functions, CAN digital throttle may need to be adapted and configured specifically by the flight controller and the Hobbywing CAN protocol. In this case, you need to obtain the agreement from HOBBYWING, flight control manufacturer and/or any other agencies necessary.
| Motor Size: | Φ58*H37.2mm |
| Weight: | 248g |
|
KV: |
275KV |
|
Battery: |
12S |
|
Recommended Thrust: |
2.5-3.5kg/rotor |
| Max Thrust: | 9.1kg/rotor |
| Max Power: | 2469W |
| Rated power Input / Output | 690W / 586.5W |
| Prop: | MP16x5.4″/ MP17x5.8″ |
| ESC: | XRotor Pro-H60A-14S |
| IPC Function: | No |

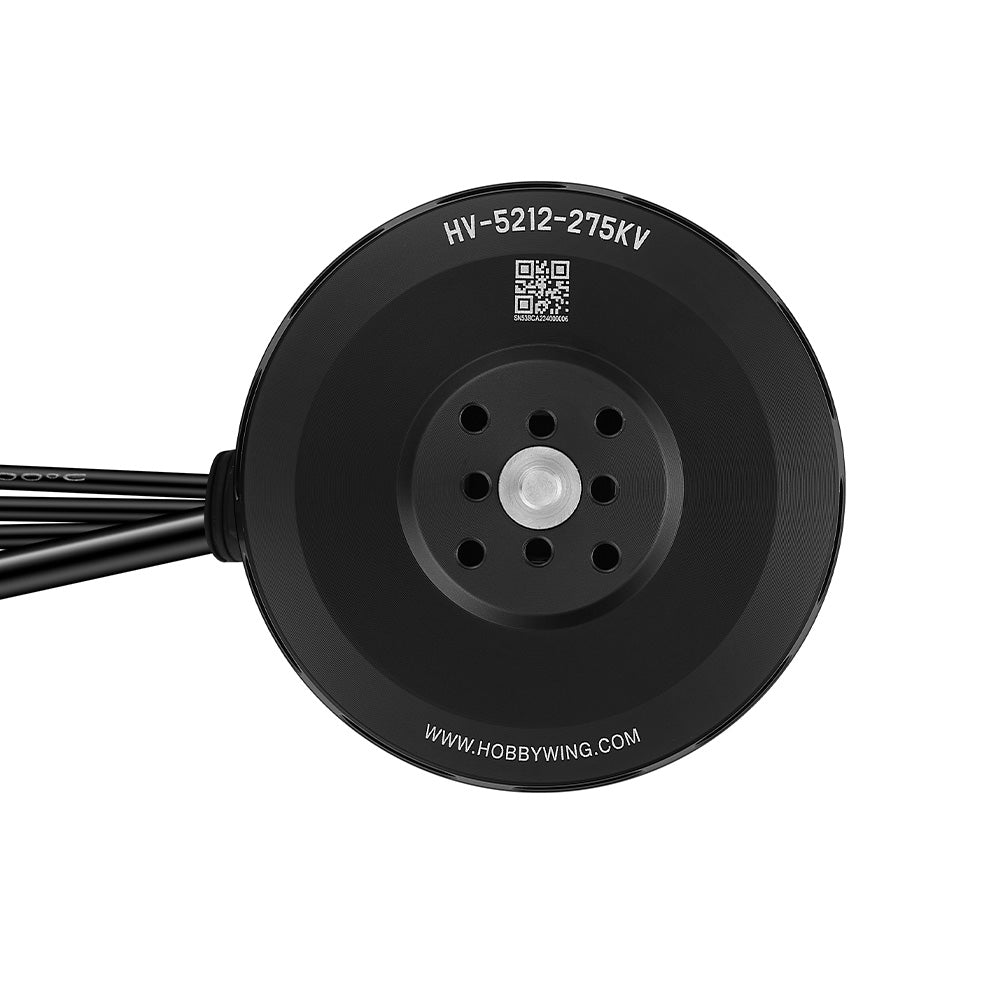

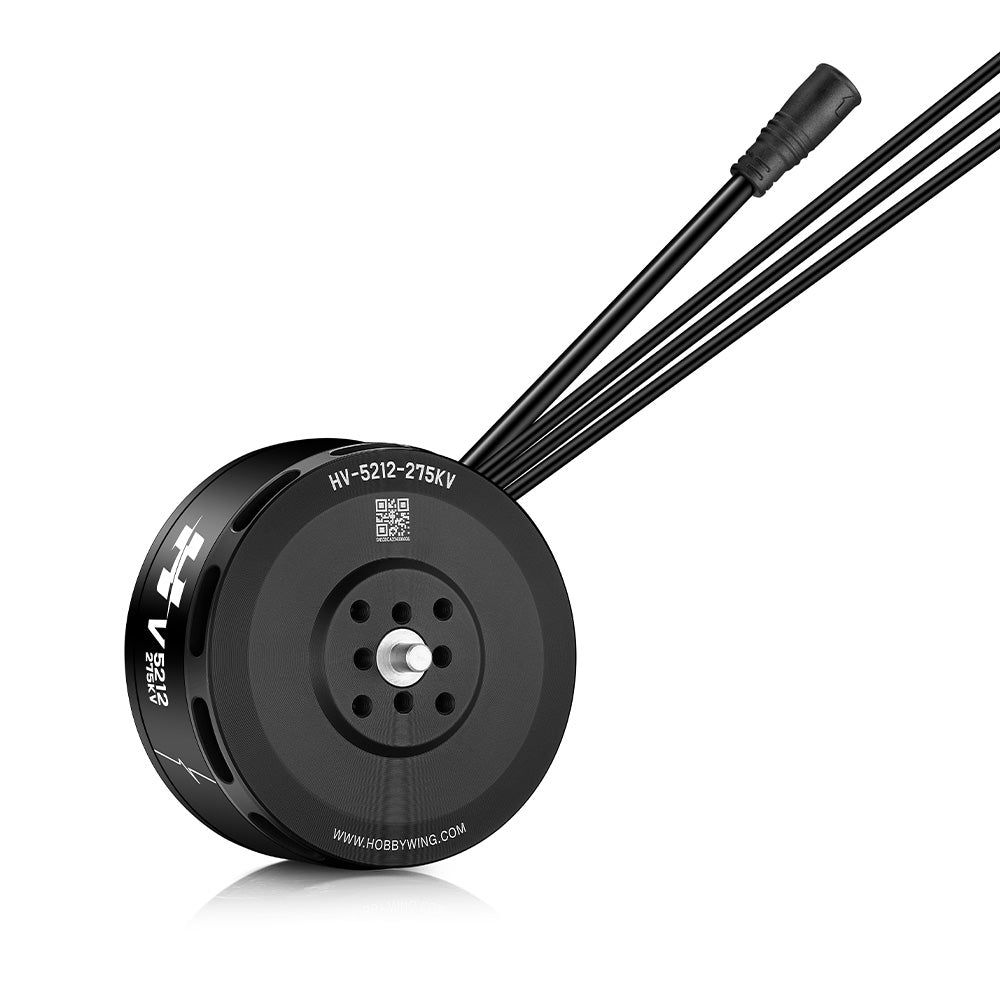

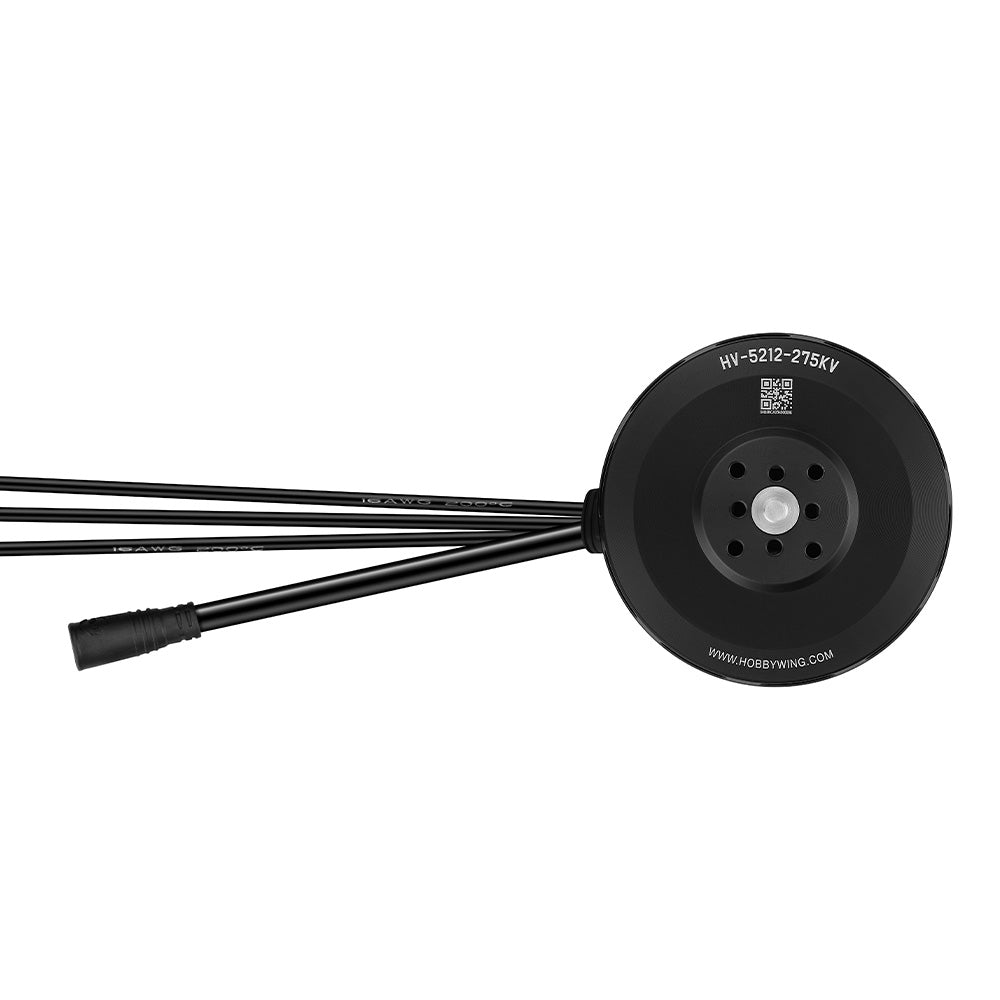

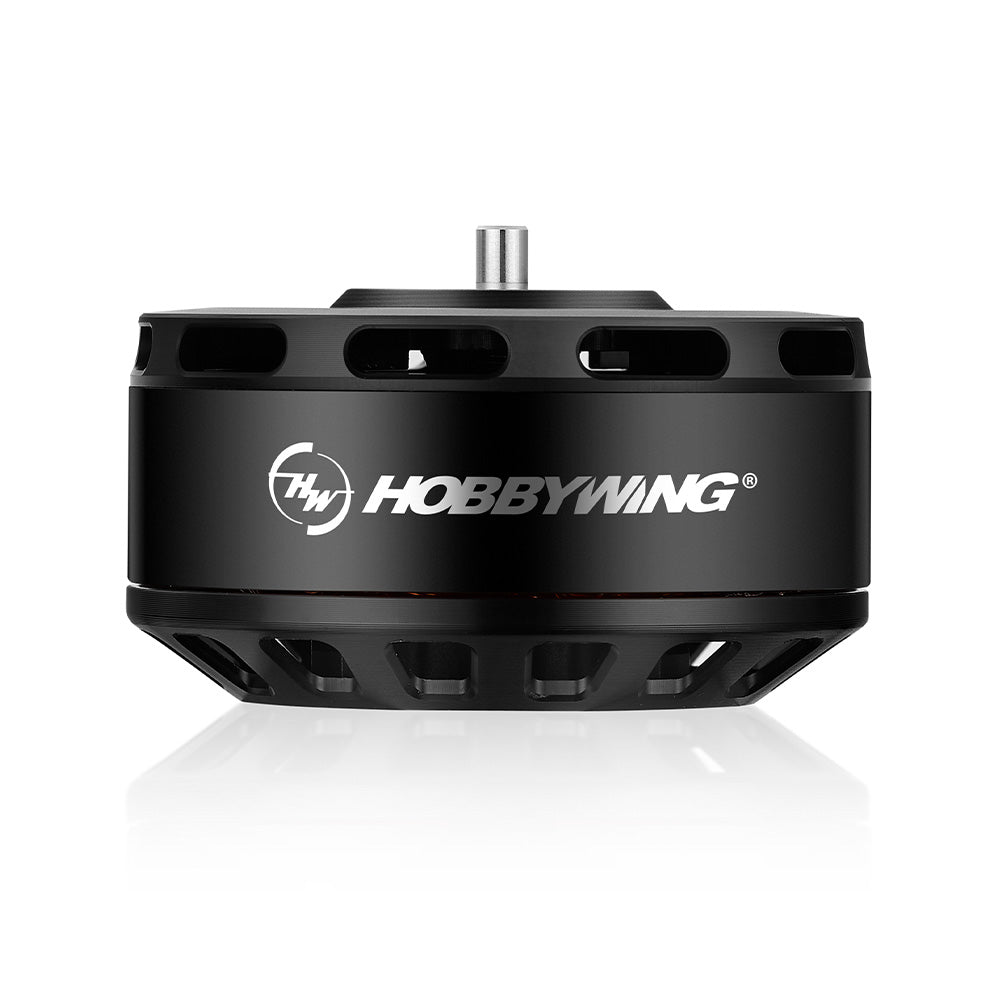

Designed for VTOL fixed wing drones, the V5212 motor achieves a maximum thrust of 9.1 kg with 16″-17″ propellers, resulting in an impressive thrust-to-weight ratio of 36:1 with weighing just 248g. This ensures powerful lifts for VTOL UAVs carrying heavy payloads with takeoff weights between 10-14 kg. Additionally, the V5212 motor delivers consistent, robust performance to withstand high-altitude and windy environments. Its capability and reliability support drone operators in confidently taking on complex missions.
