Hobbywing Technology
30417071

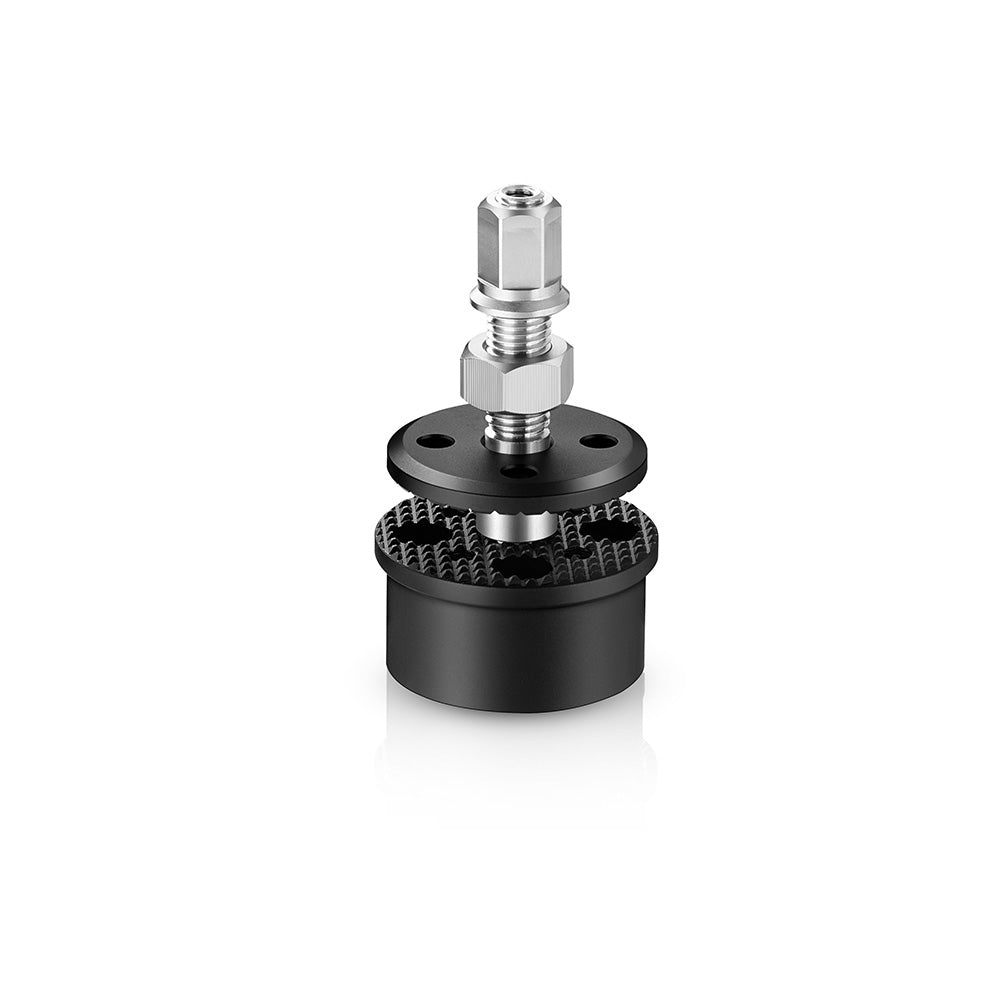

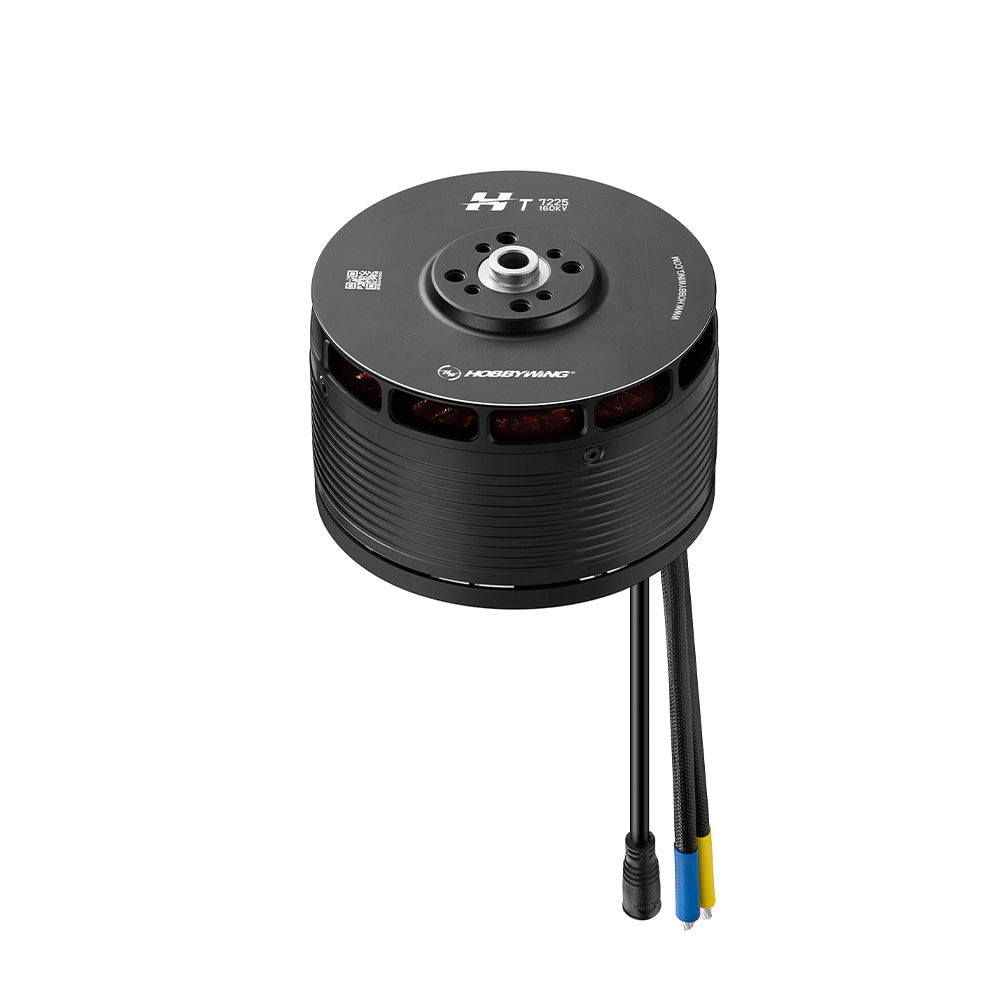

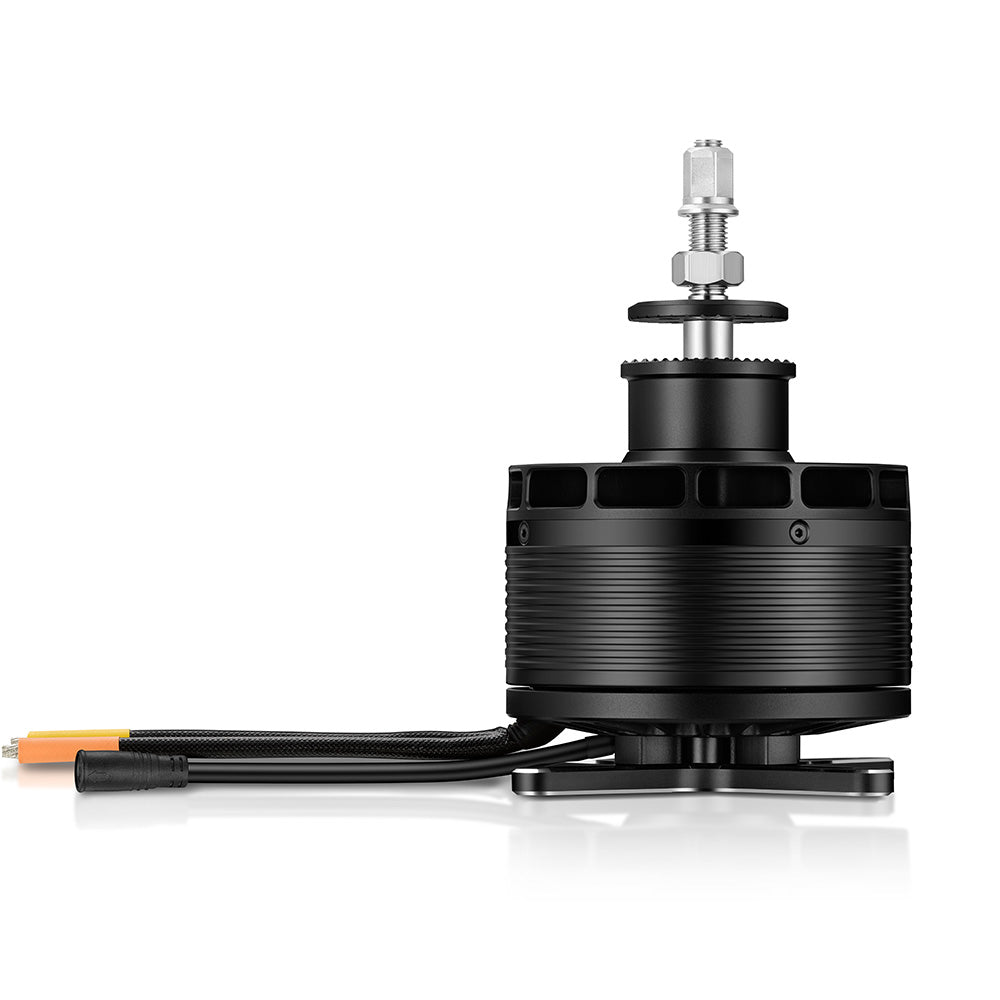

C7225 motor, designed for fixed-wing UAV cruise setups, provides up to a maximum thrust of 21.7kg per rotor with 24″ propellers, ideal for setup weighing 30 to 35kg at takeoff. The optional IPC version will allow you to flexibly adjust propeller stop position to reduce forward flight drag and increase flight time when matched with HOBBYWING IPC ESCs.
| KV | 160KV | 190KV |
| Motor Size: | Φ80.9*H62mm | Φ80.9*H62mm |
| Weight W/ wire: | 755g | 755g |
|
Battery: |
12S | 12S |
|
Max Thrust: |
21.7kg | 19.7kg |
| Takeoff weight of single: | 30~35kg | 30~35kg |
| Max Power: | 6377W | 6611W |
| Prop: | 24x12 | 22x12 |
| ESC: | XRotor Pro H200A 14S / XRotor Pro H130A 14S | XRotor Pro H200A 14S / XRotor Pro H130A 14S |
| IPC Function: | YES | YES |
