XRotor PRO 3100 Series Motors

Compare the XRotor PRO 3100 Series

Spec	XRotor PRO 3110	XRotor PRO 3115	XRotor PRO 3120
Available KV	900KV / 1250KV	650KV / 900KV *	700KV / 1000KV
Motor size	Φ37.2×H29.2mm	TBC	Φ37.2×H39.2mm
Stator size	Φ31×15mm	TBC	Φ31×15mm
Slot & pole	12N14P	TBC	12N14P
Recommended battery	6S LiPo	TBC	6S (1000KV) / 8S (700KV) LiPo
Max thrust	3.87kg (900KV) / 4.25kg (1250KV)	TBC	7.32kg (700KV) / 6.29kg (1000KV)
Max power	1686W (900KV) / 1969W (1250KV)	TBC	3086W (700KV) / 2930W (1000KV)
Weight (with wire)	100g	TBC	160g (700KV) / 158g (1000KV)
Wire	18AWG (900KV) / 16AWG (1250KV), 250mm	TBC	16AWG, 300mm
Recommended ESC	XRotor FPV G2 65A 4in1	TBC	G2 65A 4in1 (1000KV) / RTF 100A 4in1 8S Lite AT (700KV)
Shaft / mount	Φ5mm shaft · Φ19mm-4×M3	Φ5mm shaft · Φ19mm-4×M3	Φ5mm shaft · Φ19mm-4×M3

* KV options from factory listings. XRotor PRO 3115 specifications to be confirmed (TBC).

High Efficiency, Unlocking Extended Flight Potential

Featuring fully hand-wound windings with a high slot fill rate, 0.1mm low-loss stator core laminations, and strong arc-shaped magnets, the motor delivers higher efficiency, providing enhanced endurance for long-duration and complex filming missions.

Taking the 3115-900KV paired with a 10×5×3 propeller as an example, compared with motors of the same specifications from other brands:

Higher Efficiency

Resistance reduced by25%

Efficiency at 3kg thrust point enhanced by8%

Efficiency at 4.2kg thrust point improved by29%

*Note:Test data is obtained from HOBBYWING’s self-developed testing platform. Test results may vary slightly due to differences among sample batches.

Powerful Thrust, Meeting Higher Payload Demands

Delivering stronger power output, the motor maintains ample power reserve and flight stability whether carrying large imaging equipment or performing high-speed chase shots. It also meets the high thrust capacity requirements of industrial heavy-load applications and FPV racing competitions.

Powerful Thrust

3115-900KV paired with 10×5×3 propeller:

Maximum single-axis thrust reaches5.08kg

An increase of more than 21%+
compared with motors of the same specifications from other brands

Paired with HOBBYWING’s self-developed 10×5×3 carbon fiber propeller

Maximum thrust can be further increased to5.25kg

High Thrust-to-Weight Ratio, High Power Density

The newly designed high-power-density platform achieves a better balance between lightweight design and power output, combining agile control with robust power performance. It provides ample power reserves for complex flight scenarios such as dynamic tracking shots and high-speed maneuvers.

Compared to motors of the same specifications from other brands, the 3115-900KV paired with a 10×5×3 propeller delivers:

High Power Density

Thrust-to-weight ratio increased by7%

Peak thrust enhanced by21%

Peak power density improved by18%

Test comparison (XRotor PRO 3115-900KV vs. leading brands)

Motor Model	XRotor PRO 3115-900KV	Leading Brand Competitor 1: 3115-900KV	Leading Brand Competitor 2: 3115-900KV
Test ESC	XRotor-65A-4in1	XRotor-65A-4in1	XRotor-65A-4in1
Test Propeller	10x5x3	10x5x3	10x5x3
Test Voltage (V)	24	24	24
Weight (g)	129.2	121	114.1
Thrust-to-Weight Ratio	39.37	34.37	36.77
Peak Thrust (kg)	5.09	4.16	4.2
Peak Power Density (kW/kg, output power)	10.29	8.22	8.69
3kg Point System Efficiency (g/W)	3.75	3.31	3.46
Peak Thrust Temperature (Coil 200℃) / Safe Time (s)	16	6	11

Efficient Cooling

Efficient Cooling, Stable Continuous Output

The motor’s propeller mount adopts a high-density self-cooling fin structure, rapidly dissipating internal coil heat during flight and effectively reducing operating temperature rise. It maintains an ideal operating temperature under heavy-load and continuous-flight conditions, extending continuous operation time while improving motor reliability and durability.

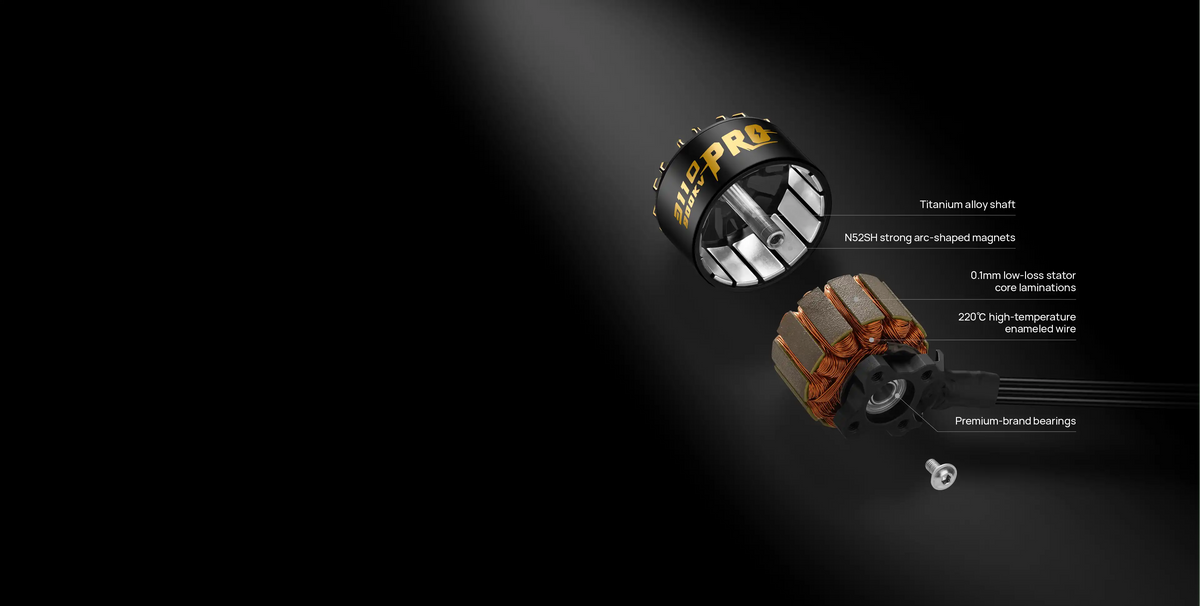

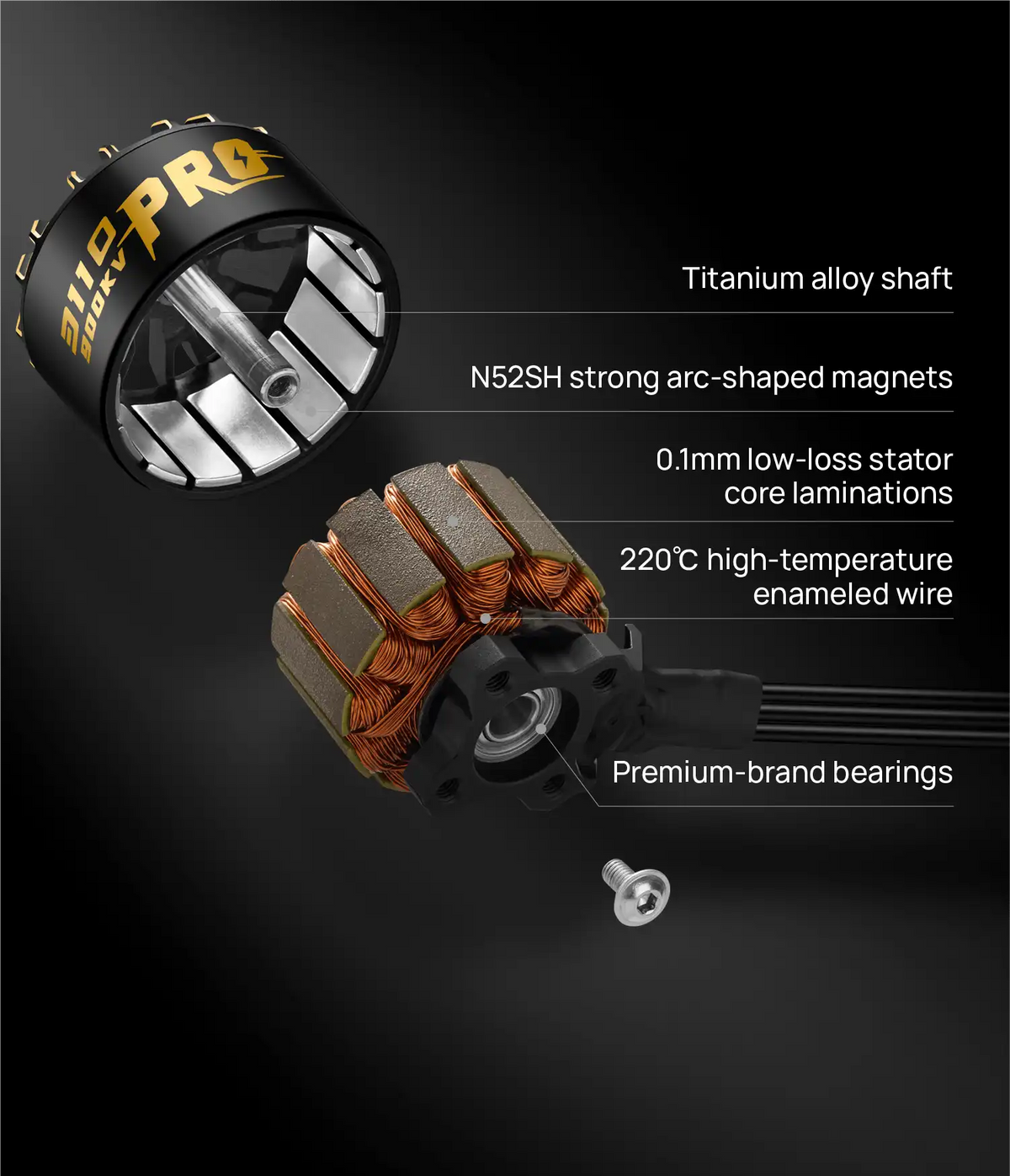

Refined Design, Premium Materials, Creating a Reliable Power Core

Premium Materials

Refined Design, Premium Materials, Creating a Reliable Power Core

Use high-performance 0.1mm low-loss stator core laminations from a leading brand to reduce iron loss and improve conversion efficiency.
Titanium alloy shaft design balances lightweight construction and structural strength.
220℃ high-temperature enameled wire meets application demands under high-load and high-temperature conditions.
N52SH strong arc-shaped magnets deliver powerful torque output.
Premium-brand bearings ensure motor durability and stable high-speed operation.
