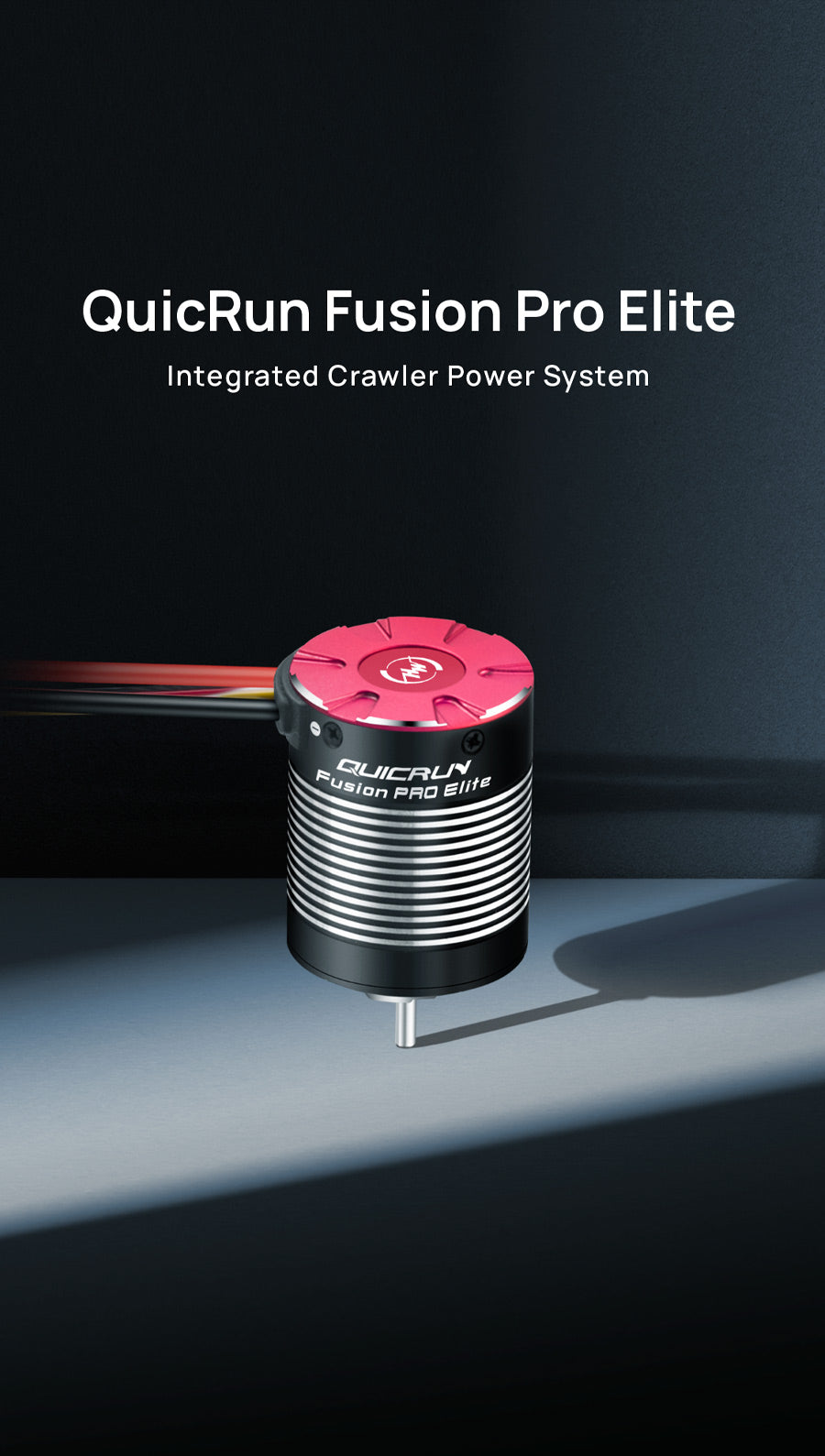

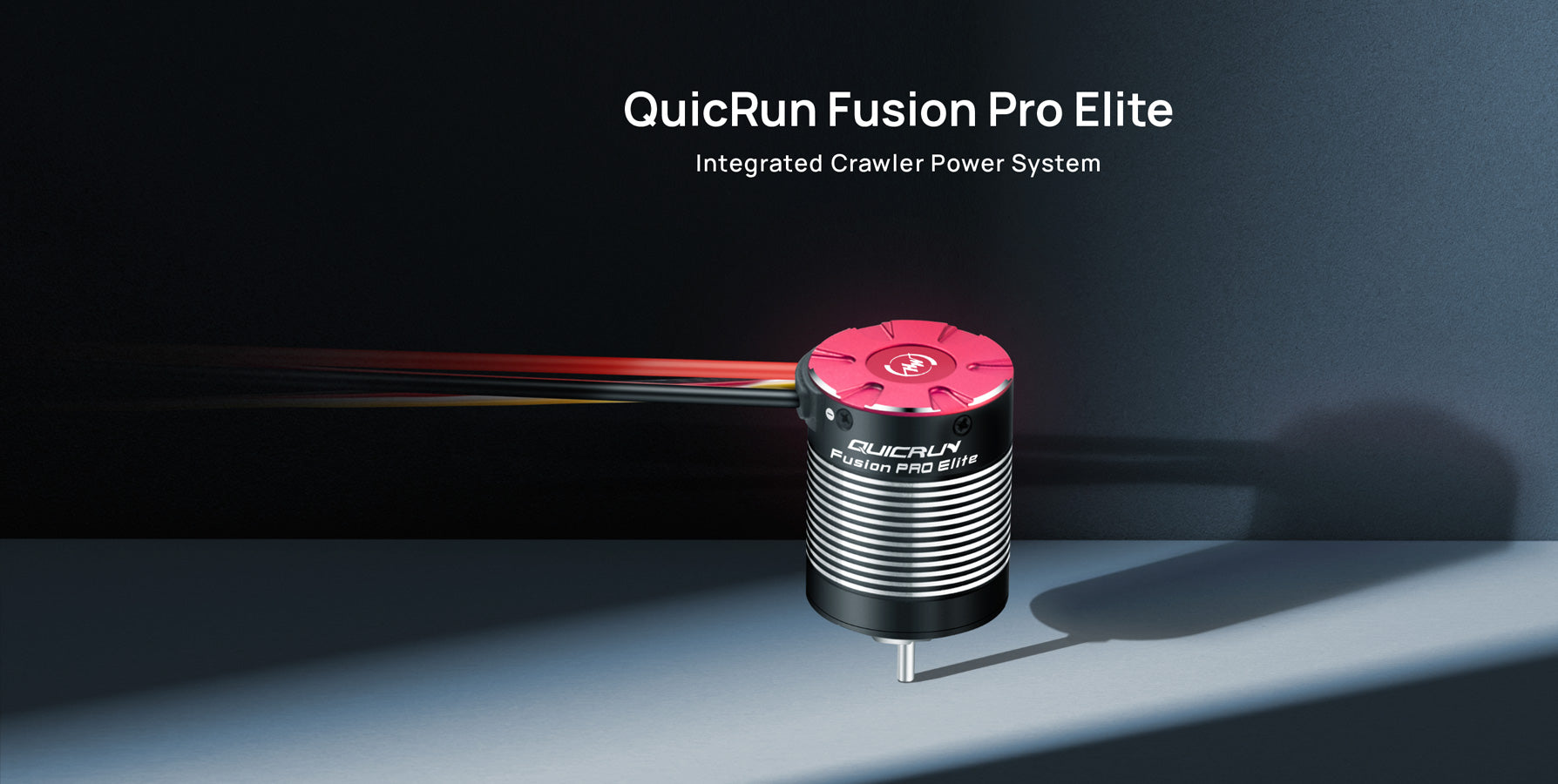

QuicRun Fusion Pro Elite

AUX External Control, Channel for Real-time Parameter Adjustment

By connecting the yellow AUX CH signal wire to an unused receiver channel, you can adjust ESC parameters (like drag brake force) on the fly from your radio. On Trail tuning has never been this easy.

AUX External Control, Channel for Real-time Parameter Adjustment

By connecting the yellow AUX CH signal wire to an unused receiver channel, you can adjust ESC parameters (like drag brake force) on the fly from your radio. On Trail tuning has never been this easy.

AUX External Control, Channel for Real-time Parameter Adjustment

By connecting the yellow AUX CH signal wire to an unused receiver channel, you can adjust ESC parameters (like drag brake force) on the fly from your radio. On Trail tuning has never been this easy.

FOC Drive, Quiet,Powerful Torque withExcellent Linearity

The power system uses FOC (Field-oriented control) drive, delivering significantly stronger low-speed torque and smoother performance than conventional sensored systems. It outperforms traditional brushed
power systems and eliminates motor noise for near-silent operation, allowing you to fully enjoy the experience.

AUX External Control, Channel for Real-time Parameter Adjustment

By connecting the yellow AUX CH signal wire to an unused receiver channel, you can adjust ESC parameters (like drag brake force) on the fly from your radio. On Trail tuning has never been this easy.

Closed Loop, Intelligent Torque Control for Precise Throttle Matching and Amazing Control

The ESC features an intelligent torque output and speed closed-loop control system that automatically adapts to changing terrain conditions.

Overview
Spec
Download

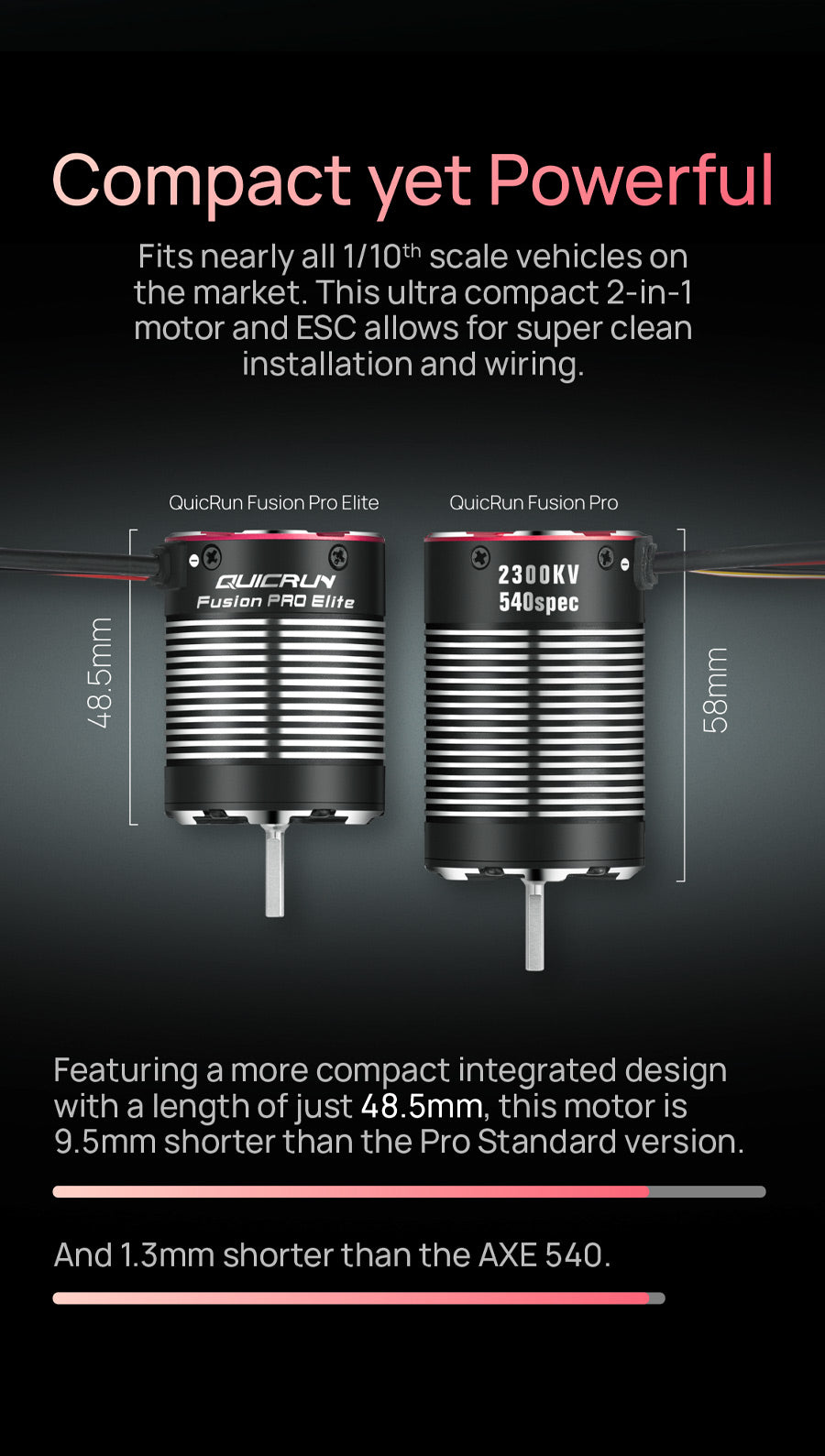

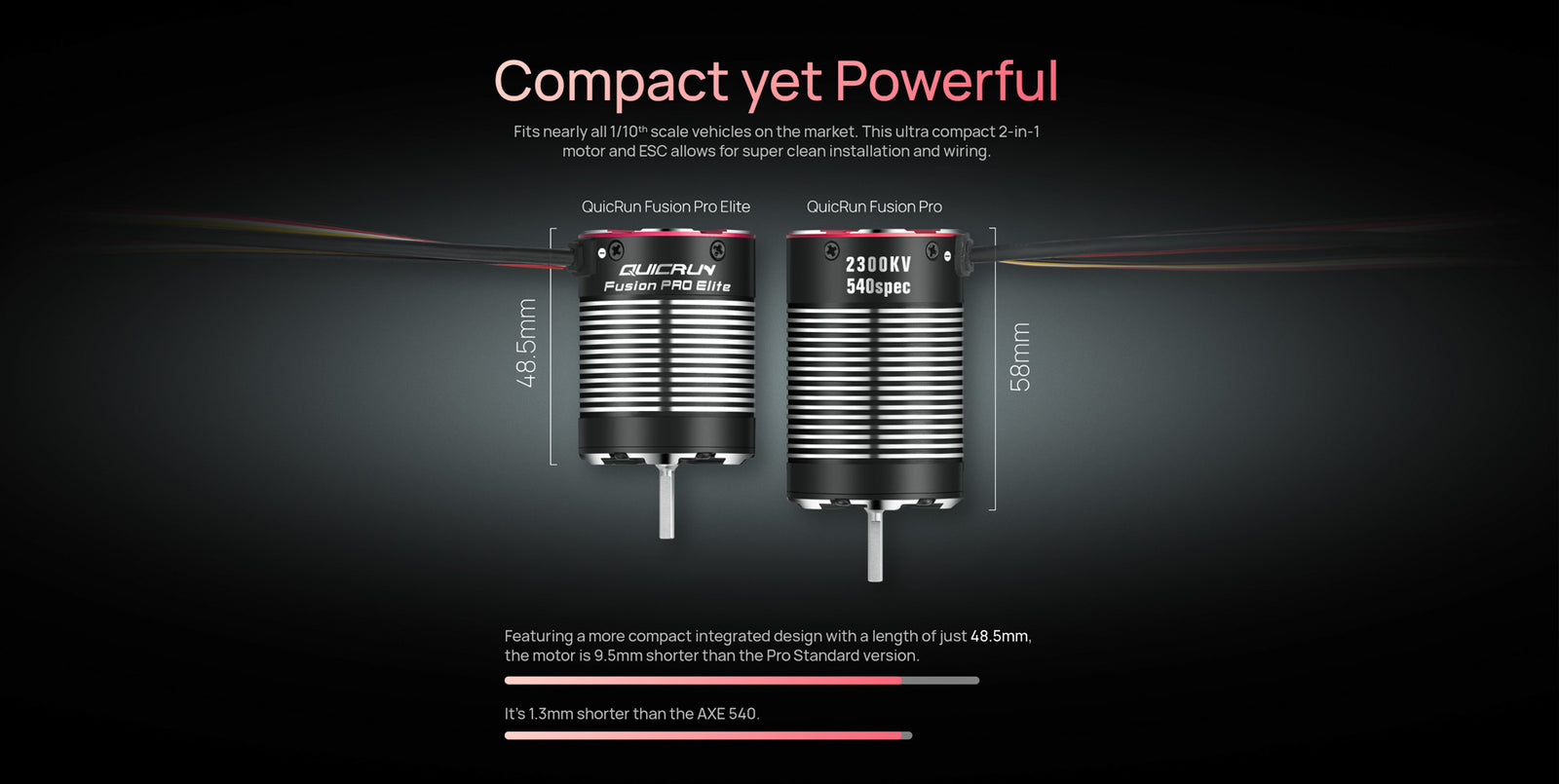

- Featuring an ultra-short integrated design with a length of just 48.5 mm, this motor is 9.5 mm shorter than the Pro Standard version and 1.3 mm shorter than the AXE 540. It fits most 10th-scale crawler chassis on the market, allowing for cleaner, more streamlined wiring layouts.
- FOC (Field-Oriented Control) Driving Mode: The FOC driving mode enhances the power system of rock crawlers, delivering strong low-speed torque. This provides superior performance compared to standard brushless setups and is even preferred over brushed setups for overall feel.
- The system offers high efficiency, reduced heat, and extended runtime, with the motor running quietly and smoothly.

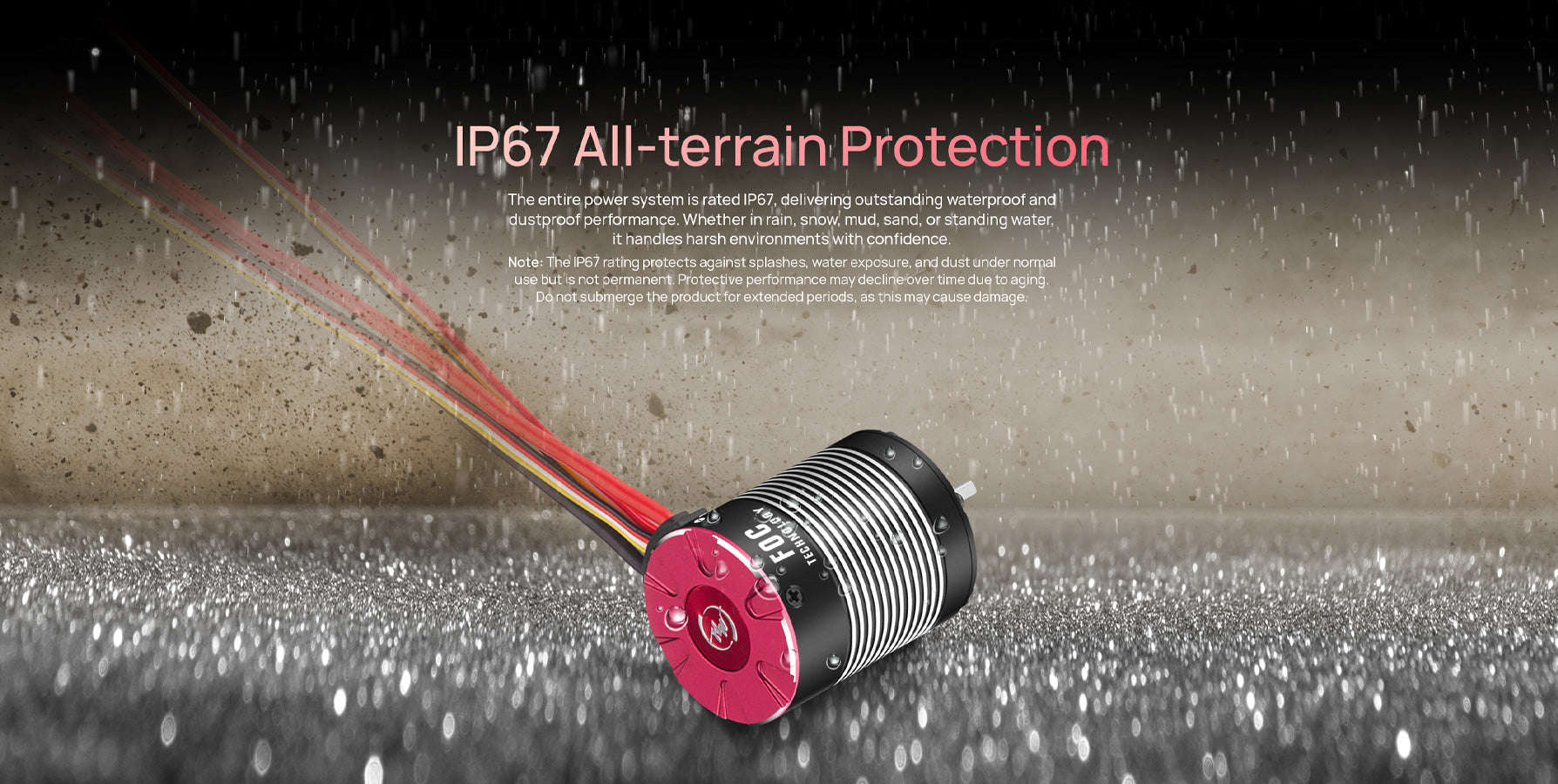

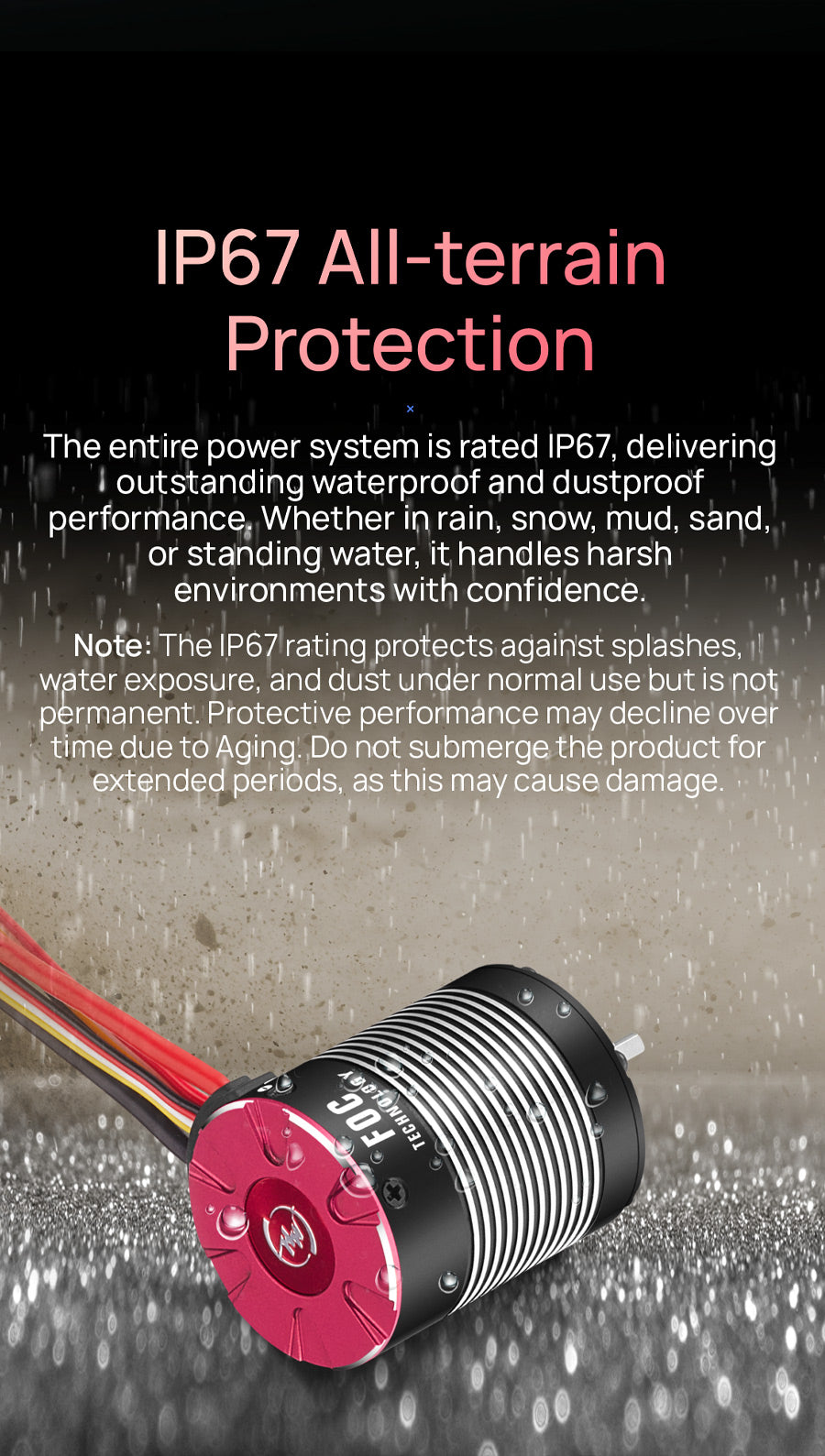

- The entire system has an IP67 protection grade, enabling operation in all conditions.
- Intelligent torque output and speed closed-loop control ensure precise handling.
- Active drag brake force adjustment provides superior holding power on inclines.
- The strong built-in switch-mode BEC supports continuous/peak current up to 5A and adjustable voltages of 6V, 7.4V, or 8.4V, capable of driving high-torque and high-voltage servos.

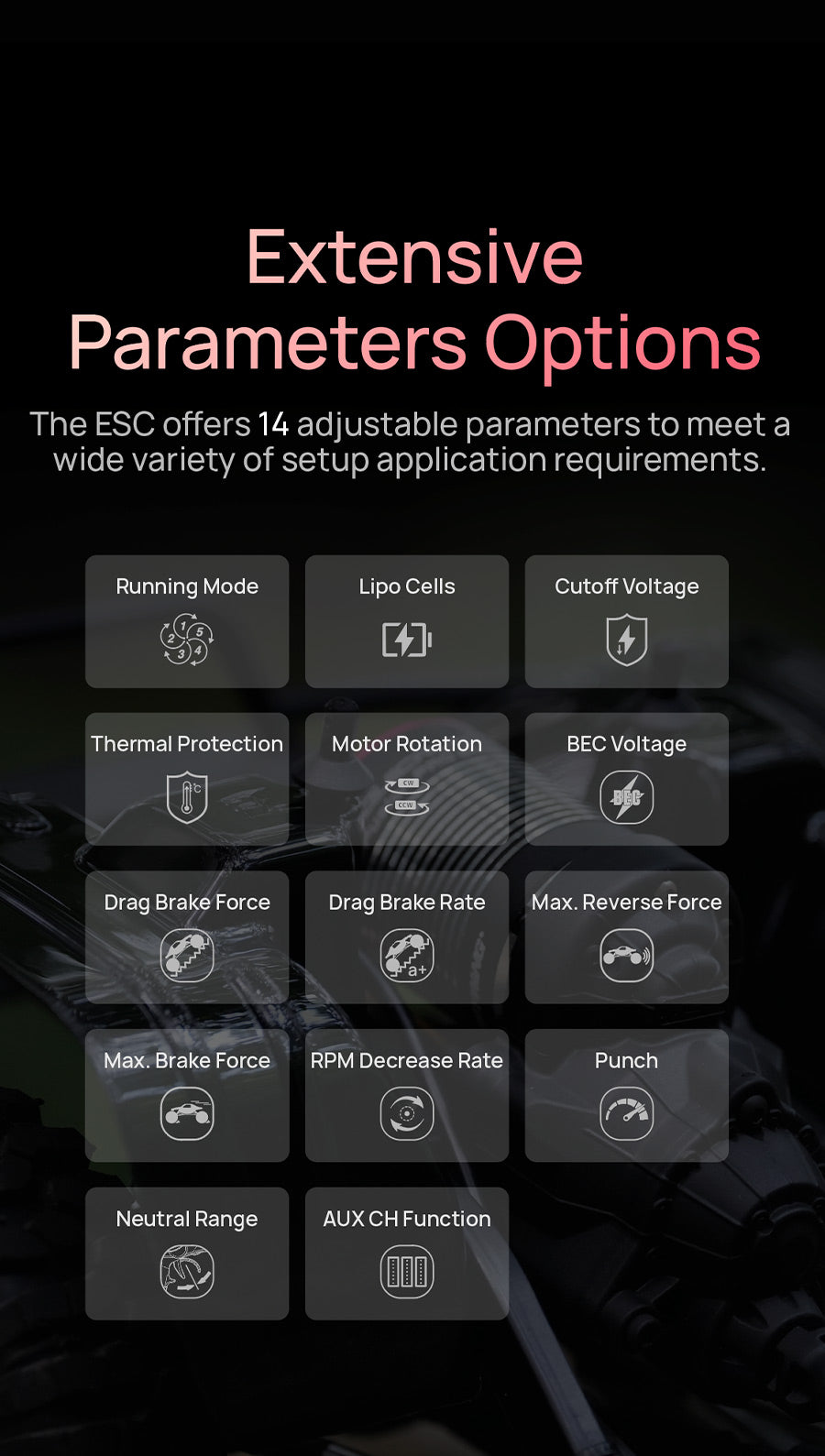

- Real-time parameter adjustments are possible using the transmitter’s AUX channel.
- Multiple protection functions include battery low-voltage protection, overheat protection, throttle loss protection, and lock-up protection.

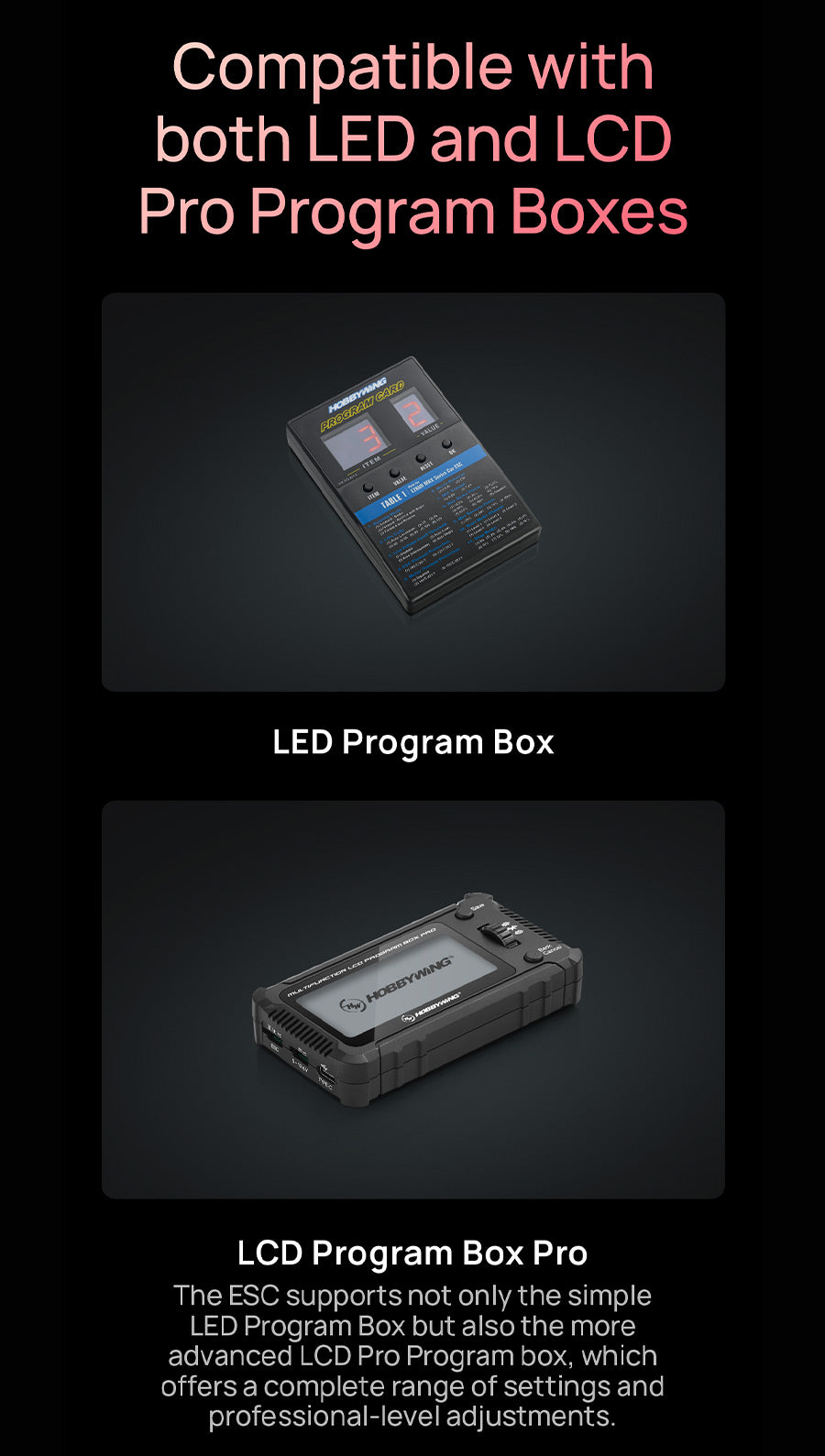

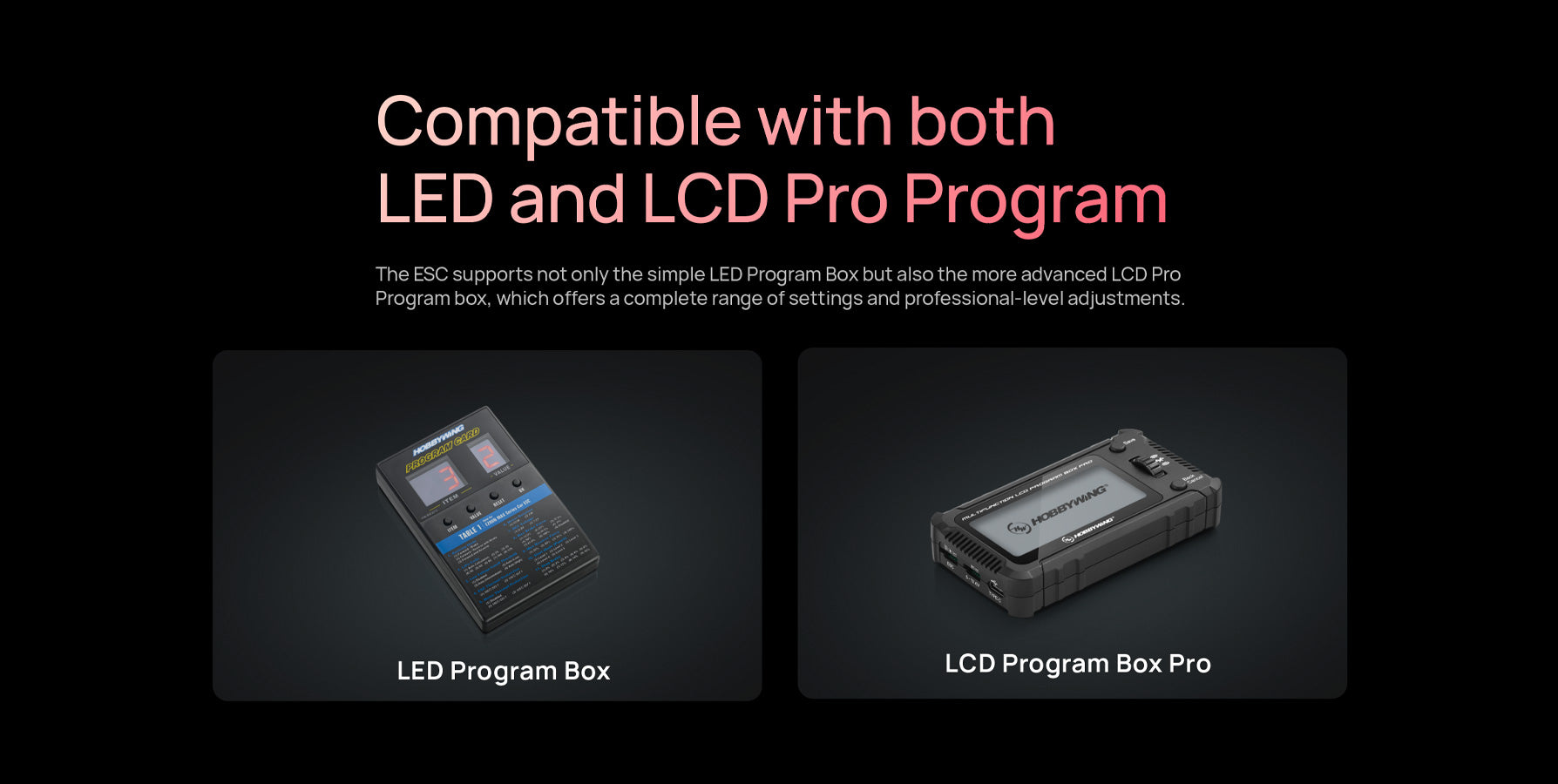

- The system supports LED and LCD Program Box Pro/G2 for convenient ESC parameter settings..
Parameter schedule:
- User's Manual: QuicRun Fusion Pro 10en ELITE >
- Product brochure: QuicRun Fusion PRO 10en Elite_leaf-en.pdf
