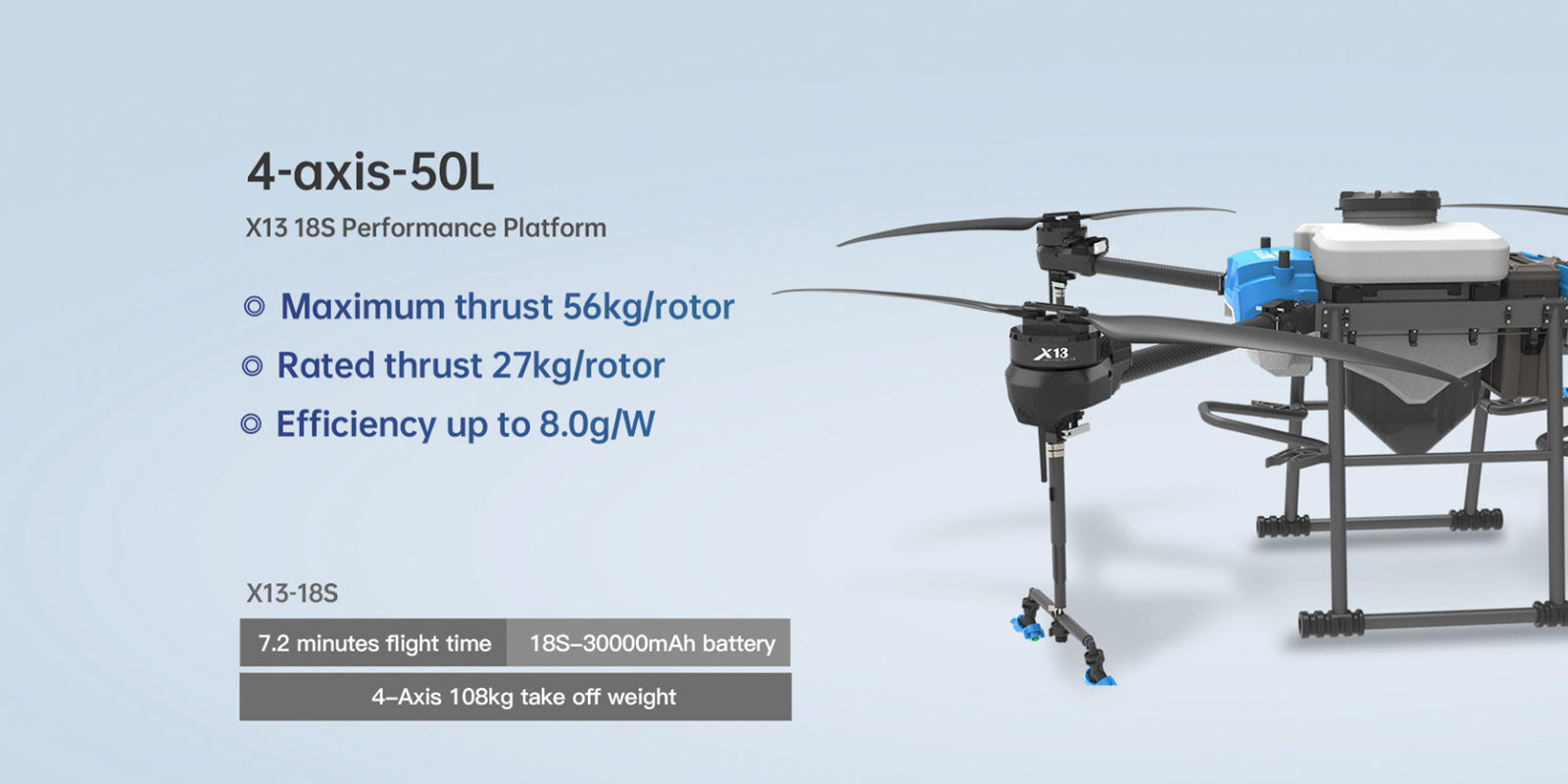

The XRotor X13 brushless power system is a robust plant protection system designed for 25-27kg/rotor single-rotor loads, with more than 53kg of maximum thrust. It is suitable for 50mm carbon fiber tube arms and is IPX6 waterproof, capable of withstanding rain pesticieds, salt spray, high temperatures, sand/dust, impacts, and mud/sand. Featuring FOC vector control and PMSM-based algorithm optimization, the system combines digital and analog throttle for increased flight stability, plus power-on auto-detection and safety functions such as voltage abnormality protection, over-current protection, stall protection, and others; all data is transmitted via CAN, and faults are logged for better analysis.

2 models available -45KV |  60KV

• Recommended Takeoff Weight: 25-27kg/axis

• Total Weight: 2800g
• Maximum Thrust: 53kg+(54V, Sea Level)

• Operating Temperature: -20°C-50°C

• Powertrain Arm Tube Outer Diameter: 50mm

• Protection Grade: IPX6

• Total Weight: 4060g( INC. prop)

• upport throttle Frequency: 50-500Hz
