QUICRUN Fusion Pro ELITE (2in1 FOC System)
QUICRUN Fusion Pro ELITE (2in1 FOC System)

HOBBYWING

QUICRUN Fusion Pro ELITE (2in1 FOC System)

30120500

$124.99 USD $180.00 USD

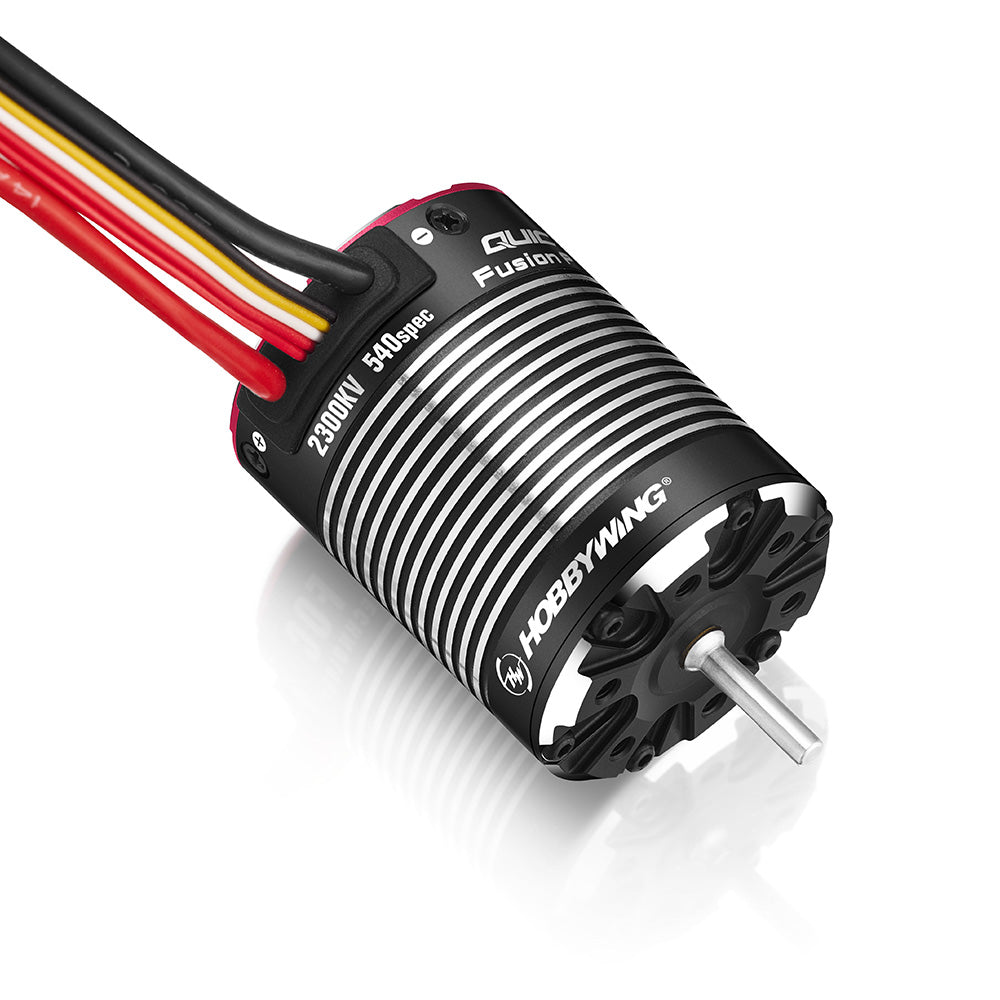

Ultra-Compact Fusion Pro
At just 48.5mm, the 2-in-1 System is 9.5mm shorter than the Pro Standard and 1.3mm shorter than the AXE 540. Designed for a clean, easy fit in nearly all 1/10th scale vehicles.
What's in the box

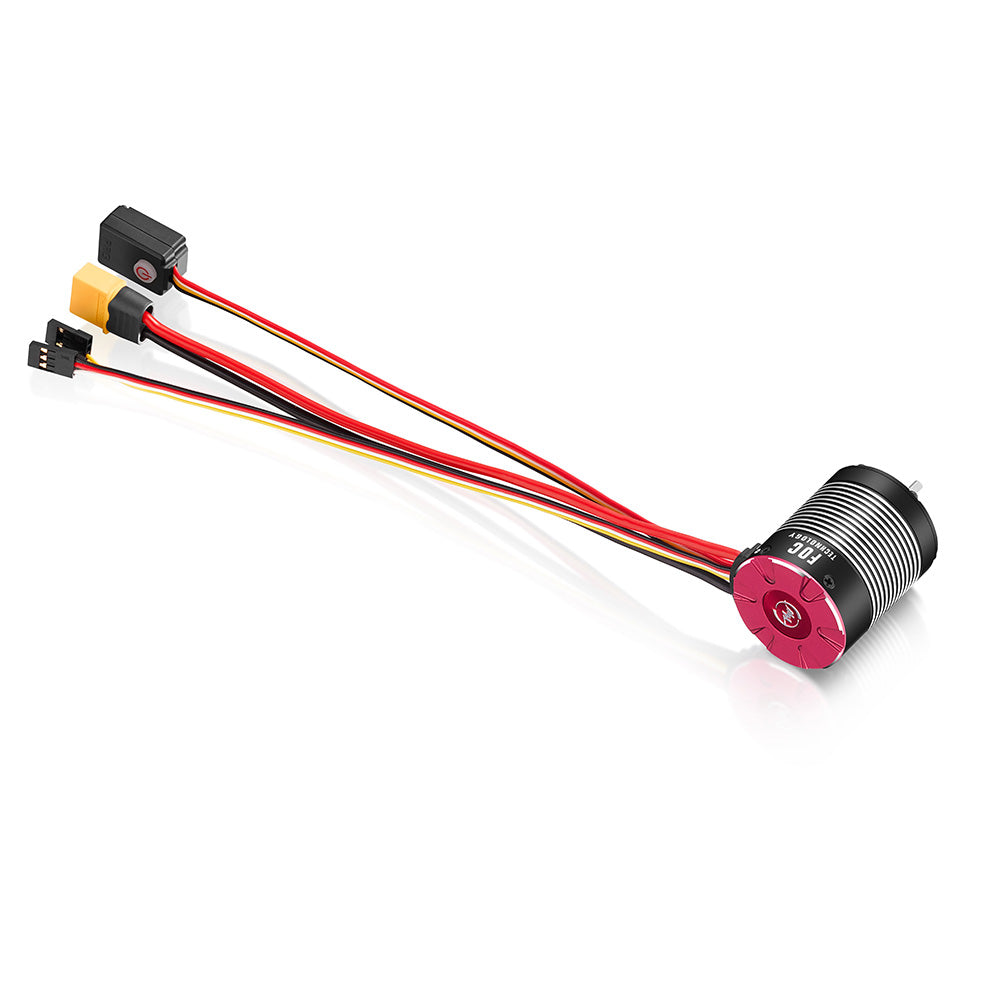

  • 1x FOC motor w/ built-in ESC
  • Factory-installed XT60 plug
  • 1x Decal and Manual
  • 1x Heatshrink kit, double-sided tape, and zip ties.

Learn More about Quicrun Fusion PRO  Elite >

Bottomline
    • Featuring an ultra-short integrated design with a length of just 48.5 mm, this motor is 9.5 mm shorter than the Pro Standard version and 1.3 mm shorter than the AXE 540. It fits most 10th-scale crawler chassis on the market, allowing for cleaner, more streamlined wiring layouts.
    • FOC (Field-Oriented Control) Driving Mode: The FOC driving mode enhances the power system of rock crawlers, delivering strong low-speed torque. This provides superior performance compared to standard brushless setups and is even preferred over brushed setups for overall feel.
    • The system offers high efficiency, reduced heat, and extended runtime, with the motor running quietly and smoothly.
    • The entire system has an IP67 protection grade, enabling operation in all conditions.
    • Intelligent torque output and speed closed-loop control ensure precise handling.
    • Active drag brake force adjustment provides superior holding power on inclines.
    • The strong built-in switch-mode BEC supports continuous/peak current up to 5A and adjustable voltages of 6V, 7.4V, or 8.4V, capable of driving high-torque and high-voltage servos.
    • Real-time parameter adjustments are possible using the transmitter’s AUX channel.
    • Multiple protection functions include battery low-voltage protection, overheat protection, throttle loss protection, and lock-up protection.
    • The system supports LED and LCD Program Box Pro/G2 for convenient ESC parameter settings..
