Blog: IMPORTANT NOTICE: Xrotor 45 Amp 4-1 usage recommendation.

By Team HOBBYWING HW Guru
on October 17, 2018
Xrotor 45A 4-1 ESC usage recommendation.

We appreciate the feedback the community has provided regarding the Xrotor 45 amp 4-1 esc. We have been taking note of your emails, service calls, and communication with our team pilots. Thank you.

HOBBYWING engineering and production staff will continue to review the Xrotor 45amp 4-1 as crucial and important part of our drone racing and freestyle line up. Thus far, it appears that failures outside the normal have some basic usage trends that could be related to the precautions mentioned below.

For all applications, please note the following.
1. Power capacitor must be installed. Every Xrotor 45amp 4-1 includes 2 power capacitors. One larger, and one smaller. The larger capacitor should be used for 5s-6s lipo, the smaller capacitor can be installed for 4s-5s lipo directly on the PCB (ESC), not by a power plug. Failure to use the included power capacitors will result in damage to your ESC.

2. BL_Heli_32 ESC settings can cause damage. Default settings should be used.

3. Motor KV ratings and prop size/pitch combinations recommendations.

- 4s Lipo using 5 inch props up to 2700KV
- 5s using 5 inch props, up to 2450 KV
- 6s using 5 inch props up to 1750 KV

Any modification/alteration of the above setting will deem a product non-warranty.
With any HOBBYWING product, if you have experienced and usage issues, please contact our service department directly. For customers in North America, visit - www.hobbywingdirect.com under Support to complete the form.
related products

Xrotor 45A G2 Combo >

Xrotor 45A G2 4in1 ESC >

JLog Integration with HOBBYWING Platinum V4 ESC

By HOBBYWING Official
on August 22, 2016

As a third-party tool, JLog helps bridge the communication between the ESC and transmitter. It can transmit various running data of an ESC to a transmitter in real time. In addition, its data-logging capability can store critical data from each flight to its SD card and allow users to read and analyze those data on PCs via an APP called log-view.

The successful "marriage" between Hobbywing Platinum V4 ESCs and JLog allows users to check various running data of ESCs (on transmitters) and guarantee the flight safety. With the data-logging function, users can analyze those data after flight and get more effective information for the safety of next flight.
The following image shows how to connect a Platinum V4 to a JLog.

various running data of an ESC displayed on a transmitter via JLog in real time (as shown below). All the transmitters shown in the following picture are compatible with JLog.

the data record read via logview.

HOBBYWING will continue to develop and manufacture powerful RC-related power systems and provide customers with more convenience and guarantees. For more information, please check out our Facebook.com/HOBBYWING.NA

Related products

#HOBBYWING #JLOG

USB Link Software update 4.0.2

By HOBBYWING Official
on August 16, 2016
USB Software VERSION 4.0.2

What's new in the new release?

For Xerun & Ezrun Max ESC
  • HOBBYWING WiFi Module & WiFi Link software compatible
  • “Softening Value” & “Softening Range” two programmable items are added, for XeRun XR10 PRO ESCs
  • Improved performance and energy efficiency between ESC and HOBBYWING brushless motor
  • Improved "COAST" feature via XR8 PLUS ESC
  • LVC accuracy and overall ESC protection feature
  • fixed known bugs
For Platinum ESC
  • Supports TXE-K. data transmission, for PLATINUM HV V4 ESCs.
  • Supports Jlog data transmission, for PLATINUM V4 ESC
  • Fixed known bugs
For LCD Program Box
  • New firmware "PB-3.2.30" supports XERUN XR10 PRO ESCs to have more programmable items.

Software Update - Release note V4.0.01

By HOBBYWING ESC
on June 10, 2016

Software updates:

Hobbywing USB Link V4.0.1

Now support more XERUN XR10 PRO series of ESCs.
For Car ESCs:
  • Released new firmware "B1.20" for EZRUN MAX10-SCT ESC.

For Aircraft ESCs:
  • Added the new firmware "PL-04.0.04" (for Platinum V4 60A), which supports the ESC to adjust startup force and output data.
  • Added the new firmware "PL-04.0.03" (for Platinum V4 80A), which supports the ESC to adjust startup force and output data.
  • Added the new firmware "PL-04.0.03" (for Platinum V4 120A), which supports the ESC to adjust startup force and output data.
  • Added the new firmware "PL-04.0.02" (for Platinum HV V4 130A), which supports the ESC to adjust startup force and output data.
  • Added the new firmware "PL_OPTO-04.0.02" (for Platinum V4 130A OPTO), which supports the ESC to adjust startup force and output data.
  • Added the new firmware "PL-04.0.03" (for Platinum HV V4 160A), which supports the ESC to adjust startup force.
  • Added the new firmware "PL200-04.0.02" (for Platinum HV V4 200A), which supports the ESC to adjust startup force.
For Boat ESCs:
  • N/A
For LCD Program Box:
  • It can support more XERUN XR10 PRO series of ESCs.
  • It supports the LCD program box to display temperatures in Fahrenheit degrees and capacitor temperature also in Fahrenheit degrees for Platinum V4 series & Platinum HV V4 series of aircraft ESCs.



>> Download

USB Link Software is suitable for the following ESC:

XERUN Series Car ESC (Version 2.0/2.1/3.0/3.1 and later)
EZRUN Series Car ESC (Version 2.0 and later)
PLATINUM Series helicopter/airplane ESC
SEAKING Pro Series Boat ESC

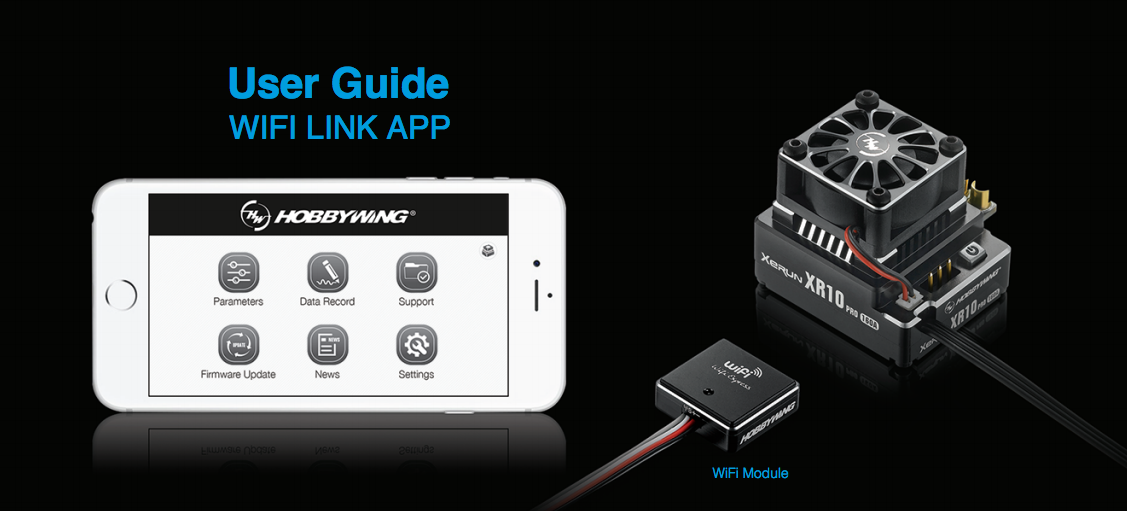

WiFi Link App - User Manual

By HOBBYWING ESC
on May 25, 2016
Download User Manual
