XRotor X15 System

38040346

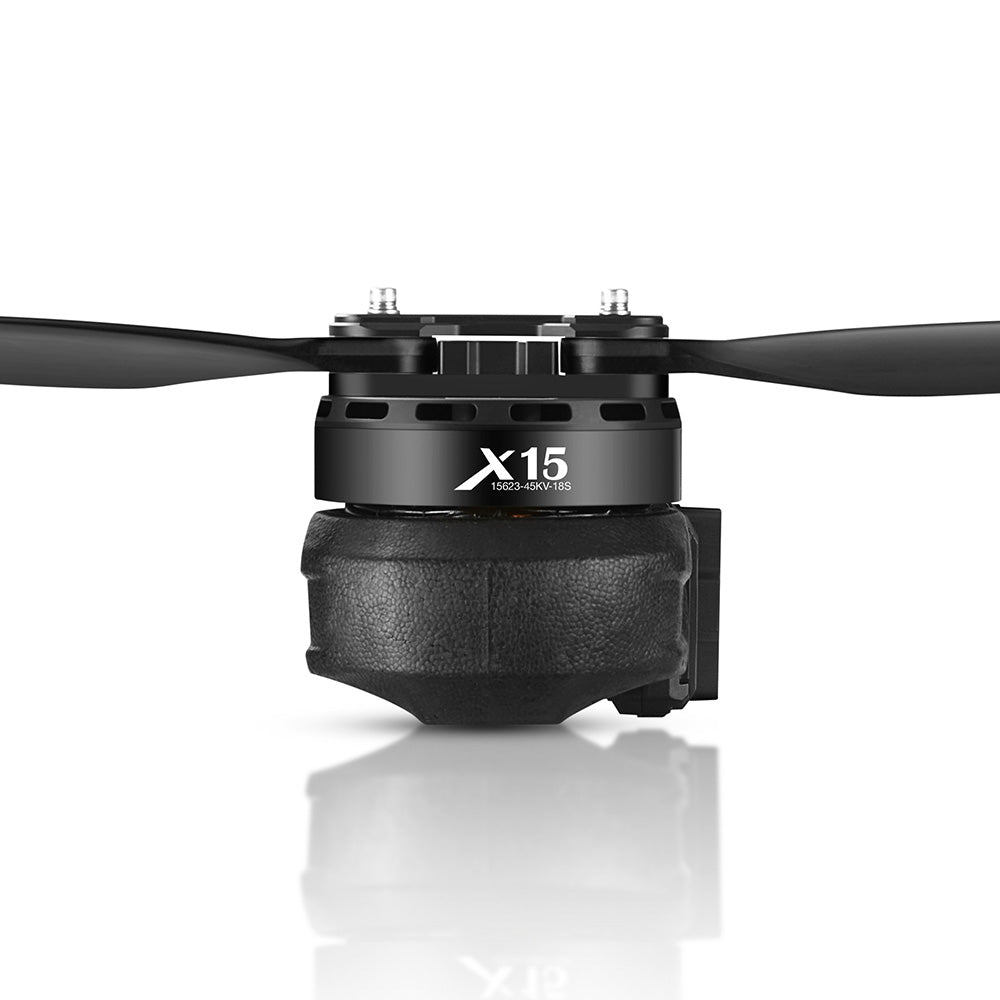

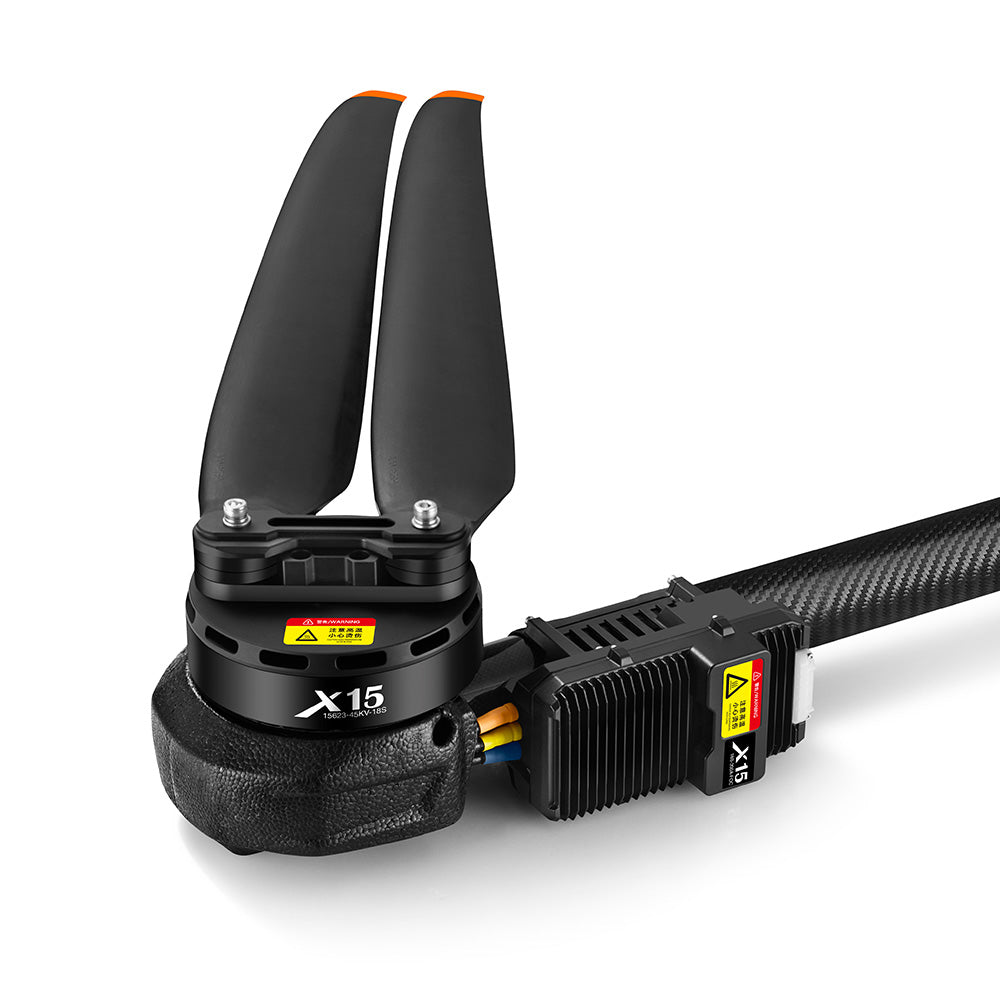

HOBBYWING XRotor X15 propulsion system is designed for agricultural drones, with a thrust of 32.5-37.5kg per rotor and a maximum thrust of 72kg/rotor. It is suitable for 60mm carbon fiber tube arms and is IPX6 waterproof, capable of withstanding rain, pesticides, salt spray, high temperatures, sand, dust, impacts, and mud. Featuring FOC vector control and algorithm optimization, the system combines digital and analog throttle for increased flight stability, plus safety functions such as voltage abnormality protection, over-current protection, stall protection, and others; all data is transmitted via CAN, and faults are logged for better analysis.

*Propellers are sold separately

Specifications

KV: 45KV

Battery:

18S

Throttle

PWM+CAN

Rated power Input / Output

5000W / 4400W

Takeoff Weight of Quadrotor

32.5-37.5kg

Max Thrust:

72kg

Throttle pulse width

1050-1950μs(Solidified)

BEC

None

Protocol version

HWCAN+DroneCAN
Prop: 63*24"
