Thank you for your interest in HOBBYWING’s latest cutting-edge brushless motor, the XeRun V10 [G5]. Due to high demand, customers may be limited to 2 units per order. Quantities are limited. Subscribe to be notified about the next batch.

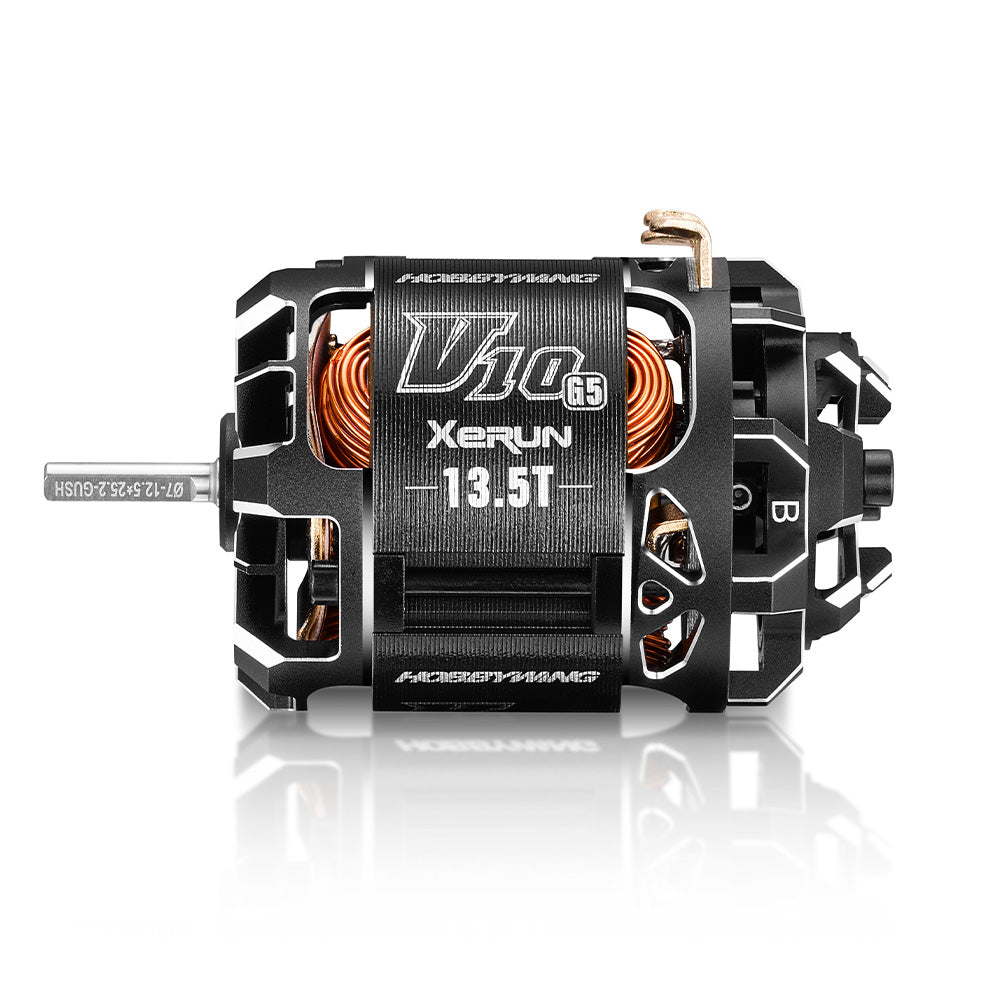

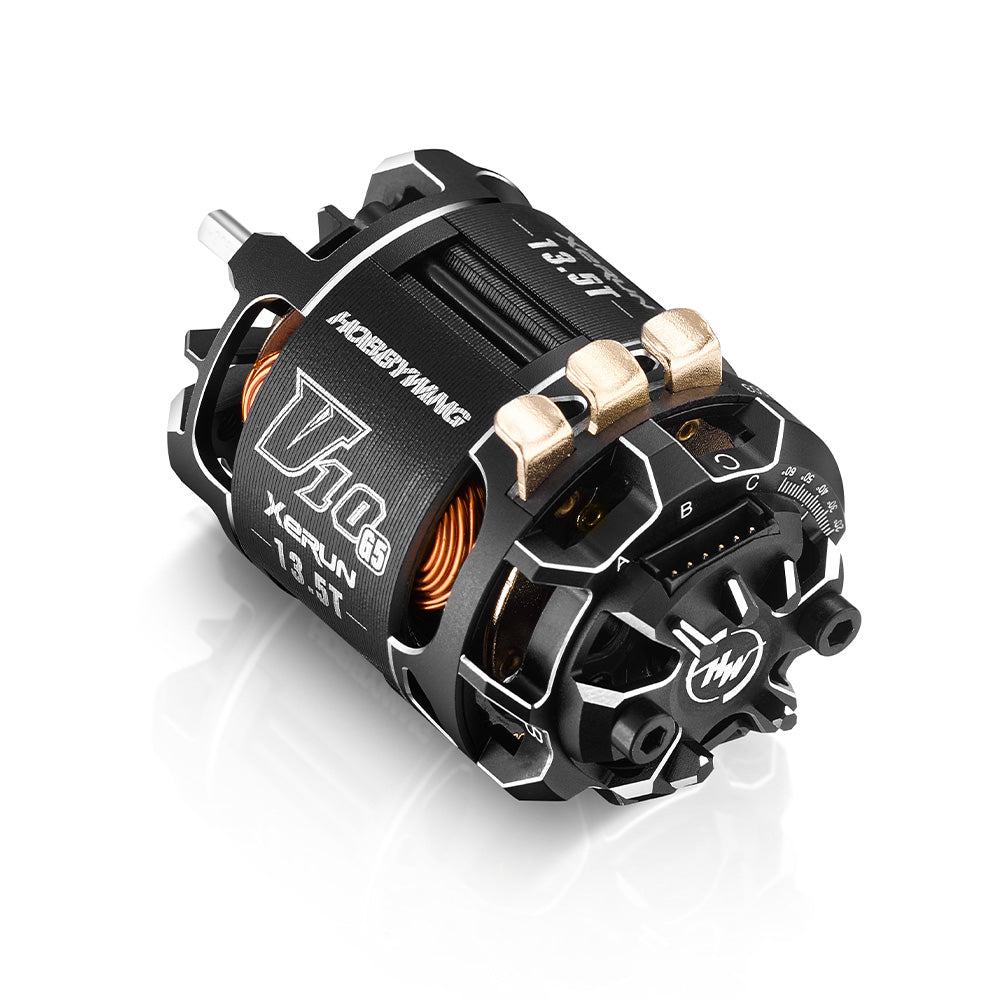

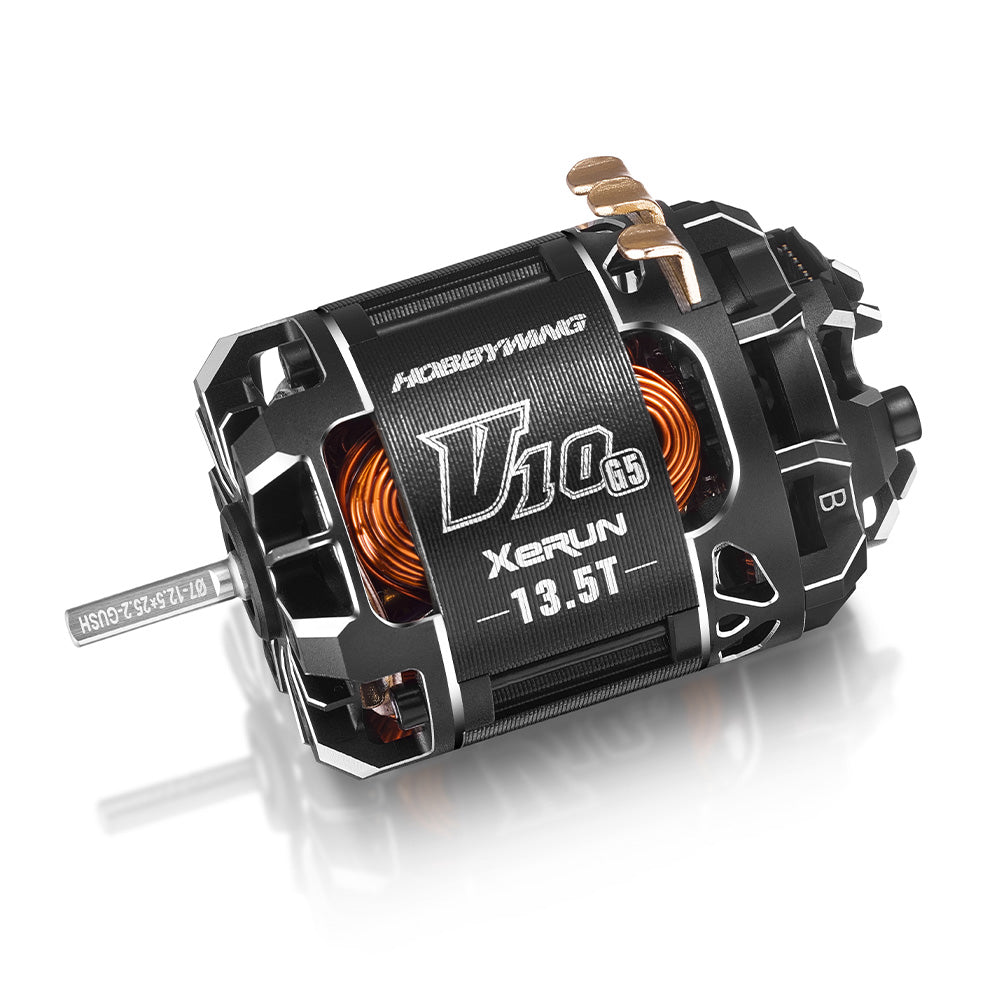

Xerun V10 G5 Stock Motors

Using the highest level of production standards, the XeRun V10 G5 motors are built and tuned to the same exacting specifications as the team motors used to win World and National titles. Produced to team standards and now available to all racers.
Delivering more than just speed, the V10 G5 offers 3.9% higher maximum output power and over 4% improved efficiency compared to the previous version. It is also 13g lighter with an optimized center of gravity, features excellent heat dissipation, adjustable Hall timing & sensing distance, and a modular design for easy maintenance.

Overview
Spec
Download

- Excellent Heat Dissipation

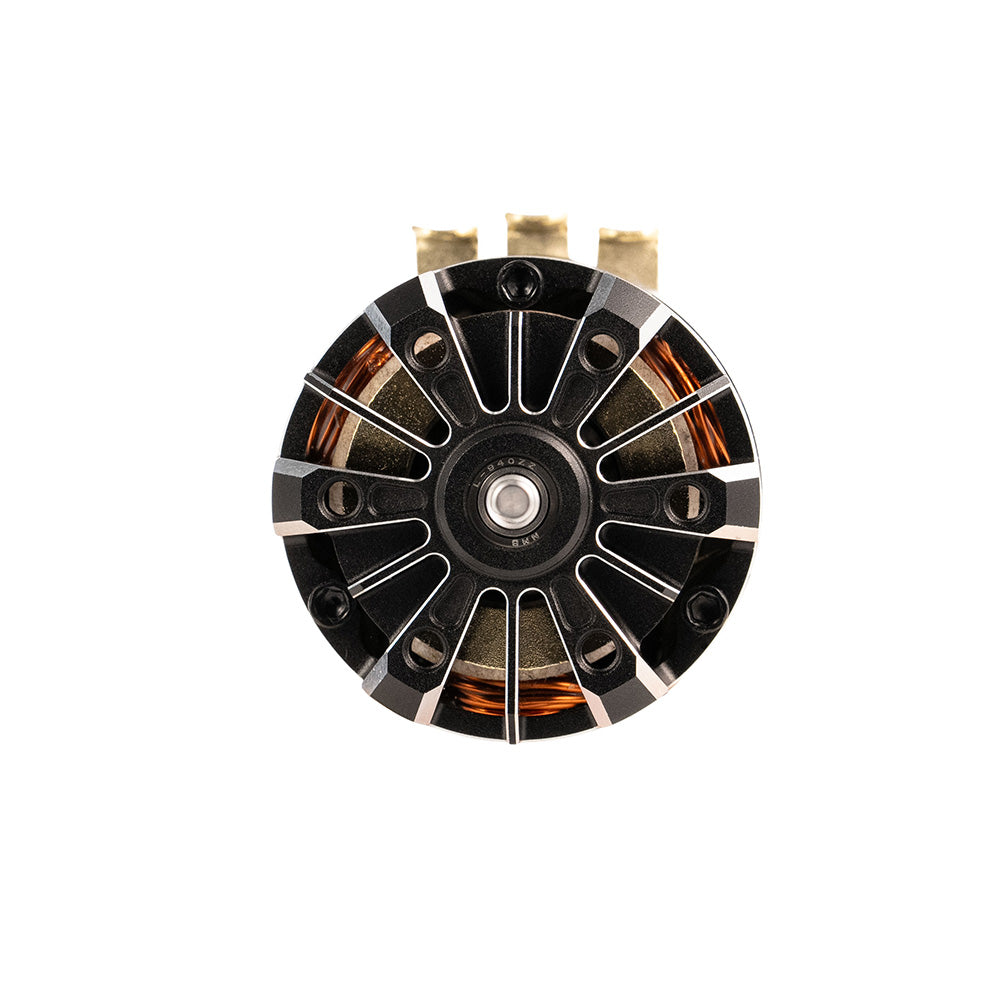

  New endbell design exposes more of the winding to allow better heat dissipation. Patented rotor cooling design, Thermal efficiency has been improved to reduce overall temperatures and provided better consistency
- Optimized Weight and Center of Gravity
  Redesigned inside and out, the new-generation G5 motor is 13g lighter than the G4R, The G5 has been designed to move the weight towards the centerline of the vehicle.
- 2 options Available
  The V10 G5 13.5T motor is available in two specialized versions SPEED and TORQUE The SPEED version features higher RPM that is suited for medium/low grip applications and larger sized tracks. The TORQUE version features as higher strength rotor suited for medium to high grip, small to medium sized tracks.
- Adjustable Hall Timing Accuracy
  The timing assembly introduces a new adjustment to allow further fine tuning of the sensors. This new angle adjustments means your motor will run smoother and be more efficient.
- Adjustable Hall Sensing Distance
  Rotor and sensor spacing is now easily adjustable. Three settings allow racers the ability to fine tune the response and feel of the power delivery.
- Designed for Easy Maintenance
  Modular design allows for quick and simple motor cleaning to allow racers to keep their motors performing at their best.
- Built with Superior Materials
  The V10 G5 motor is built to excel in the harshest race conditions.
  - High-performance Premium Stator Core
  - 180°c High-temperature–rated Reinforced Rotor with Special Coating
  - Top-tier Bearings
Specification:

Recommended FDR (Final Drive Ratio)

The FDR (Final Drive Ratio) is the ratio between the angular velocities of the pinion gear and the tyres. In simple terms, the number of laps the motor will rotate when the tyres spin one lap.
Different conditions like track type, grip, tyres, temperature, vehicle weight, gearing mode, driving mode influence the performance of your vehicle and have different requirements on the power system, therefore one FDR can not be applicable for all conditions.
All the values in the table are initial FDRs recommended for the motors in Blinky mode. Please starts testing with the recommended values, and determine the final value as per the test results. If no recommended FDR is applicable to your vehicle, please start with a big FDR and then adjust gradually as per the demand.
Download:
- User Manual: Manual_XERUN V10 G5.pdf >
- Product brochure: Leaflet_XeRun V10 G5-web.pdf >
- Comparison chart: Comprision_XeRun V10 G5 and G4R.pdf >
