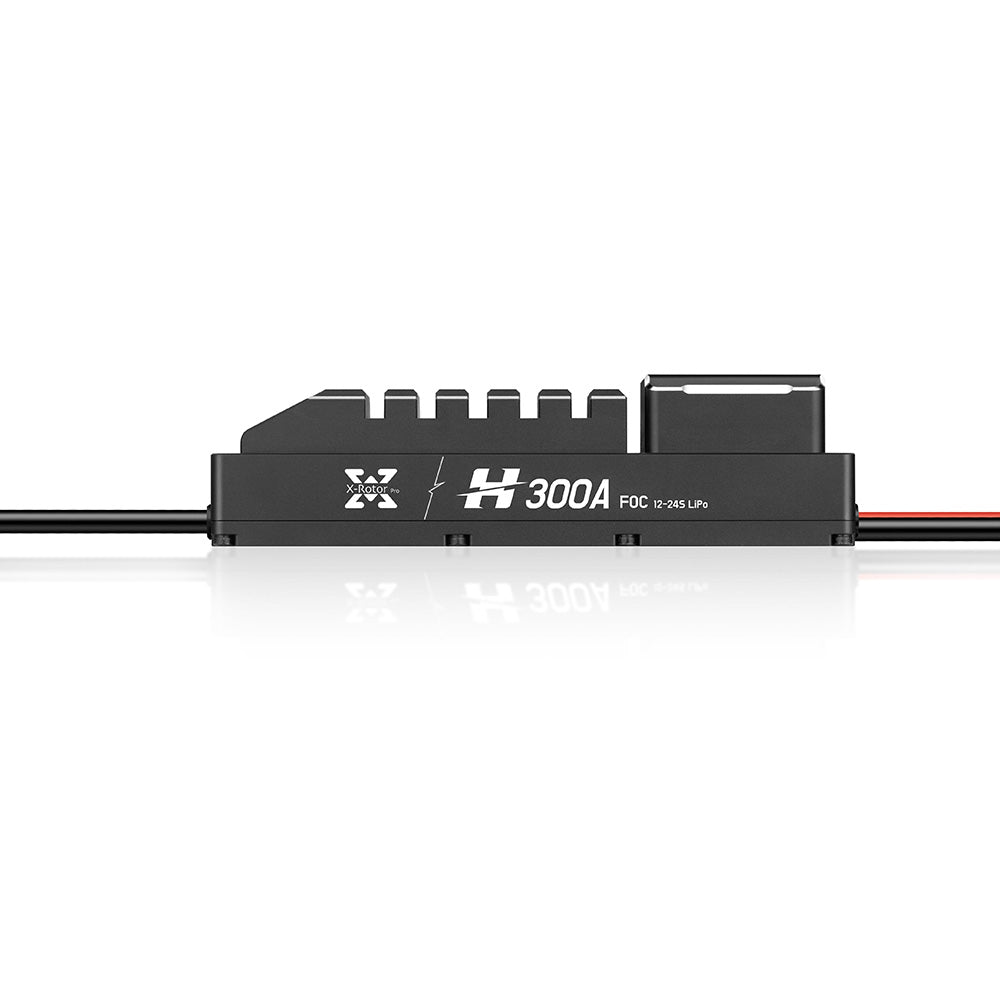

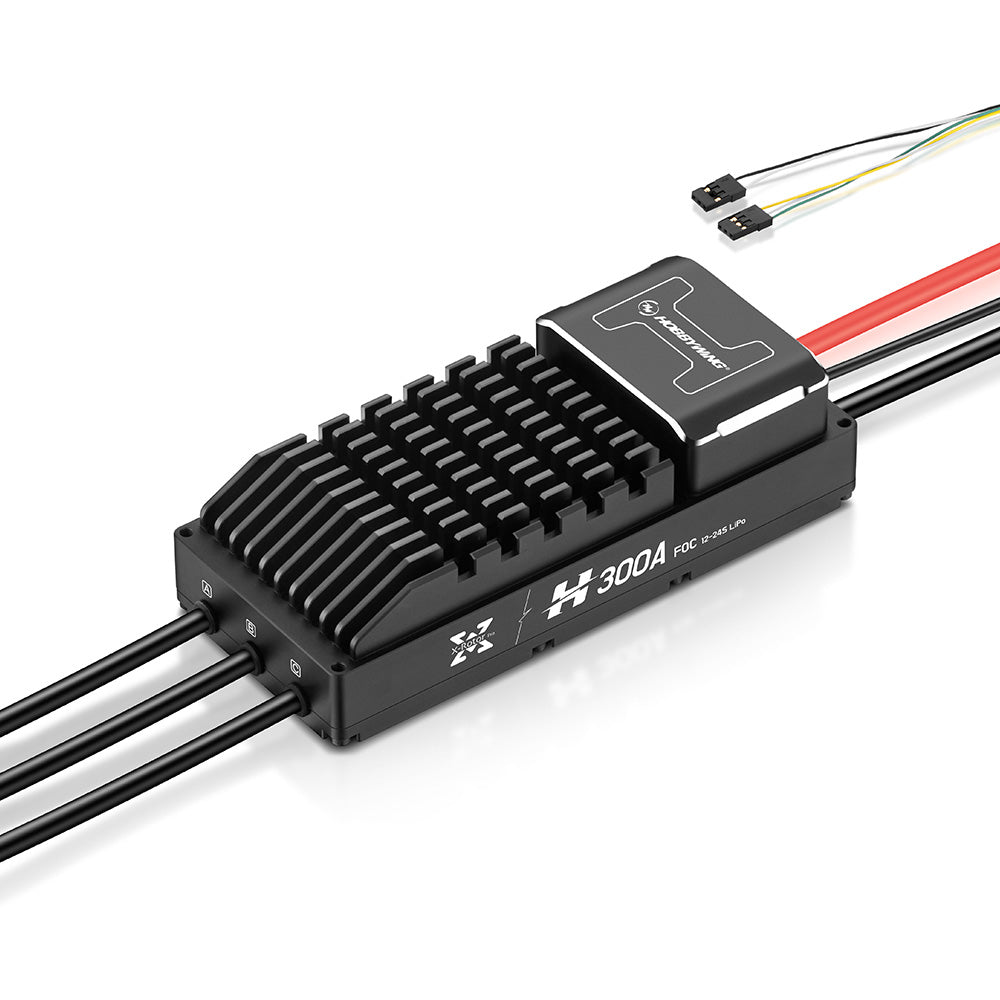

XRotor H300A 24S FOC ESC

30903040

Notify me when this product is available:

Learn more > Datasheet, Manual download >

 Model XRotor Pro H300A 24S FOC
Digital Throttle CAN(Custom Serial port)
Double Throttle Signal Yes(CAN)
Continuous Current 140A
Specification  300A
BEC None
Voltage 12-24S(36-130V)
Weight without Wires 800g
Size 175*76*47(mm)
Throttle Signal Frequency 50-500Hz
IPC Optional


Brushless ESC with FOC drive, specialized designed for UAV drones. FOC vector control developed for precise control, fast response, efficient driving, and low noise. IPC (Intelligent Propeller Control) version is optional, allowing flexibly stop propellers at a preset or fixed angle. IP55 protection level (IP67 optional), dustproof and waterproof .Optimized structure design, easy to install on both multi-rotor and VTOL fixed-wing drones. Supports CAN & PWM dual throttle, better resist external electromagnetic interference. New Generation Black Box Feature, allowing millisecond-level data recording and fast data & fault analyzing.
