Features

• Integrated Bluetooth Connectivity
  The ESC features a built-in Bluetooth module within the power switch, allowing
  direct connection to the HW LINK App without the need for additional programming devices. Users can conveniently adjust parameters, access data logs, and perform firmware updates via smartphone, making setup and maintenance straightforward and efficient.

• Integrated Data Logging
  The ESC features a built-in Bluetooth module within the power switch, allowing direct connection to the HW LINK App without the need for additional programming devices. Users can conveniently adjust parameters, access data logs, and perform firmware updates via smartphone, making setup and maintenance straightforward and efficient.

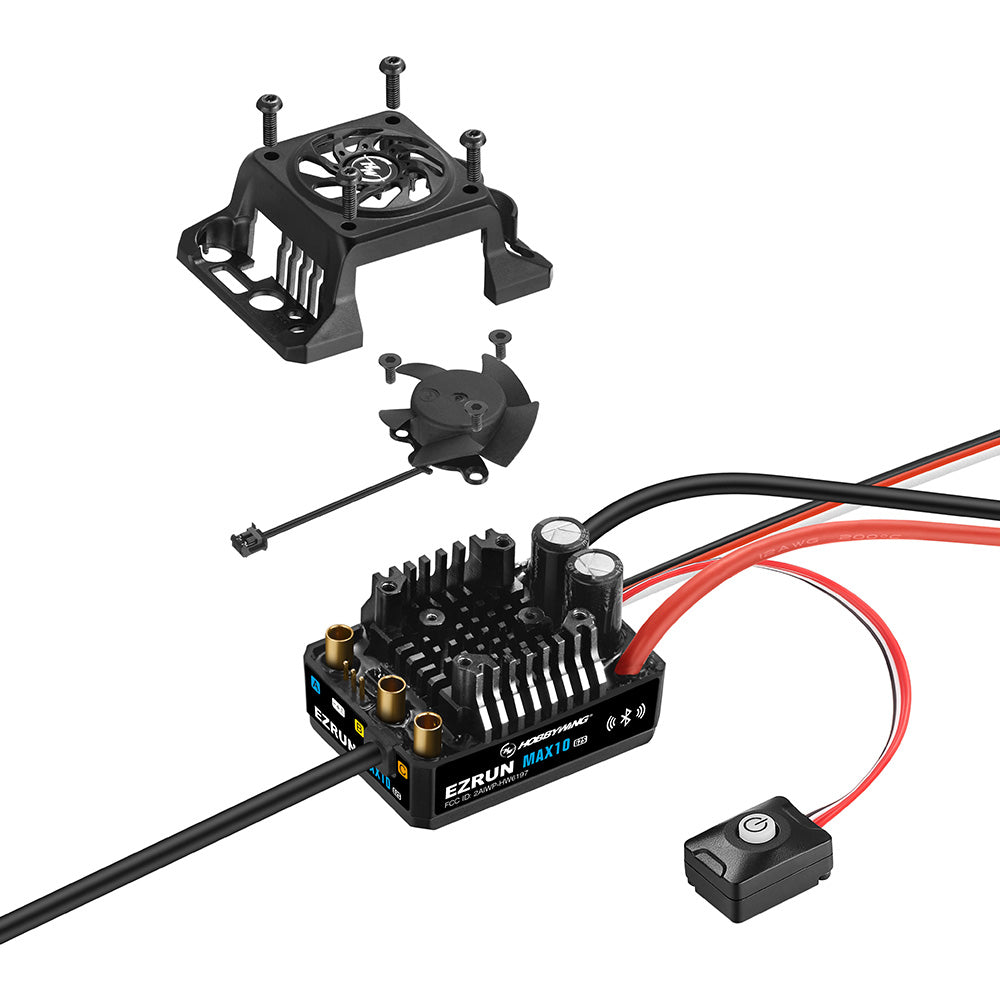

• Efficient Cooling System
  The ESC features a frameless fan design that enables high airflow discharge from
  the sides, improving overall cooling efficiency. Combined with an integrated heatsink housing, heat generated during operation is rapidly dissipated. This helps maintain stable operating temperatures, ensuring consistent performance even under demanding conditions.



• Adjustable 3-Step BEC Output
  The ESC features an integrated high-performance BEC with a maximum output current of up to 10A. Output voltage is adjustable between 6.0V, 7.4V, and 8.4V, allowing compatibility with both standard and high-voltage servos. It ensures stable and consistent power delivery, providing reliable performance across a wide range of applications.

• Intelligent Fan Control
  The ESC is equipped with an intelligent fan control system that automatically adjusts fan operation based on real-time temperature. When temperatures remain low, the fan stays off, and once a preset threshold is reached, it activates automatically. This system helps reduce noise and power consumption while maintaining accurate and efficient thermal management.


• Turbo Timing Technology
  The ESC supports adjustable Turbo timing up to 32 degrees. When paired with HOBBYWING EzRun 3652/3665 G3 motors, the system delivers a noticeable Turbo effect, with maximum RPM increased by up to approximately 25%. This provides enhanced top-end performance while maintaining controlled power delivery.


• IP67 Protection
  Rated to IP67 standards, the ESC offers strong resistance against water and dust particles. This level of protection allows reliable operation in a wide range of weather conditions and demanding environments.


• Capacitor Thermal Protection
  The ESC features built-in capacitor overheat protection designed to reduce the risk of damage caused by excessive load conditions. By preventing potential capacitor failure, the system adds an additional layer of safety and helps protect the ESC from severe damage.


• Dual Programming Options
  The ESC offers two convenient methods for parameter adjustment. Users can connect wirelessly via Bluetooth using the HW LINK smartphone app or with an LCD programming box. These options provide flexibility across different usage scenarios, allowing drivers to tune the system according to their personal preferences



Specification
