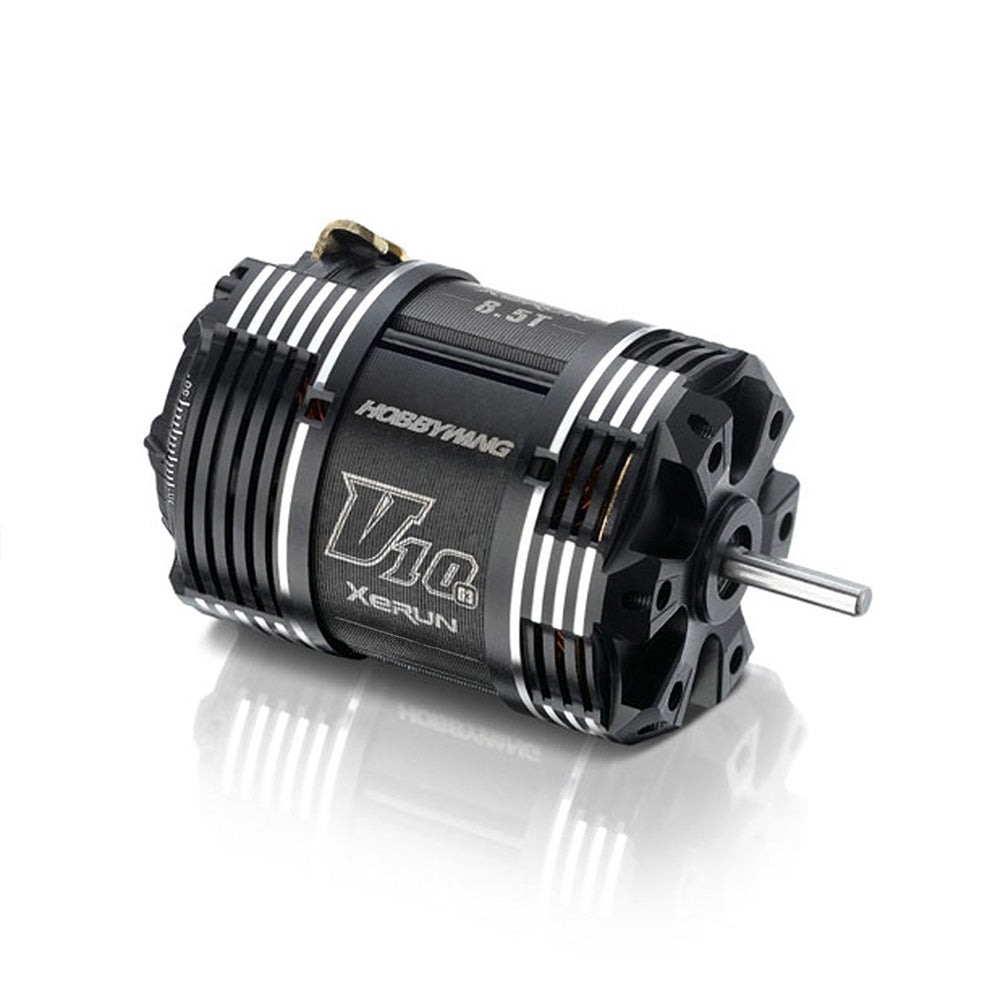

DESIGN matters. It’s a motor specially designed for Extremely High-Level Racing. The RMP of G3 Stock motor is significantly improved, the KV & torque are improved by 16% and 4% respectively, compared with the V10 G2 Stock motor.

• Lightweight. The G3 Modified & Stock motors only weigh 161g & 132g respectively, the weights are reduced by 11% & 21% when compared with the previous generation G2 motors.
• The built-in high precision Hall sensor combined with the high precision and balanced rotor guarantee outstanding linearity of the motor.
• The mechanical timing can be adjusted finely and smoothly; the skid-proof lines on the rear end plate of the motor guarantee the stability of the timing after adjustment. For G3 Stock motors (10.5T~25.5T), the timing is adjustable from 30 degrees to 60 degrees; for Modified motors (3.5T~8.5T), the timing is adjustable from 20 degrees to 50 degrees.
• The motor case is designed to be easy to dismantle for maintenance purposes and for the replacement of common wearing parts.
• The special shell design which makes the stator core expose to the air maximizes cooling. Big holes on the end plates of 10.5T~21.5T motors further help reduce heat; small holes on the end plates of 5.5T~8.5T motors effectively keep sand or dirt from getting inside and damaging the motor(s).
• The use of high-performance stator core, heat(200℃)-resistant wire, heat(200℃)-resistant rotor with strong structure, imported high precision and high strength bearings, and copper solder tabs with super current endurance guarantees outstanding performance and super durability.
• It’s compliant with IFMAR, ROAR, EFRA, BRCA rules, and certificated by RoHS, CE, FCC

Modified motors (3.5T-10.5T)

• 2 POLE Super High-Efficiency brushless motor
• Diameter/Length (mm): Ø=35.9mm L=51.2mm
• Shaft Diameter/ Length (mm): Ø=3.17mm L=13.3mm

Cautions:

To avoid short circuits, ensure that all wires and joints are well insulated before connecting the motor to related devices.

• Never allow this product or other electronic components to come in contact with water, oil, fuel, or other electro-conductive liquids. If it happens, stop the use of the product immediately and let it dry carefully.
• Read through the manuals of all power devices and chassis and ensure the power configuration is rational before using this unit.
• Never apply full throttle if the pinion gear is not mounted on, because (under the no-load circumstances) high RPMs may damage the motor.
• Connect all the devices carefully, you may not control the vehicle properly or encounter some unpredictable issues like damaged components if any poor connection exists.
• To avoid possible damage (resulting from overheat) to the product, please control the soldering time within 5 seconds when soldering the motor wires (a soldering iron with a power of at least 60W is needed).
• Stop immediate usage once the casing of the motor exceeds 100℃/212℉ as high temperature may damage the motor and cause the rotor to demagnetize. Hobbywing recommends activating the “Motor Thermal Protection” (of the ESC).
