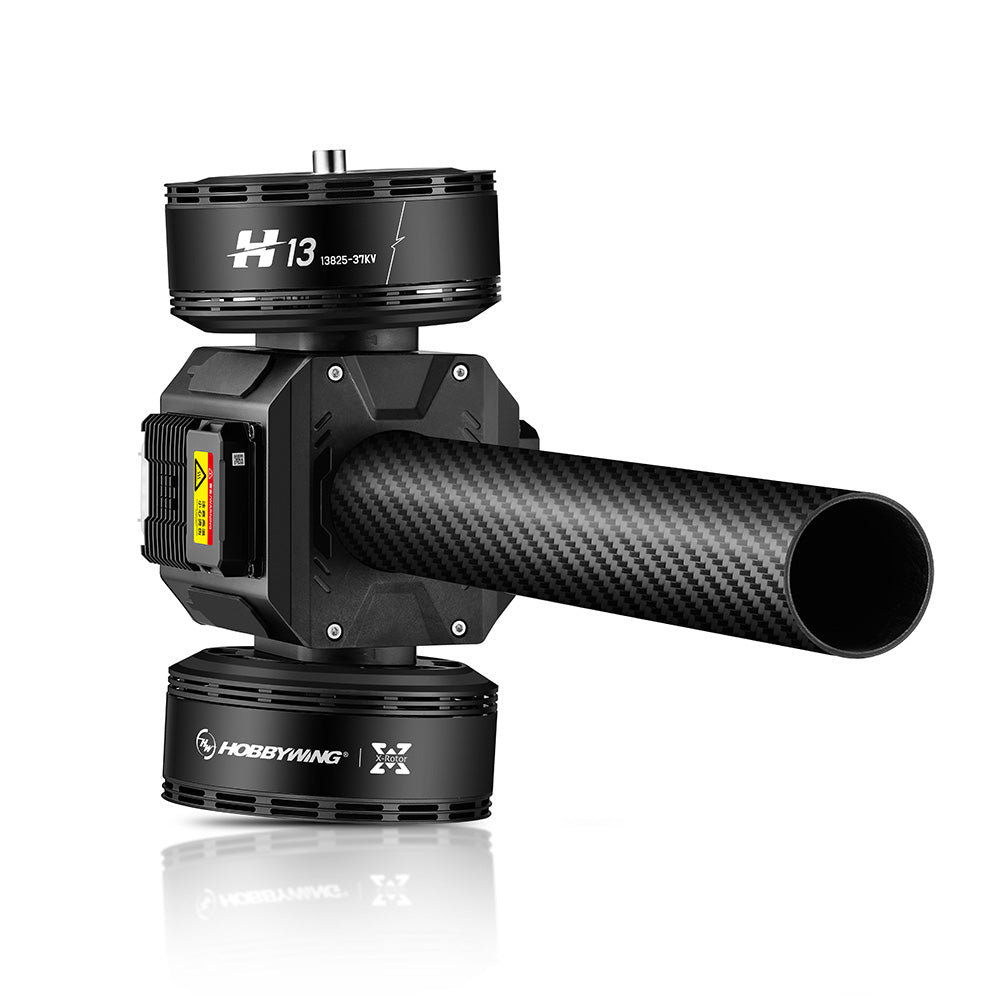

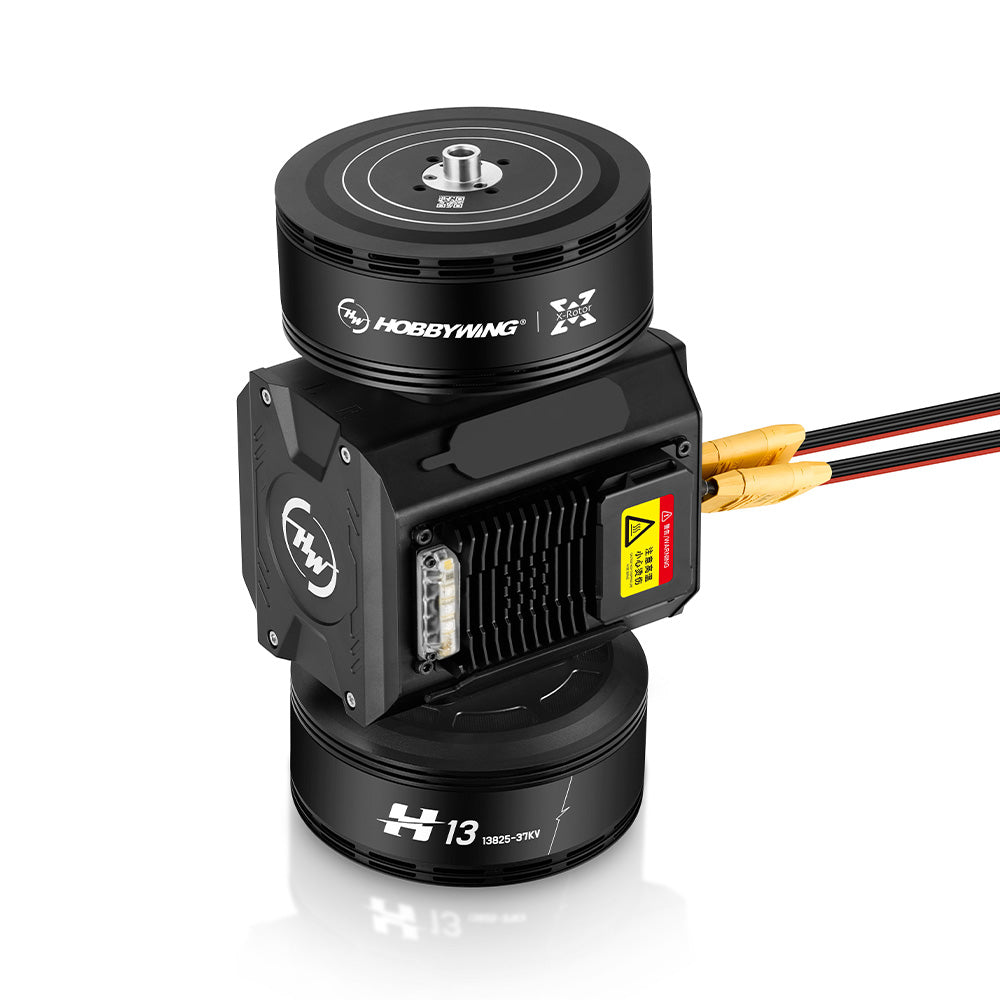

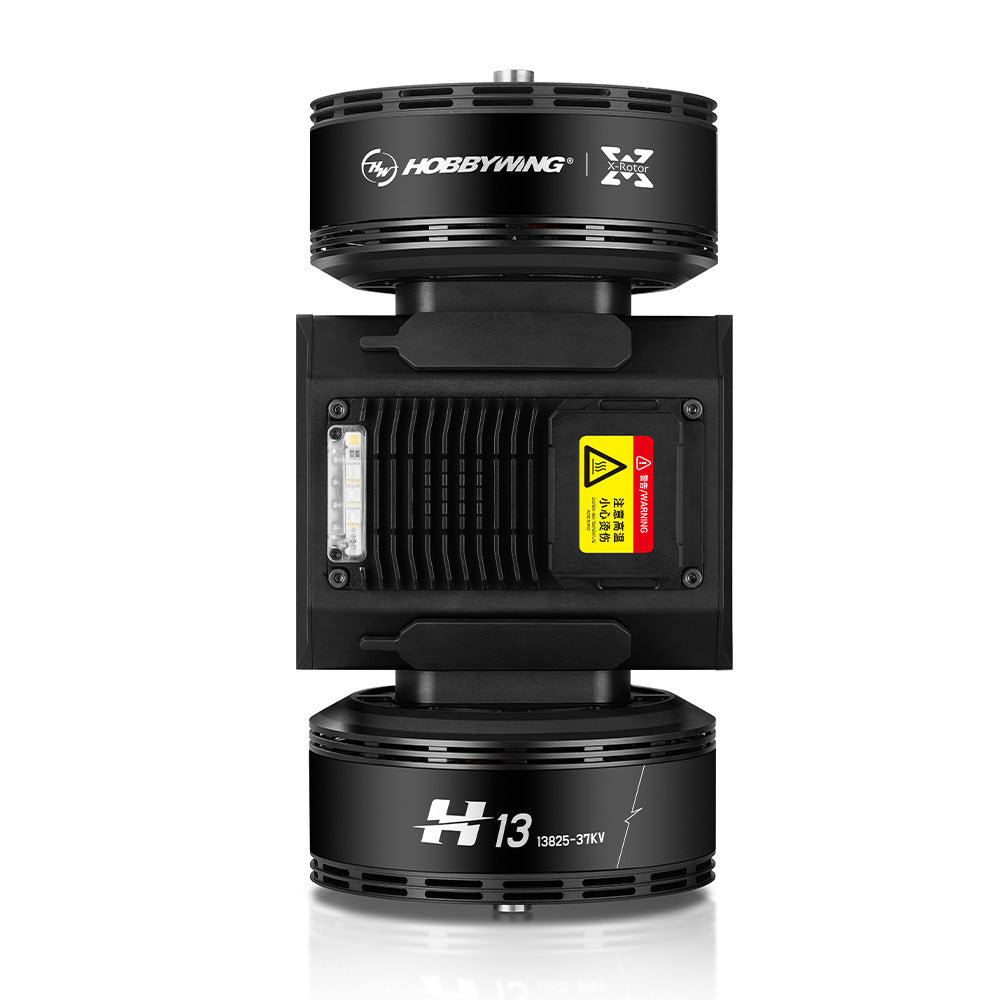

The HOBBYWING H13 13825 37KV brushless power system is a standard coaxial power kit in the industry for cargo and firefighting drones, offering a maximum thrust of up to 96 kg, compatibility with 24S LiPo batteries, and dimensions of 60 mm. This kit delivers reliable performance with an impressive efficiency rate of 85%. With an IP45 waterproof protection rating and efficient heat dissipation, this system serves as an all-in-one power solution for various applications, including small professional aerial photography, police operations, security, surveying and mapping, emergencies, and more.
The FOC ESC (Electronic Speed Controller) incorporates CAN communication and features a dual redundant design for both digital and PWM throttle options. It also includes power-on self-test, fault storage, over-current protection, stall protection, and other protective functions.
*props sold separately
Motor Type: | 13825-37KV - Coaxial |
Arm Tube Diameter: | 60mm |
KV: |
37 |
Weight with wire: |
2450±50g |
Battery: |
24S/28S |
Recommended Take off: | 45kg/Rotor |
Prop: |
MP54x20″/ MP 57×20″ (Sold separately) |
ESC: | H150A-FOC |
Communication protocol | UAVCAN |
Double throttle signal | PWM+CAN |
