XRotor 10A Mini ESC


Title: XRotor 10A mini

MAP $9.69 | MSRP $15.00

ESC designed for multirotors
Reliable, High responsive brushless system

  • Special core program for multi-rotor controllers greatly improves throttle response.
  • Specially optimized software for excellent compatibility with disc-type motors.
  • All settings except the "Timing" are preset, making usage simple, highly intelligent and adaptive.
  • The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable.

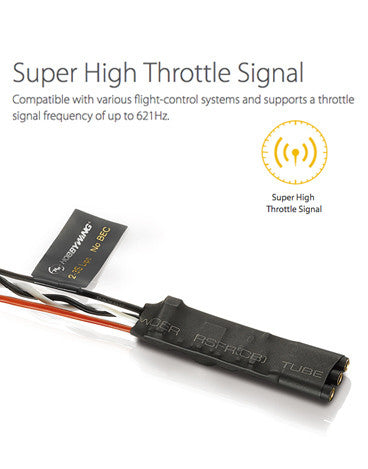

  • Compatible with various flight-control systems and supports a signal frequency of up to 621Hz (Note: all throttle signals over 500Hz are non-standard signals) .
  • Special drive chip has much better MOSFET driving effect than common driving circuit consisted of discrete components.
  • MOSFET with extra-low resistance brings high performance and great current endurance.
Model / SKU
XRotor-10A mini 3S / 30901008
Cont./Peak Current
10A /15A
Multicopter Applicable 250 Class Quadcopter
Input  2-3S LiPo
Bullet connector size
2.0mm Gold Connectors (Female)
BEC Type / BEC Output NO
Programming item
Timing (High/Intermediate),
Size / Weight 44.2x12.2x9.2mm, 9.2mm at capacitor
7g (0.23oz)

Official Warranty Available through & FS authorized dealer network in North America
For more information:
* All ESCs purchased from Hong Kong retailers do not confirm CE / North America regulation - deems non-warranty
