| Model |

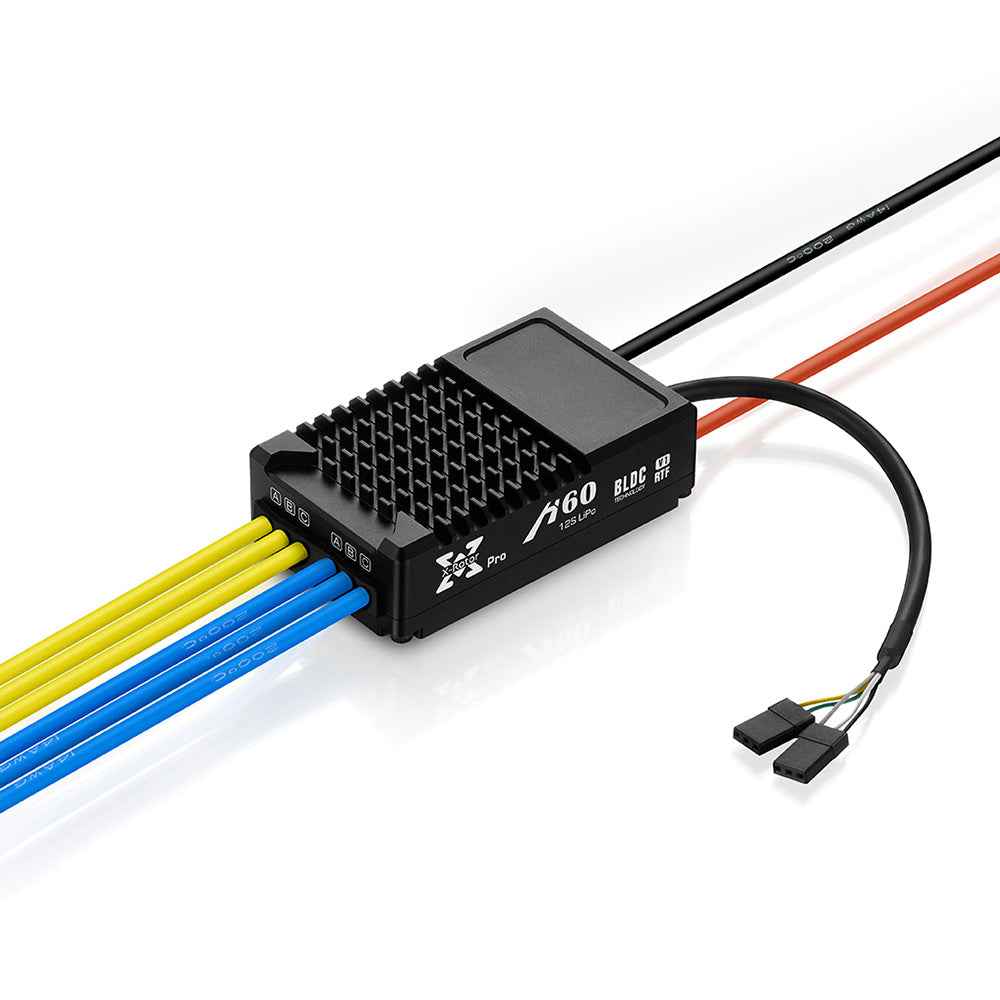

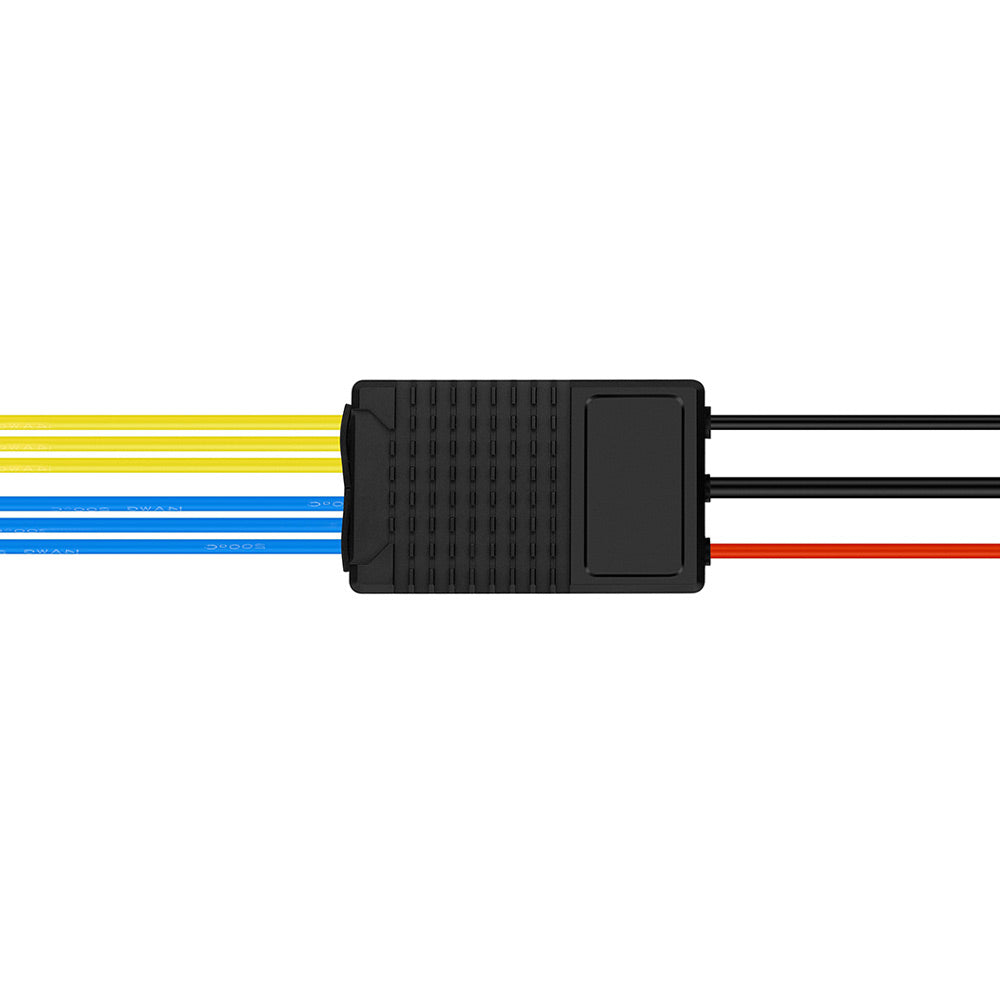

XRotor Pro H60A 14S 2in1 BLDC |
| Communication protocol |
CAN(Custom Serial port) |
| Throttle signal isolated |
Isolated |
| Continuous Current |
15A×2(Good heat dissipation)
|
| Specification |
60A×2（3s） |
| Voltage |
6-14S(18-63V)
|
| Weight without Wires |
117.4g |
| Size |
77.5x47x26.8mm
|
| Operating Pulse Width |
1100-1940μS |
Brushless ESC with BLDC drive, specialized designed for UAV drones.BLDC performs better compatibility and stability in driving. IP55 protection level (IP67 optional), dustproof and waterproof .Optimized structure design, easy to install on both multi-rotor and VTOL fixed-wing drones. Supports CAN & PWM dual throttle, better resist external electromagnetic interference. New Generation Black Box Feature, allowing millisecond-level data recording and fast data & fault analyzing.
