XRotor X13 series (Integrated Propulsion System) Page 2 - HOBBYWING North America

53KG+ 53KG+

HOBBYWING XRotor X13 power system delivers to a single-rotor load of 25-27kg/rotor. The maximum thrust of a single-rotor is 53kg+. FOC vector control, based on PMSM system algorithm optimization.
(Props sold separately.) Pair best with 5620 Propellers

HOBBYWING XRotor X13 power system delivers to a single-rotor load of 25-27kg/rotor. The maximum thrust of a single-rotor is 53kg+. FOC vector control, based on PMSM system algorithm optimization.
(Props sold separately.) Pair best with 5620 Propellers

X13 series Propellers

Overview
Spec
Download

The XRotor X13 brushless power system is a robust plant protection system designed for 25-27kg/rotor single-rotor loads, with more than 53kg of maximum thrust. It is suitable for 50mm carbon fiber tube arms and is IPX6 waterproof, capable of withstanding rain pesticieds, salt spray, high temperatures, sand/dust, impacts, and mud/sand. Featuring FOC vector control and PMSM-based algorithm optimization, the system combines digital and analog throttle for increased flight stability, plus power-on auto-detection and safety functions such as voltage abnormality protection, over-current protection, stall protection, and others; all data is transmitted via CAN, and faults are logged for better analysis.

2 models available -45KV | 60KV
- Recommended Takeoff Weight: 25-27kg/axis
- Total Weight: 2800g
- Maximum Thrust: 53kg+(54V, Sea Level)
- Operating Temperature: -20°C-50°C
- Powertrain Arm Tube Outer Diameter: 50mm
- Protection Grade: IPX6
- Total Weight: 4060g( INC. prop)
- upport throttle Frequency: 50-500Hz
UAV Integrated power system
The whole power system has been assembled before leaves the factory. Unpack and take out the power kit to install on the rack of plant-protection plane as per the rotation direction of motor.

ESC
- Continuous Current: 80A (Non-hermetic Ambient Temperature ≤60°C)
- Maximum Current.: 200A (Non-hermetic Ambient Temperature ≤60°C)
- Throttle Pulse Width.: 1050-1950μs
- Recommended LiPo Battery:
Motor(45KV | 60KV)
- Stator Size: 138*25
- Motor Size: 148*63.5mm
- KV: 60kv or 45kv
Propeller
- Diameter Pitch: 56*20 inch
- Single propeller weight: 292g
- Weight (INC. adapter): 805g
-- X13 18S 45 KV system
- R(Stator Resistance) 21.6mΩ
- L(Stator Self Inductance) 29.147
- M ( Stator Mutual Inductance ) 41.839 μH
- Vpk/Krpm 13.7Vpk/Krpm
- Vrms/Krpm 8.92Vrms/Krpm
- No. of Poles 21 pair
- Moment of Inertia 2929249 g㎡
- Shaft Time Constant about 0.096 (for your reference)
- voltage, power ratings
User Manual & Installation guide
- User's manual: XRotor X13-45kv-18S.pdf >
- User's manual: XRotor X13-60kv-14S.pdf >

XRotor X8 system $339.99 USD $420.00 USD

XRotor EPS 4314 propeller $119.99 USD $150.00 USD

XRotor EPS 36190 propeller Sold Out

XRotor EPS 3411 propeller $79.99 USD $100.00 USD

XRotor EPS 2480 Propeller Sold Out

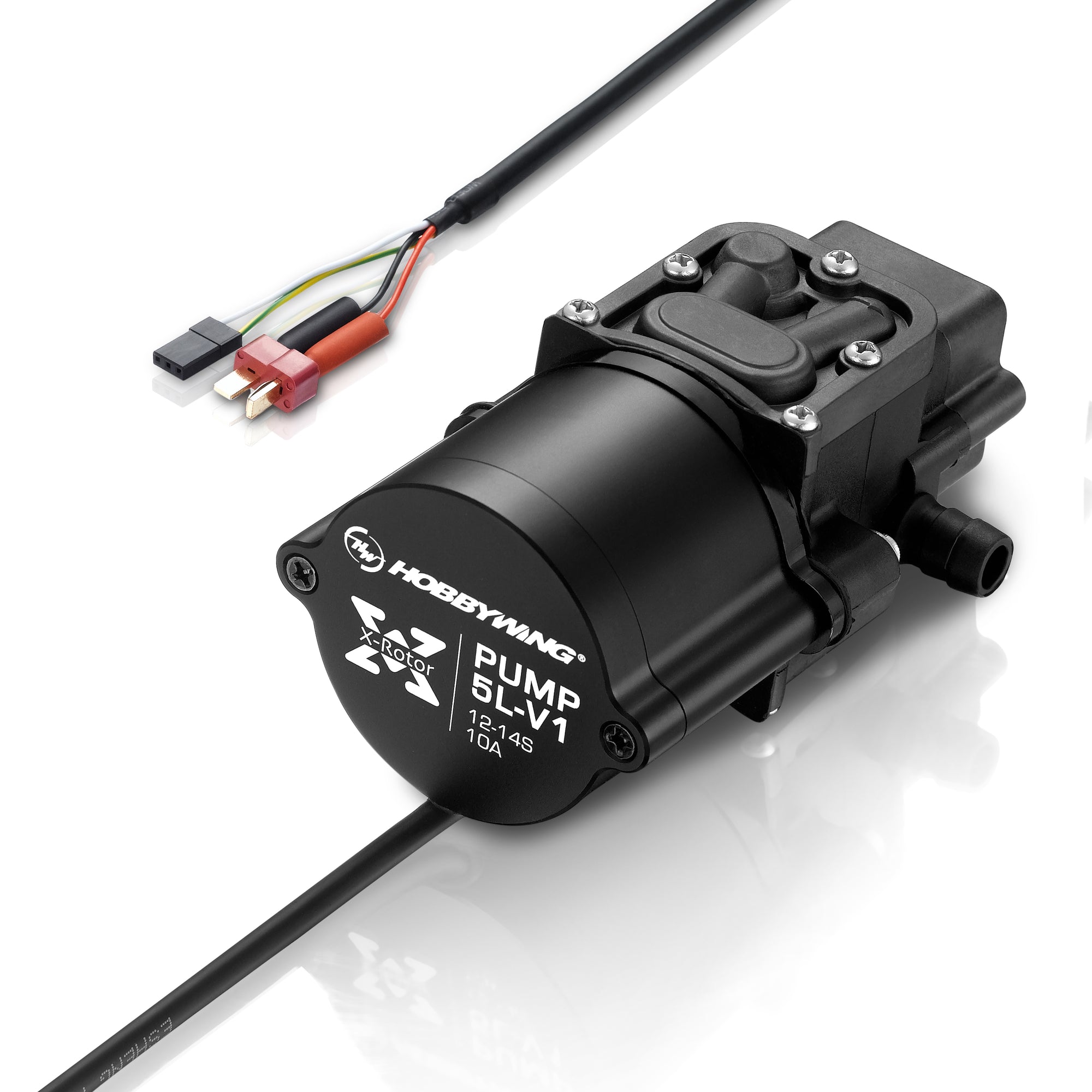

XRotor PUMP 5L Sold Out
