XR10 Pro ESC G2S (2022) Combo

38020325

Combo: B - ESC+ V10 G3 motor (4.5T)

★★★★★

MAP $309.99 | $438.00

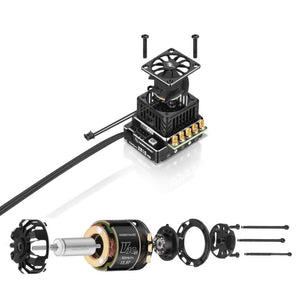

    What's in the box?
    • 1x XR10 Pro G2S ESC (2022)
    • Depending on the Motor Selection
      1x XERUN V10 G3 Competition Brushless Motor
    • 1x Bonus item(s)
      (2) Input wires & (3) Output wires -PRE-SOLDERED-
      (2) x cooling fan (comes with one backup fan)
      Dual capacitors
      Decals
      Parts: heat tubes, double tape, nylon cable zap traps

    Modified Editions

    Combo Name P/N
    Motor included in Combo
    XR10Pro-B
    38020325 V10 4.5T G3
    XR10Pro-C
    38020326 V10 5T G3
    XR10Pro-D
    38020327 V10 5.5T  G3
    XR10Pro-E
    38020328 V10 6T  G3
    XR10Pro-F
    38020329 V10 6.5T  G3
    XR10Pro-G
    38020330 V10  7T  G3
    XR10Pro-H
    38020331 V10 7.5T G3
    XR10Pro-J 38020333 V10 8.5T G3

    Spec Class Editions

    Combo Name P/N
    Motor included in Spec Combo
    XR10Pro-K
    38020334
    V10 13.5T G4
    XR10Pro-L  38020335
    V10 17.5T G4
    XR10Pro-M 38020336
    XV10 21.5T G4



    XR10 Pro G2S (2022) ESC

      Edition package

      Stealth
      P/N 30112613
      Wires gauge:
      (2) power wires & (3) Phase wires
      13 AWG
      (Lightweight Ultra-flex)
      FFD Technology*
      Yes
      Weight W/O wires  52.64g

       *FFD=Frameless Fan Design (Patented)

       User's Manual
      Learn more >

      G3 Modified motors (4.5T-10.5T / 25.5T)

      • 2 POLE Super High-Efficiency brushless motor
      • Diameter/Length (mm): Ø=35.9mm L=51.2mm
      • Shaft Diameter/ Length (mm): Ø=3.17mm L=13.3mm (25.5T L=13mm)

      G4 Spec motors (13.5T-21.5T)

      • 2 POLE Super High-Efficiency brushless motor
      • Diameter/Length (mm): Ø=35.8mm (1.41in) L=51.4mm (2.024in)
      • Shaft Diameter/ Length (mm): Ø=3.175mm (0.125in) L=13.9mm (0.547in)
      p/n V10 T kv LiPo (Ω) No-load
      Current
      (A)
      Max.
      Output
      Power
      (W)
      Current
      @Max.
      Output
      Power (A)
      Stock
      Rotor
      Weight
      (g)
      30401102 G3 4.5 7340 2S

      0.0029

      6.7
      457 122 Φ5-12.3 163
      30401116 G3 5 6500

      2S

      0.0035
      5.5 443 118 Φ5-12.3 159
      30401107 G3 5.5 5900

      2S

      0.0041
      5 426 115 Φ5-12.5 163
      30401117 G3 6 5500

      2S

      0.0048
      4.5 415 113 Φ5-12.5 162
      30401109 G3 6.5 5120

      2S

      0.0056
      3.9 402 113 Φ5-12.5 164
      30401118 G3 7 4800

      2S

      0.0065
      3.5 364 106 Φ5-12.5 161
      30401110 G3 7.5 4420

      2S

      0.0074
      3.3 346 100 Φ5-12.5 161
      30401119 G3 8 4200

      2S

      0.0089
      3.0 320 88 Φ5-12.5 160
      30401111 G3 8.5 3970

      2S

      0.0097
      2.8 298 84 Φ5-12.5 163
      30401140 G4 13.5 3950 2-3S 0.021 4.5A 322 70 Φ7-12.5*25.2-HUS 149
      30401141 G4 17.5 3020 2-3S 0.036 3.7A 234 51 Φ7-12.5*25.2-HUS 149
      30401142 G4 21.5 2500 2-3S 0.055 3.0A 173 38 Φ7-12.5*25.2-GUS 148
      30401133
      G3
      25.5
      1780
      2-3
      0.102
      2.1
      95
      23
      Φ7-12.3
      -U
      145

       G3 motor User's Manual

       G4 motor User's Manual
