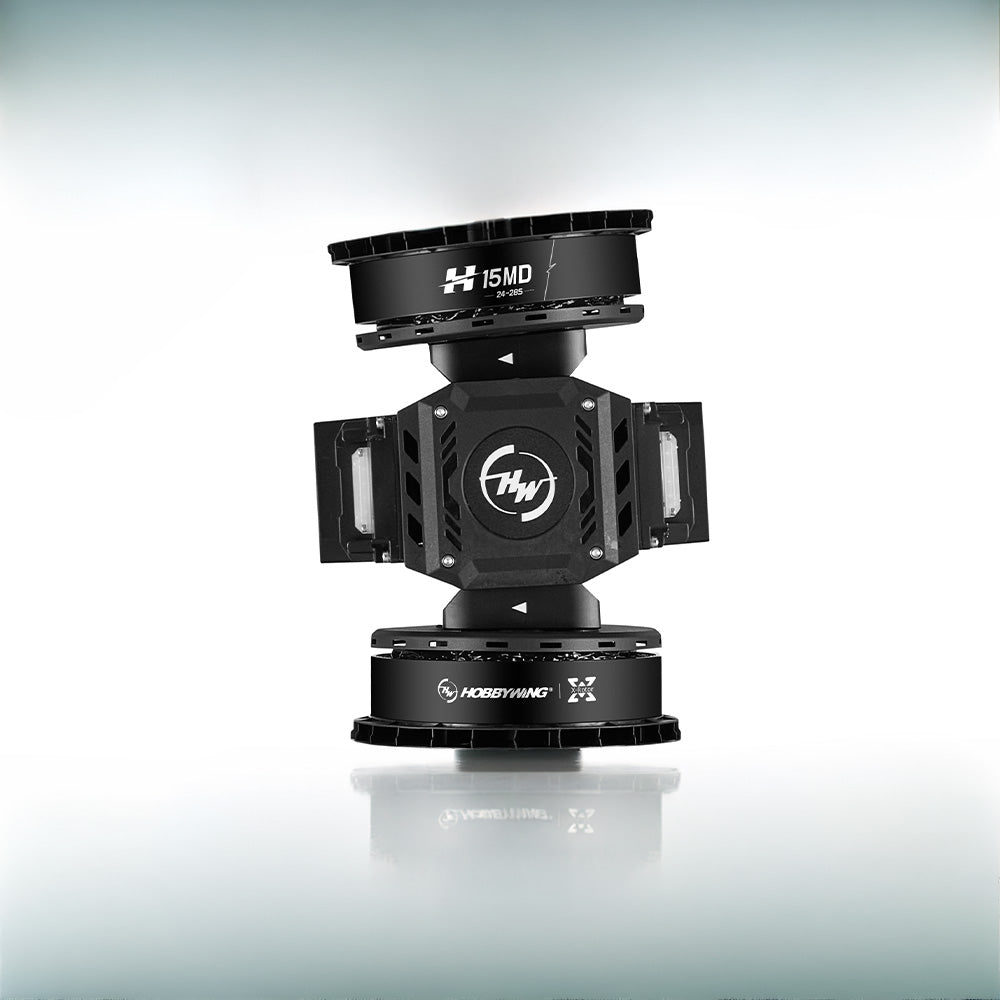

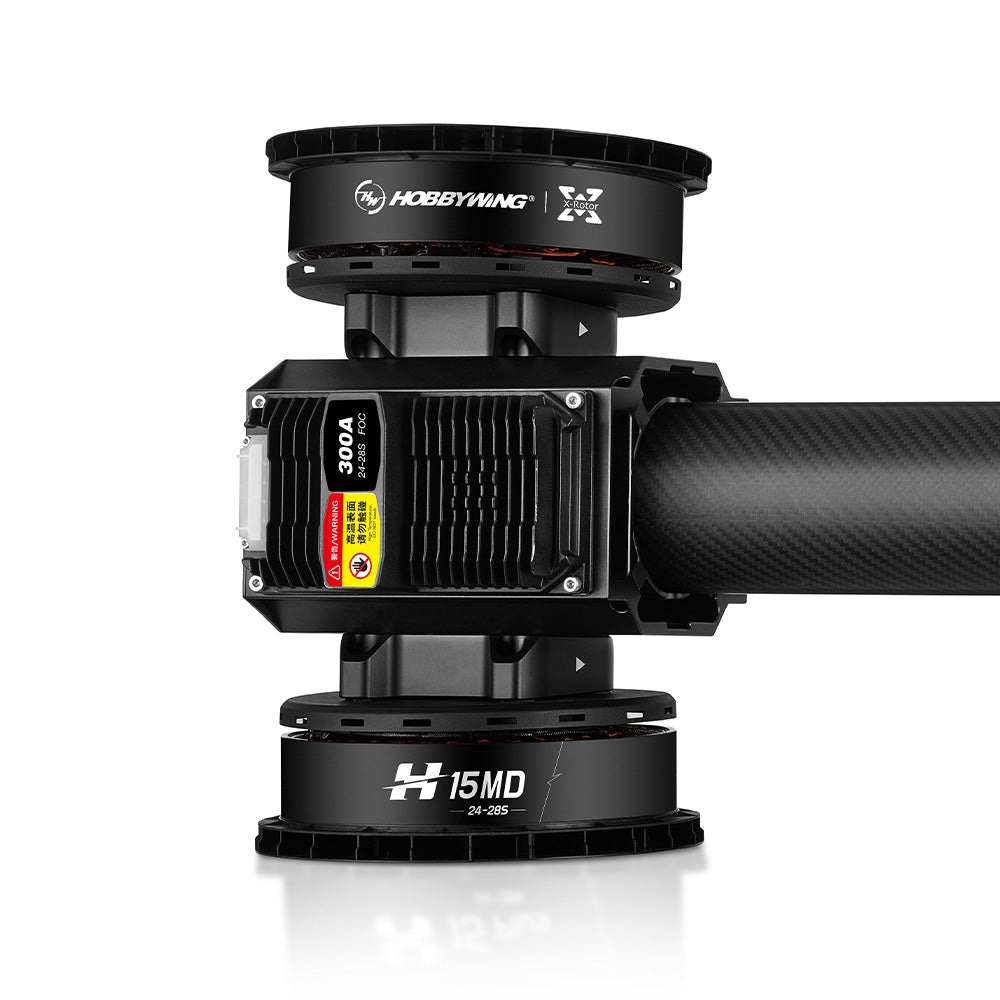

XRotor H15MD 24S (Integrated Propulsion Dual System)

38040366

The HOBBYWING H15MD 15623 35 KV brushless power system is a standard coaxial power kit in the industry for cargo drones, offering a maximum thrust of up to 145 kg, compatibility with 24-28S LiPo batteries, and dimensions of 80 mm. This kit delivers reliable performance with an impressive efficiency rate of 85%. With an IPX6 waterproof protection rating and efficient heat dissipation, this system serves as an all-in-one power solution for various applications, including small professional aerial photography, police operations, security, surveying and mapping, emergencies, and more.

The FOC ESC (Electronic Speed Controller) incorporates CAN communication and features a dual redundant design for both digital and PWM throttle options. It also includes power-on self-test, fault storage, over-current protection, stall protection, and other protective functions.

*props sold separately

Specifications

Spec Sheet / Manual / Load Parameters / Installation

Motor Type: 15623 35KV - Coaxial
Arm Tube Diameter: 80mm

KV:

35 KV

Weight with wire:

2800±100 g

Battery:

24S-92V / 28S-108V
Recommended Take off:  60kg/Rotor
Max Thrust 145kg/Rotor
Prop: MFC 63x24 (Sold separately)
ESC: H300A-FOC
Communication protocol UAVCAN
Double throttle signal PWM+CAN
