Higher Payload Capacity, Longer Flight Endurance
| Spec | XRotor PRO 3110 | XRotor PRO 3115 | XRotor PRO 3120 |
|---|---|---|---|
| Available KV | 900KV / 1250KV | 650KV / 900KV * | 700KV / 1000KV |
| Motor size | Φ37.2×H29.2mm | TBC | Φ37.2×H39.2mm |
| Stator size | Φ31×15mm | TBC | Φ31×15mm |
| Slot & pole | 12N14P | TBC | 12N14P |
| Recommended battery | 6S LiPo | TBC | 6S (1000KV) / 8S (700KV) LiPo |
| Max thrust | 3.87kg (900KV) / 4.25kg (1250KV) | TBC | 7.32kg (700KV) / 6.29kg (1000KV) |
| Max power | 1686W (900KV) / 1969W (1250KV) | TBC | 3086W (700KV) / 2930W (1000KV) |
| Weight (with wire) | 100g | TBC | 160g (700KV) / 158g (1000KV) |
| Wire | 18AWG (900KV) / 16AWG (1250KV), 250mm | TBC | 16AWG, 300mm |
| Recommended ESC | XRotor FPV G2 65A 4in1 | TBC | G2 65A 4in1 (1000KV) / RTF 100A 4in1 8S Lite AT (700KV) |
| Shaft / mount | Φ5mm shaft · Φ19mm-4×M3 | Φ5mm shaft · Φ19mm-4×M3 | Φ5mm shaft · Φ19mm-4×M3 |
Specifications from HOBBYWING product pages. 3115 PRO specifications to be confirmed. * KV options taken from factory download listings.
Featuring fully hand-wound windings with a high slot fill rate, 0.1mm low-loss stator core laminations, and strong arc-shaped magnets, the motor delivers higher efficiency, providing enhanced endurance for long-duration and complex filming missions.

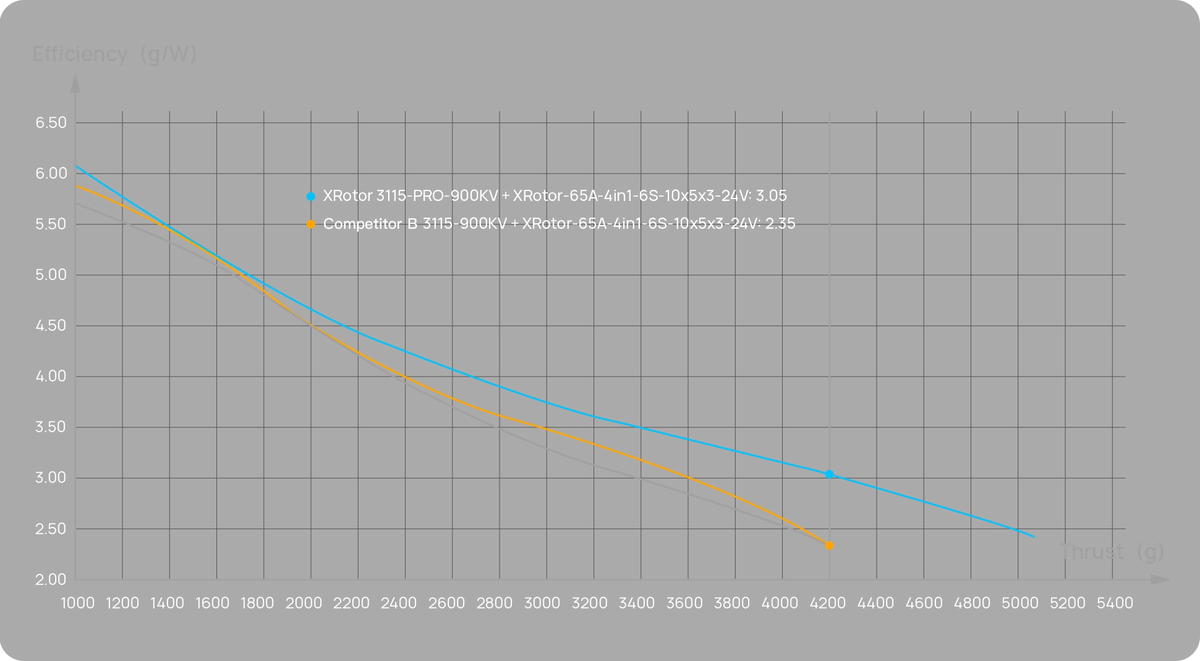

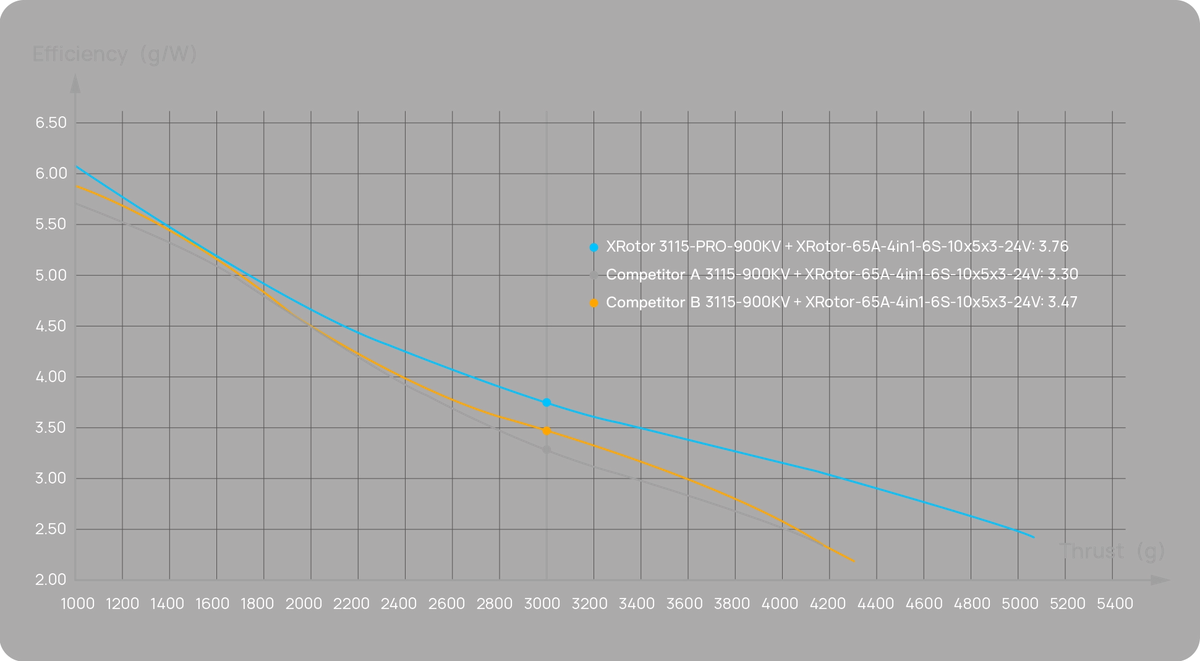

Taking the 3115-900KV paired with a 10×5×3 propeller as an example, compared with motors of the same specifications from other brands:
Higher Efficiency
Delivering stronger power output, the motor maintains ample power reserve and flight stability whether carrying large imaging equipment or performing high-speed chase shots. It also meets the high thrust capacity requirements of industrial heavy-load applications and FPV racing competitions.
Powerful Thrust
The newly designed high-power-density platform achieves a better balance between lightweight design and power output, combining agile control with robust power performance. It provides ample power reserves for complex flight scenarios such as dynamic tracking shots and high-speed maneuvers.
Compared to motors of the same specifications from other brands, the 3115-900KV paired with a 10×5×3 propeller delivers:
High Power Density| Motor Model | XRotor PRO 3115-900KV | Leading Brand Competitor 1: 3115-900KV | Leading Brand Competitor 2: 3115-900KV |
|---|---|---|---|
| Test ESC | XRotor-65A-4in1 | XRotor-65A-4in1 | XRotor-65A-4in1 |
| Test Propeller | 10x5x3 | 10x5x3 | 10x5x3 |
| Test Voltage (V) | 24 | 24 | 24 |
| Weight (g) | 129.2 | 121 | 114.1 |
| Thrust-to-Weight Ratio | 39.37 | 34.37 | 36.77 |
| Peak Thrust (kg) | 5.09 | 4.16 | 4.2 |
| Peak Power Density (kW/kg, output power) | 10.29 | 8.22 | 8.69 |
| 3kg Point System Efficiency (g/W) | 3.75 | 3.31 | 3.46 |
| Peak Thrust Temperature (Coil 200℃) / Safe Time (s) | 16 | 6 | 11 |
Efficient CoolingThe motor’s propeller mount adopts a high-density self-cooling fin structure, rapidly dissipating internal coil heat during flight and effectively reducing operating temperature rise. It maintains an ideal operating temperature under heavy-load and continuous-flight conditions, extending continuous operation time while improving motor reliability and durability.

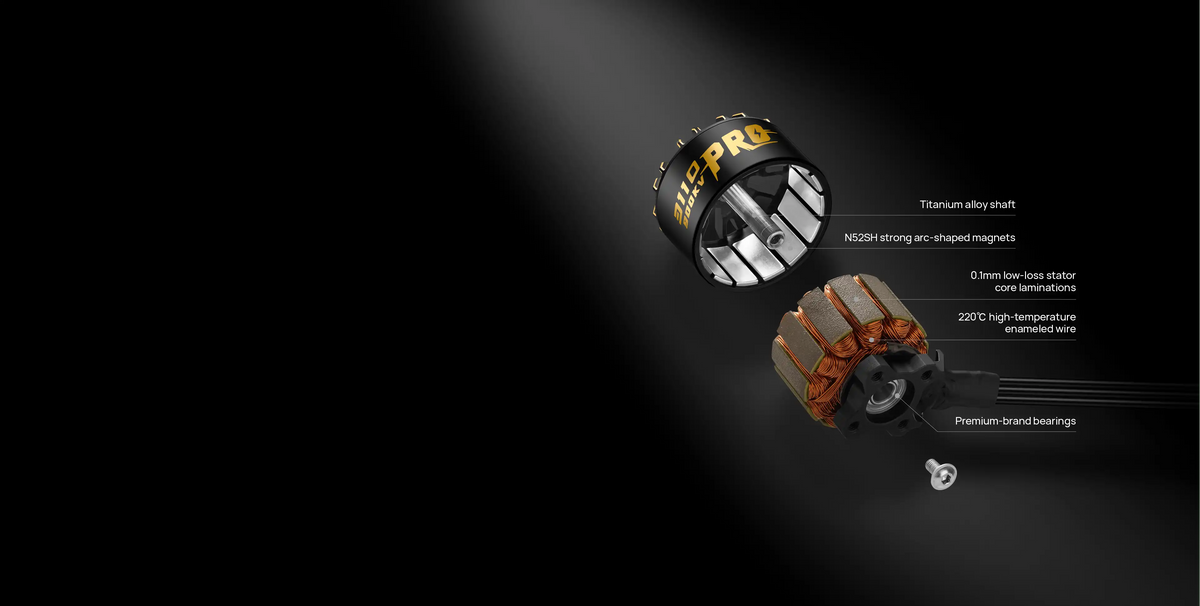

Premium Materials
