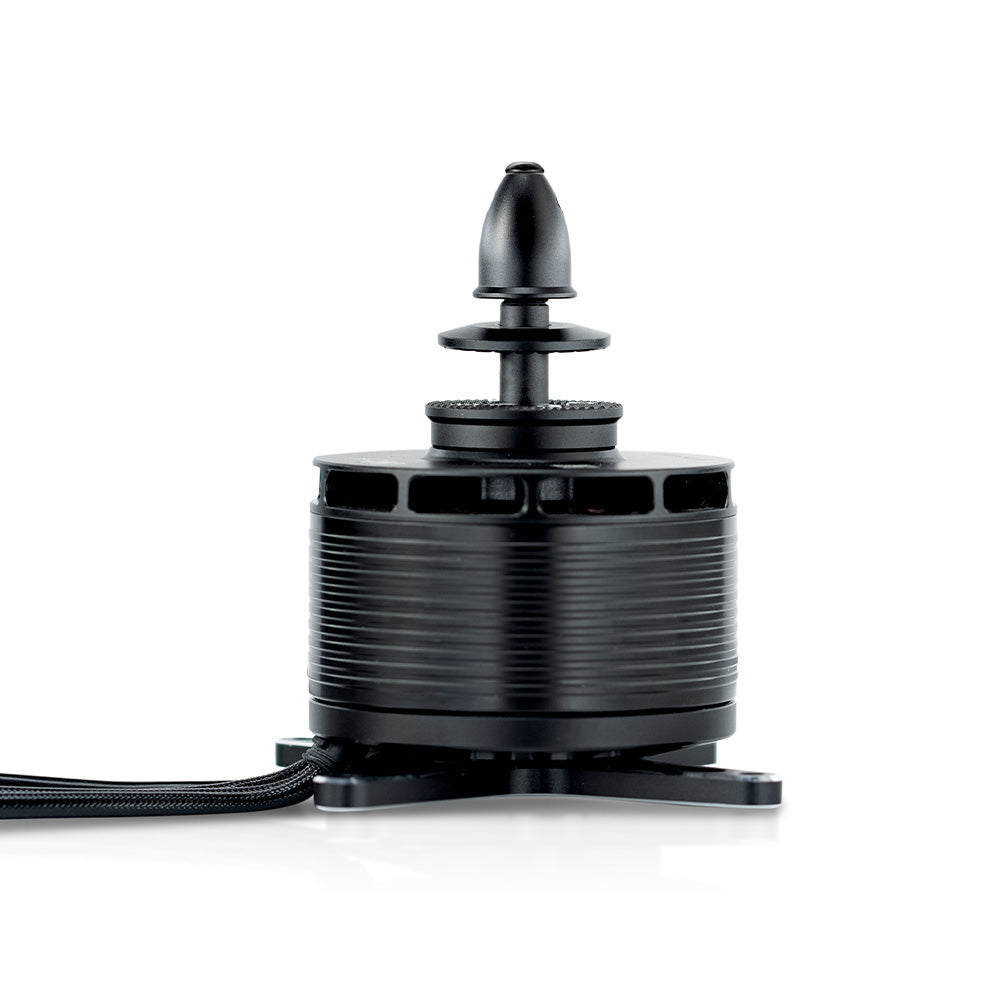

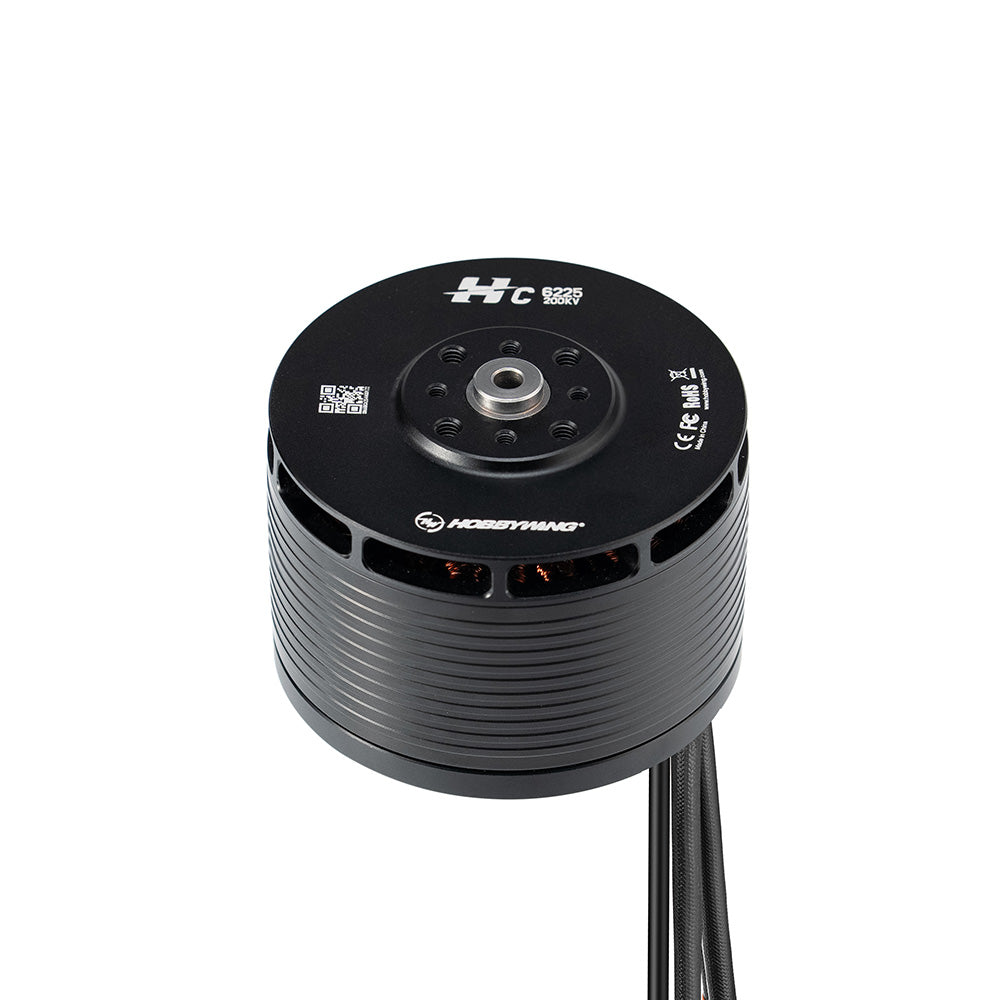

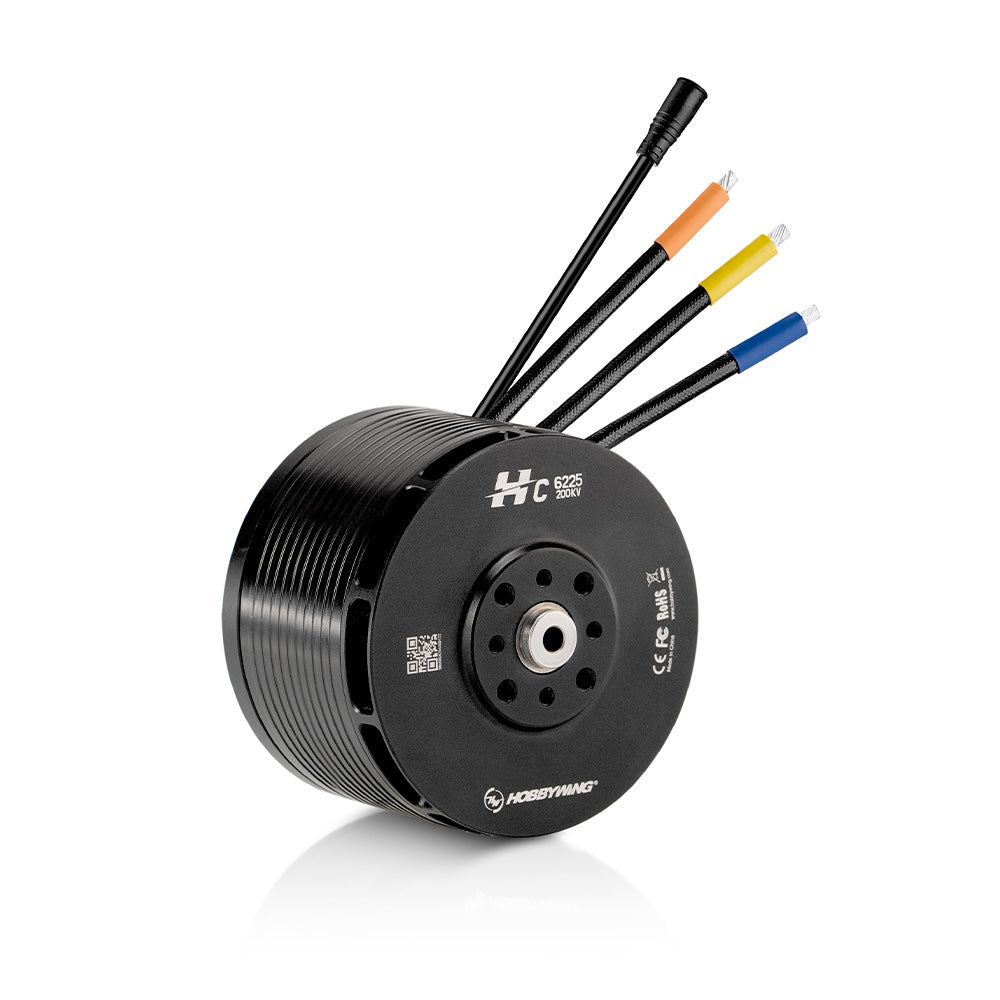

XRotor C6225 200KV IPC Motor

High Powered Fixed-Wing UAV Cruise Motor

C6225 motor, designed for fixed-wing UAV cruise setups, provides up to a maximum thrust of 30.4kg per rotor with 26″ propellers, ideal for setup weighing 45 to 55kg at takeoff. The optional IPC version will allow you to flexibly adjust propeller stop position to reduce forward flight drag and increase flight time when matched with HOBBYWING IPC ESCs.

Specifications

KV 200KV
Motor Size: Φ69*H50.9mm
Weight W/ wire: 530g

Battery:

LiPo-12S (48V)

Max Thrust:

14.8kg
Takeoff weight of single: 20~25kg
Rated power output 580W
Prop: 20×10/21×10
ESC:  XRotor Pro H130A 14S BLDC IPC
C Function: YES
