Hobbywing Technology
30406903

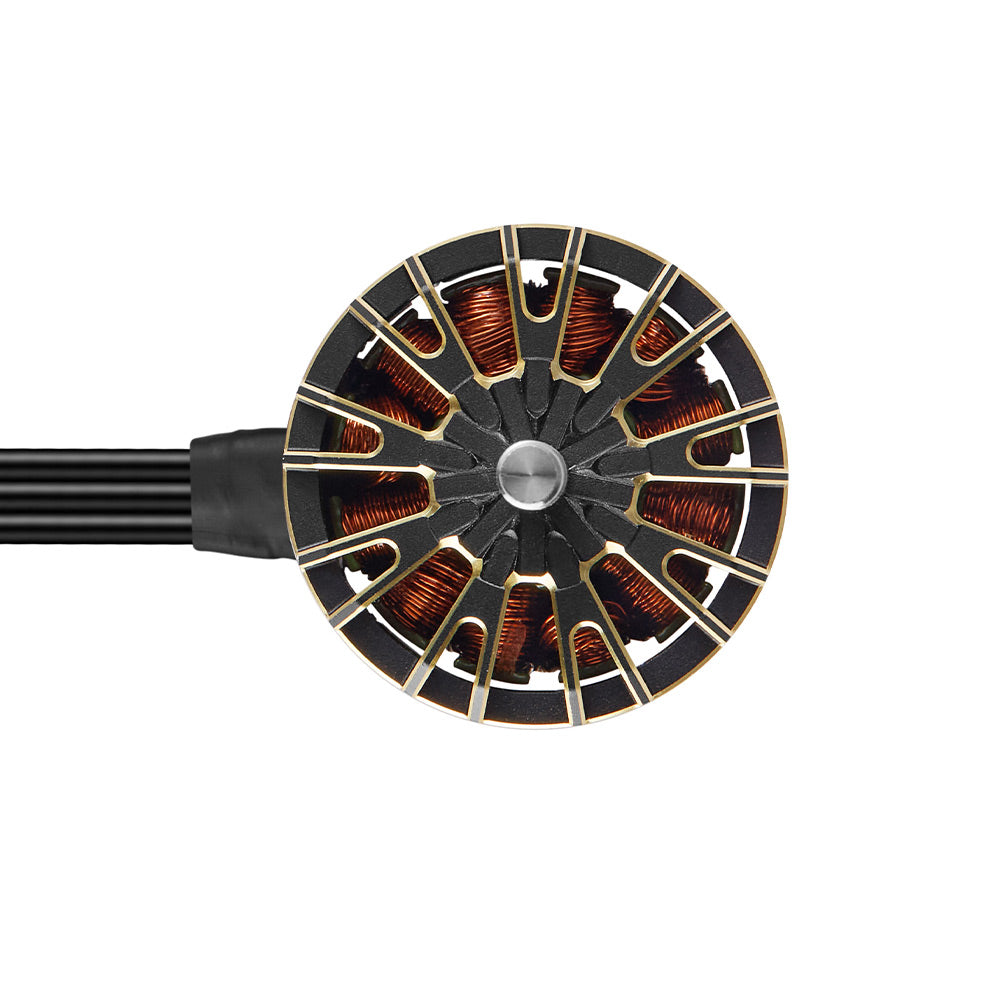

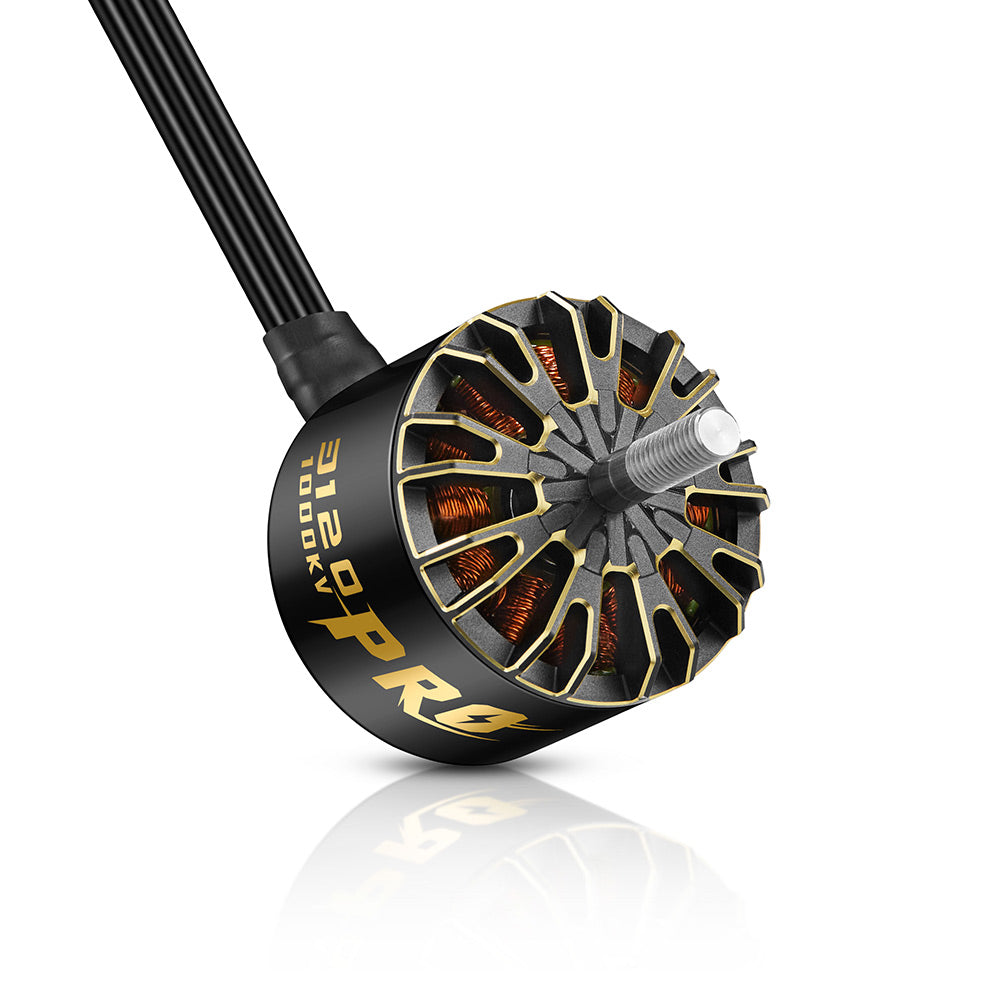

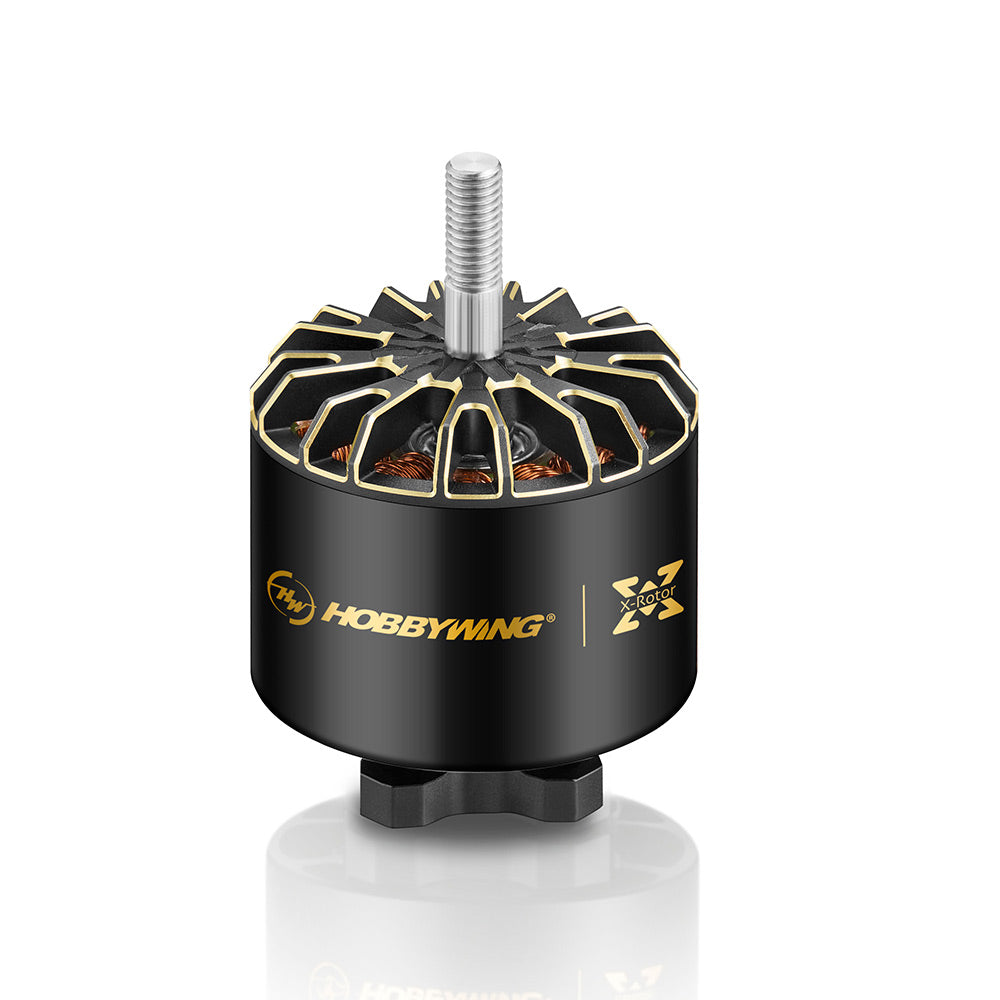

The HOBBYWING XRotor 3120 PRO motors deliver more thrust, higher efficiency, and longer flight times. Hand-wound windings, premium magnets, and a self-cooling design keep power strong and temperatures low, even under heavy loads. Whether you're lifting cinema rigs, chasing high-speed shots, or racing FPV, XRotor PRO is the reliable power core your build deserves.
XRotor Pro 3100 series brushless motor Brochure
| Motor Type | 3120 | 3120 |
| Motor Size (mm): | D37.2*39.2 | D37.2*39.2 |
| Maximum Current | 96.5A/16s | 122.2A/21s |
|
KV: |
700KV | 1000KV |
|
Weight with wire: |
160g | 158g |
|
Battery: |
8S / 32V | 6S / 24V |
| Max Thrust | 7.32kg | 6.29kg |
| Prop: | 9x5x3 10x5x3 11x4.5x3 |
9x4.5x3 9x5x3 10x5x3 |
| ESC: | RTF 100A 4in1 8s Lite | RTF 100A 4in1 8s Lite |
