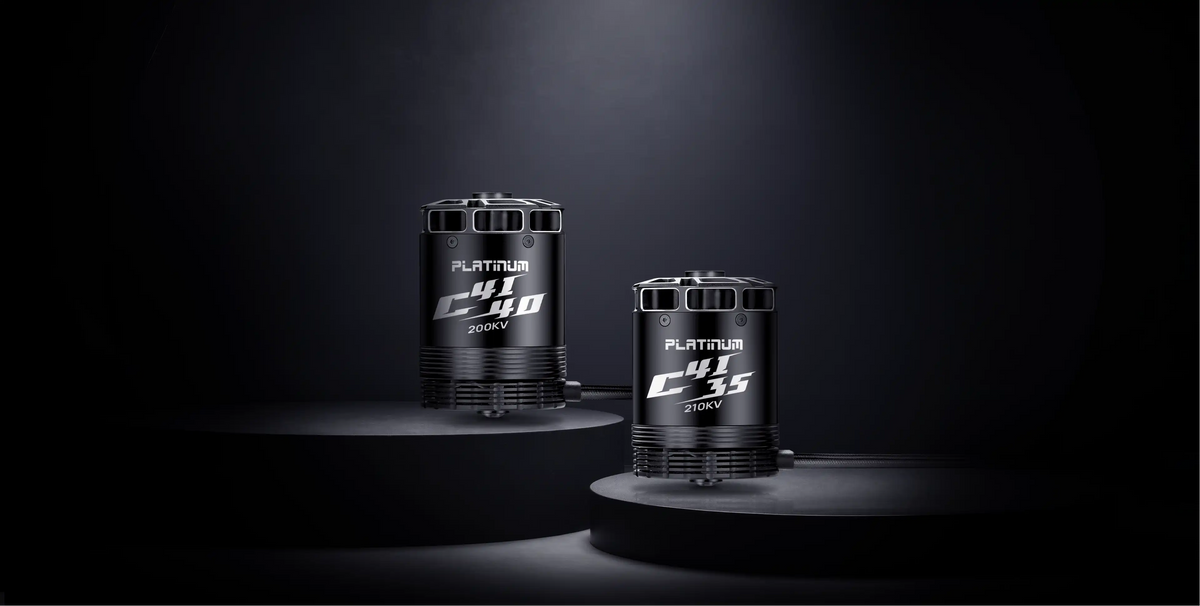

Platinum C4135 and C4140 fixed-wing RC motors

PLATINUM C4135 / C4140

Fixed-Wing Motor. Powerful performance, extended flight time.

View specifications

Powerful Performance,
Extended Flight Time

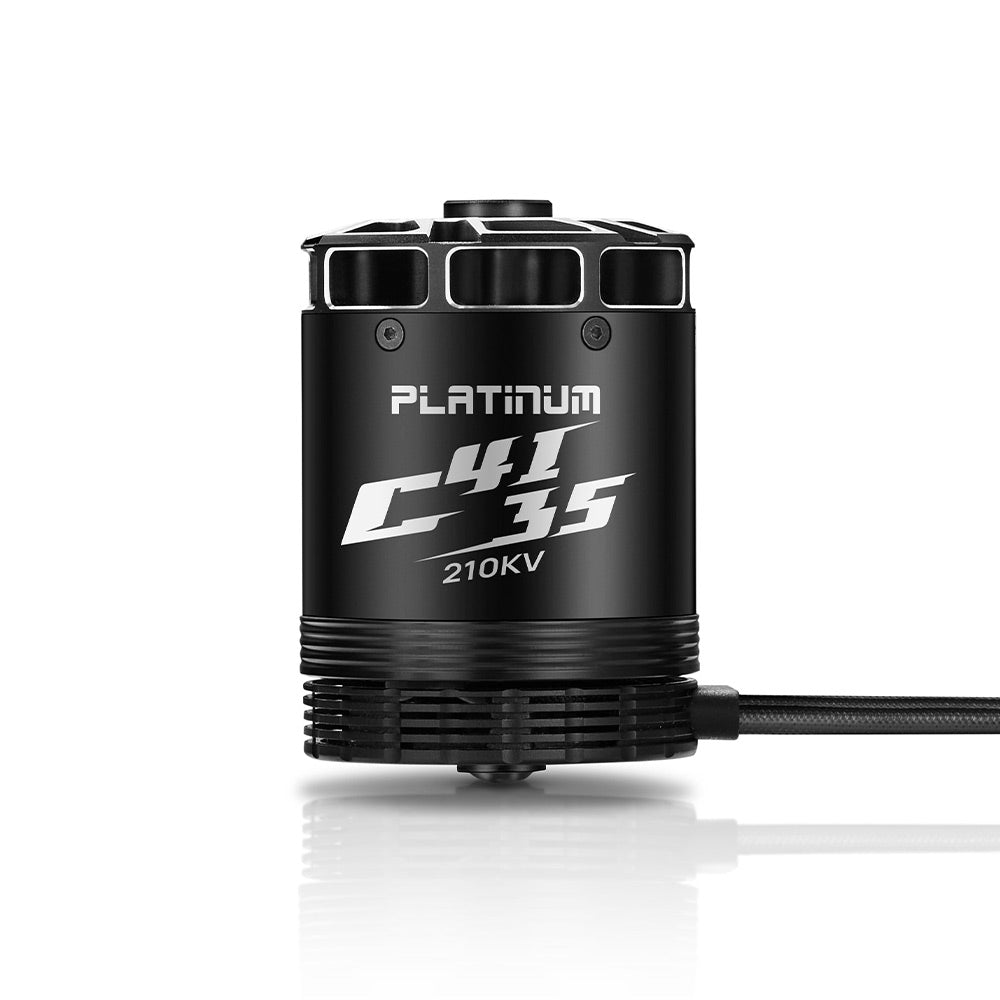

PLATINUM-C4135-210KV

Voltage44.4V (12S)

Propeller17x14 Folding Propeller

Max Thrust5.93kg

Max Thrust Operating Time77s

PLATINUM-C4135-250KV

Voltage44.4V (12S)

Propeller16x13 Folding Propeller

Max Thrust7.25kg

Max Thrust Operating Time64s

PLATINUM-C4140-200KV

Voltage44.4V (12S)

Propeller18x14 Folding Propeller

Max Thrust8.4kg

Max Thrust Operating Time91s

Available in C4135 and C4140 sizes with three KV options, this fixed-wing motor series is optimized for 16–18 inch propellers. Pair it with a high-pitch propeller for higher top speeds, built for the long-endurance, high-speed missions of fixed-wing RC aircraft.

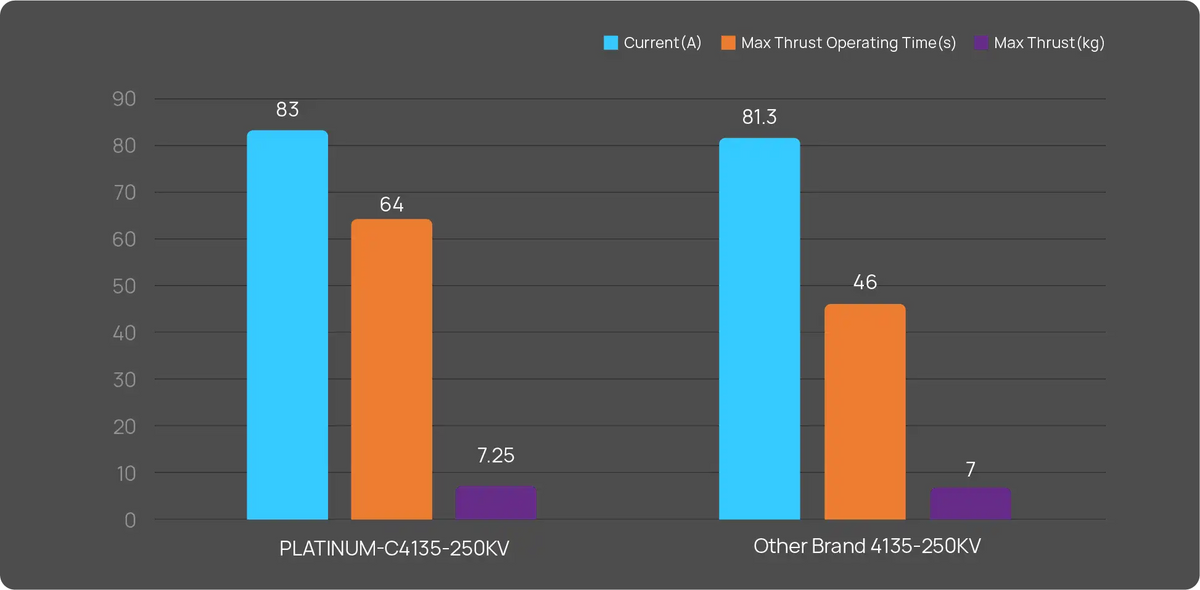

Thrust and operating time comparison chart

The PLATINUM C4135 250KV, paired with a 16×13 folding propeller, delivers up to 7.25 kg of thrust. Compared with equivalent motors from other brands, it provides 3.5% higher maximum thrust and over 40% longer operating time at maximum thrust.

Versatile Application Compatibility

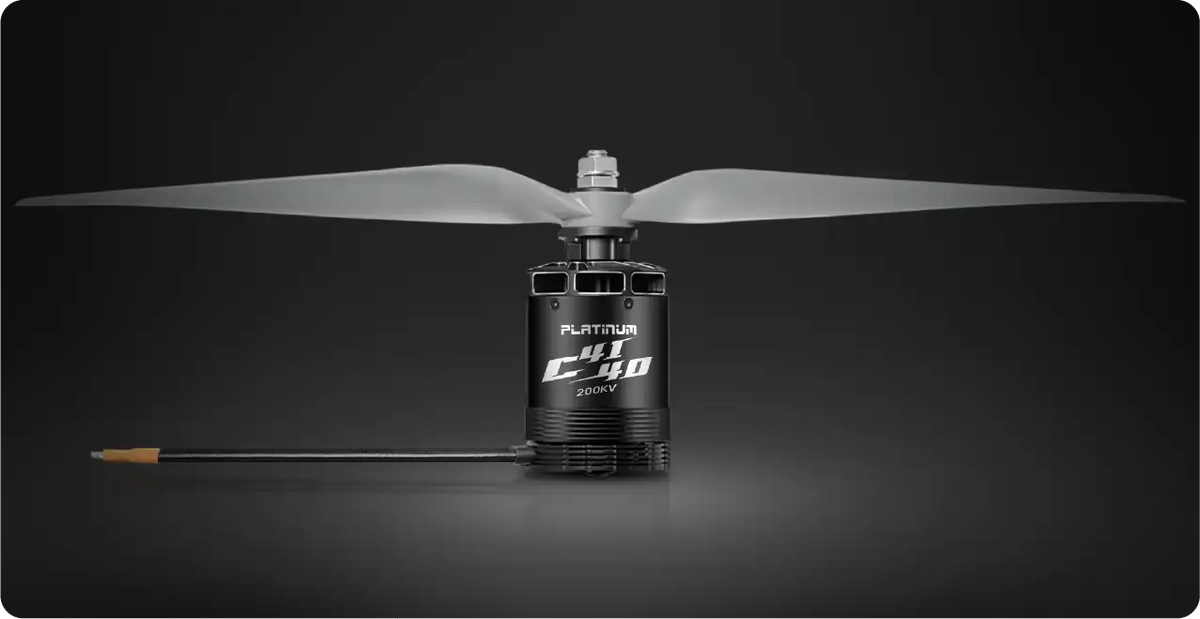

Tractor

With its standard propeller adapter, the motor supports both tractor and pusher setups, so it fits a wide range of fixed-wing aircraft.

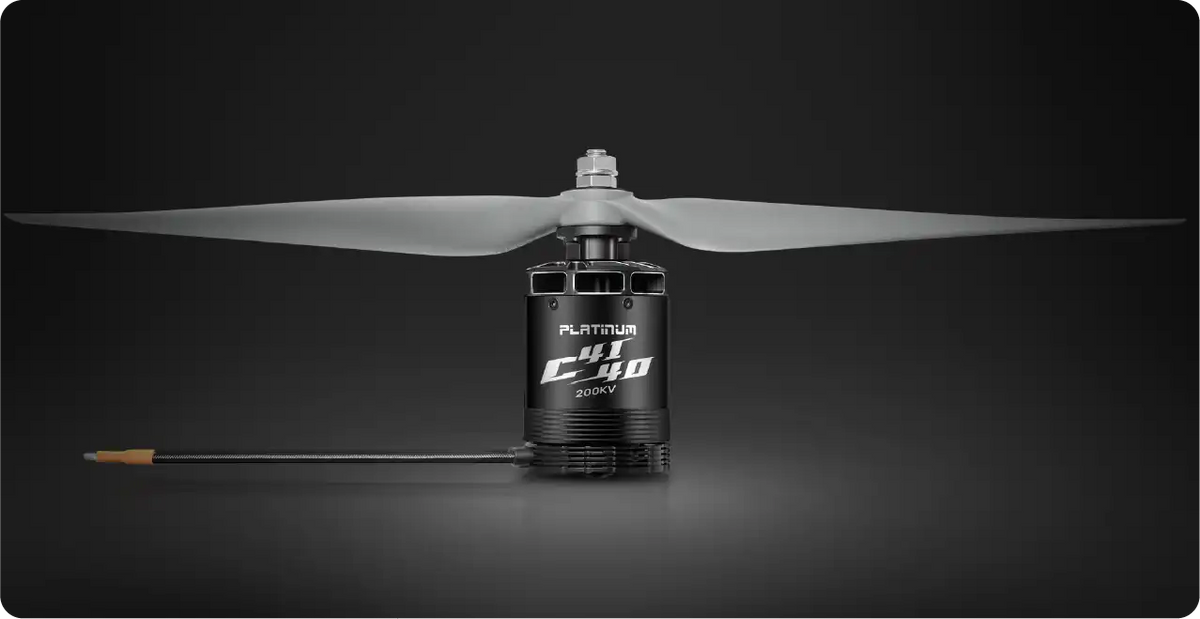

Pusher

Mount it as a pusher on airframes where the propeller sits behind the wing or tail.

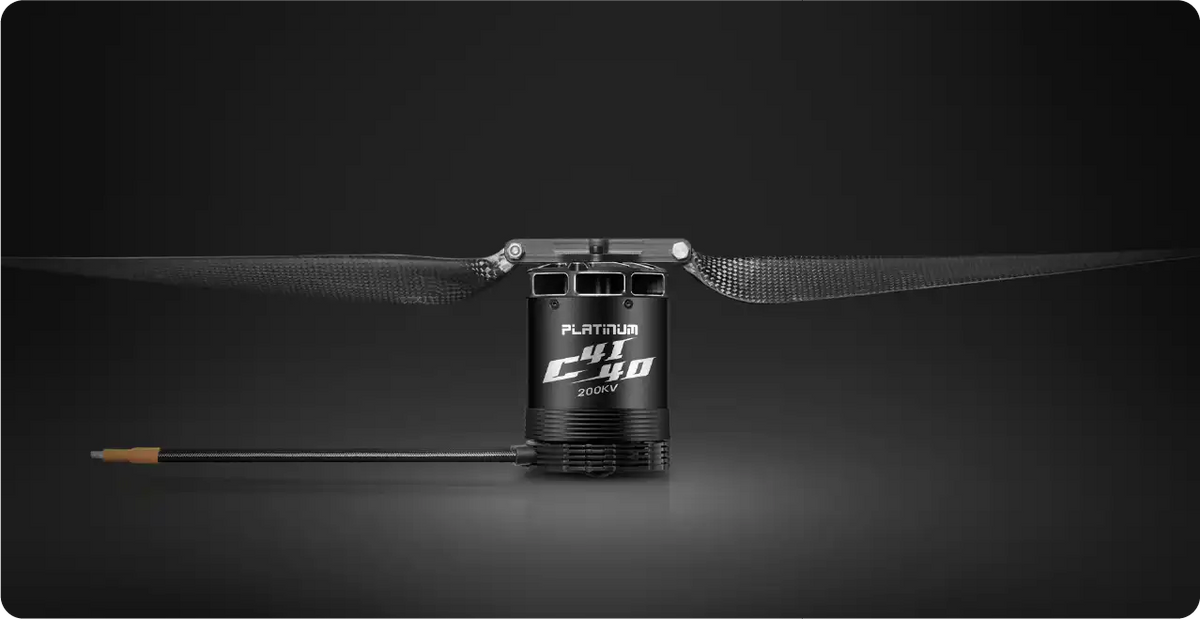

Folding propeller

Supports optional high-speed folding propellers, ideal for pusher applications with limited airframe space.

Optimized Heat Dissipation, Continuous Power Output

The rotor bracket pairs rectangular exhaust vents with a centrifugal fan design to reduce airflow resistance and turbulence. This improves heat dissipation by more than 20%, so the motor delivers steady power output over long runs.

Reliable Protection,
Against Complex Flight Environments

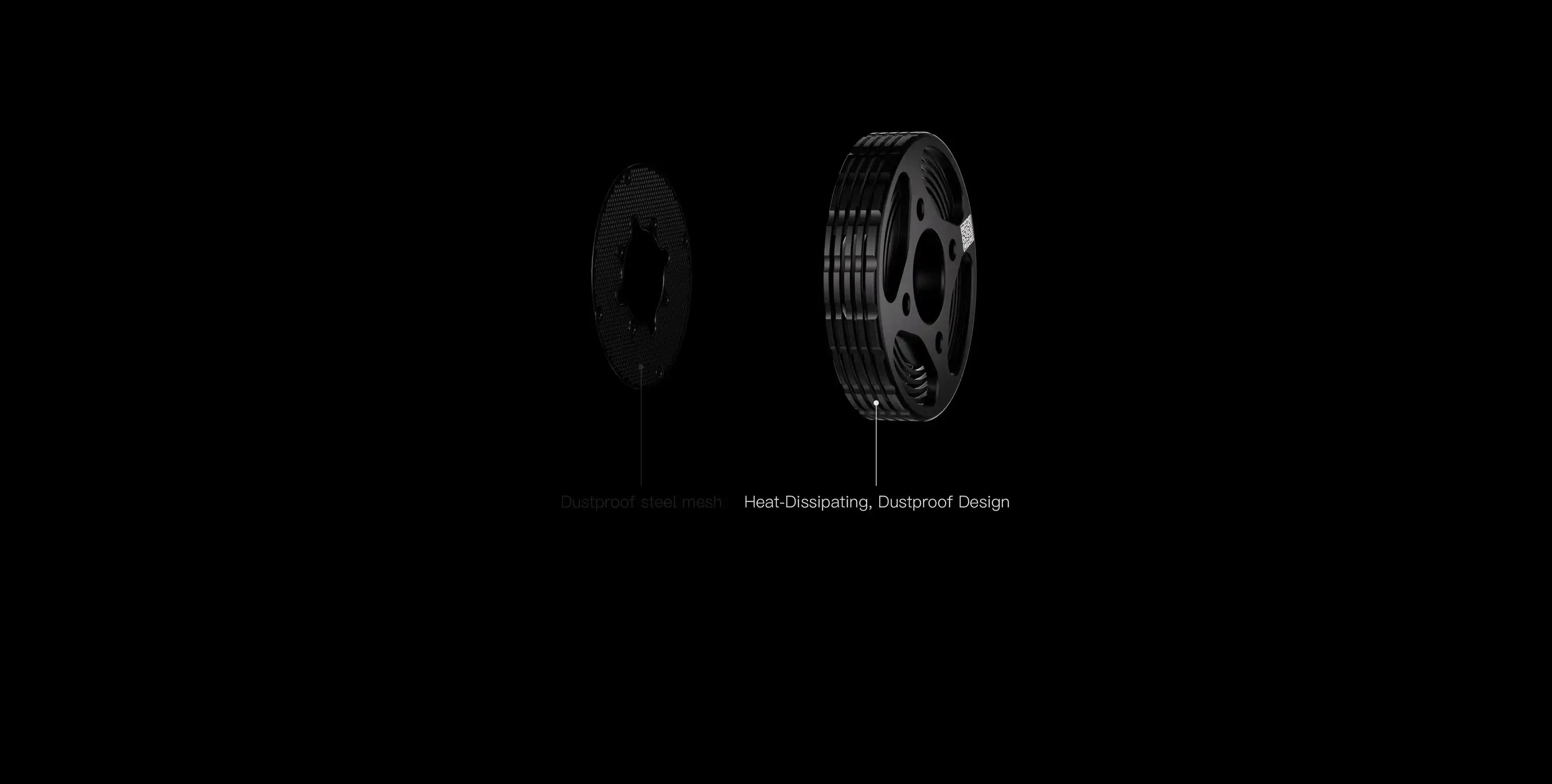

Featuring a dust-resistant structure with a steel mesh design, the motor effectively blocks particles ≥1 mm in diameter from entering through the air inlet. It is designed to withstand harsh environments such as dust and rain, meeting the demands of diverse scenarios.

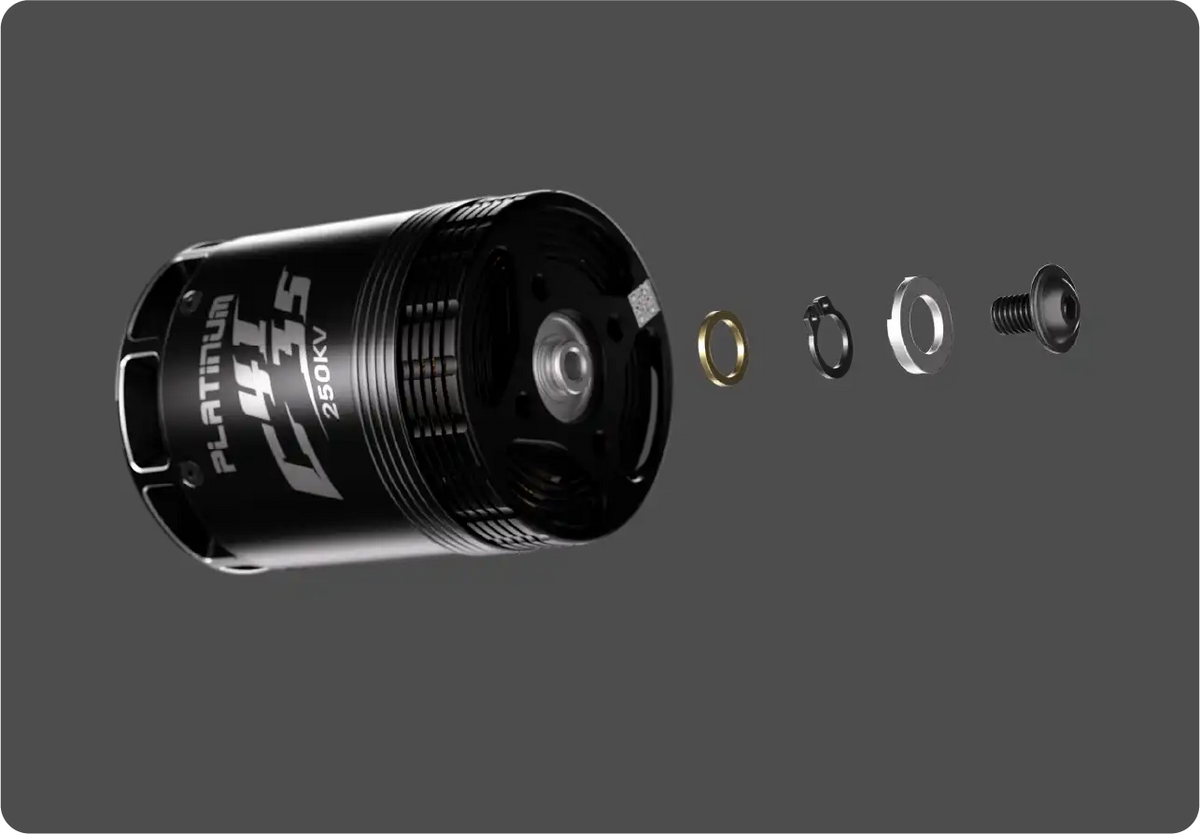

Anti Loosening Protection

Dual anti-loosening protection ensures long-term reliable operation.

Superior Design, Premium Materials

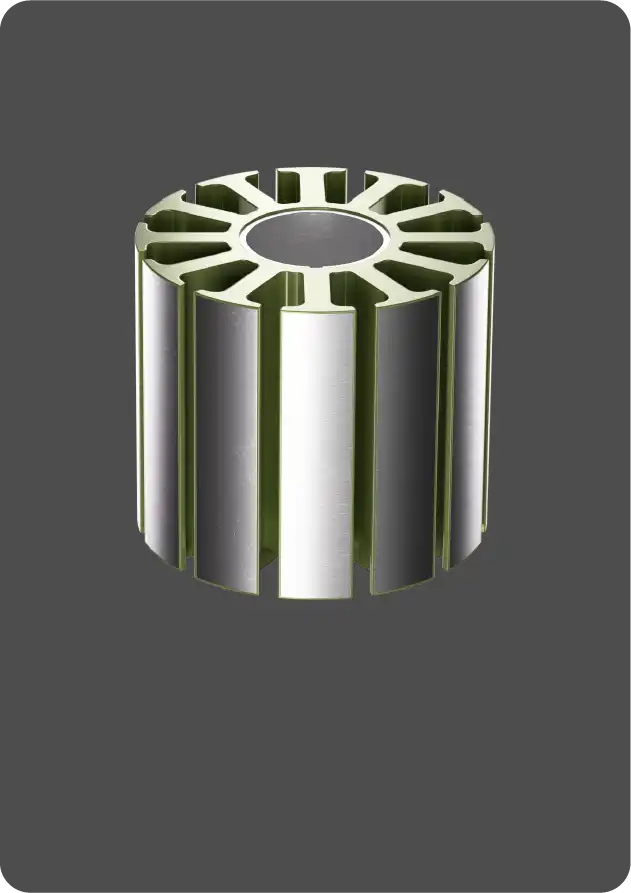

High-performance 0.15 mm low-loss silicon steel sheets reduce iron loss and improve motor efficiency.

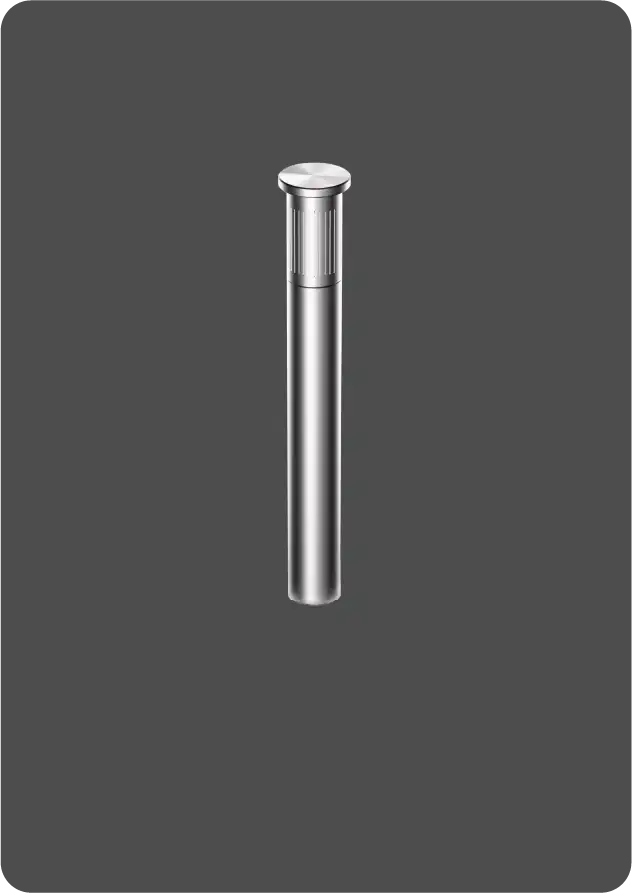

A TC4 titanium alloy shaft reduces motor weight while ensuring durability.

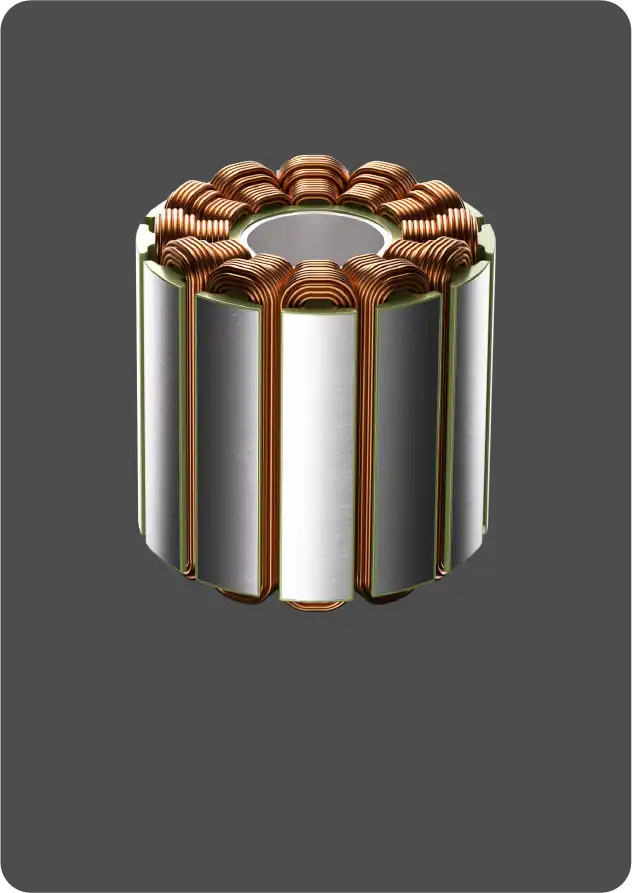

220°C high-temperature-resistant enameled wire handles continuous high-load operation.

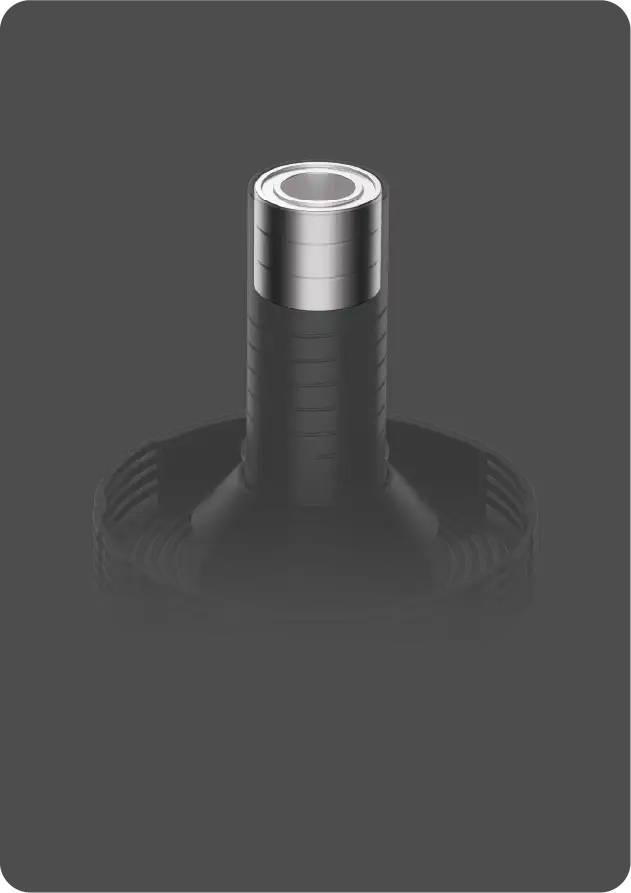

A three-bearing design enhances motor reliability.

Specifications

Model	Platinum C4135 210KV	Platinum C4135 250KV	Platinum C4140 200KV
Motor size	Φ51 × 69.5 mm	Φ51 × 69.5 mm	Φ51 × 74.5 mm
Stator size	Φ40.6 × 35.1 mm	Φ40.6 × 35.1 mm	Φ40.6 × 40.05 mm
Stator process	High-standard silicon steel sheet, 180°C high-temperature-resistant coating
Enamelled wire	220°C C-class
Isolation test	500V AC high-voltage resistance test
Slot & pole	12N14P
Bearing	1680KKMTR, MR148ZZ
Mounting dimensions	Φ20 mm – 4 × M3; Φ25 mm – 4 × M4
Performance
KV	210	250	200
Battery (LiPo)	12S	12S	12S
No-load current	1.6A	1.8A	1.7A
Max current (ambient ≤25°C)	64A / 1 min 17 s	82.7A	73.8A / 1 min 19 s
Rated power output	1093W	1333W	1267W
Max power	2834W	3670W	3277W
Max thrust	6.6 kg	7.7 kg	8.6 kg
Resistance	52mΩ	35mΩ	43mΩ
Wire	Enamelled wire, direct output, 150 mm
Weight (with wire)	494g	496g	548g
Recommended setup
Propeller	APC 17×10; carbon folding 17×12 / 17×13 / 17×14	APC 16×10 / 16×12; carbon folding 16×13	APC 18×10 / 18×12; carbon folding 18×12 / 18×13 / 18×14
ESC	Skywalker HV 130A OPTO V2 / Platinum HV 180A SBEC V5
Battery	12S LiPo
