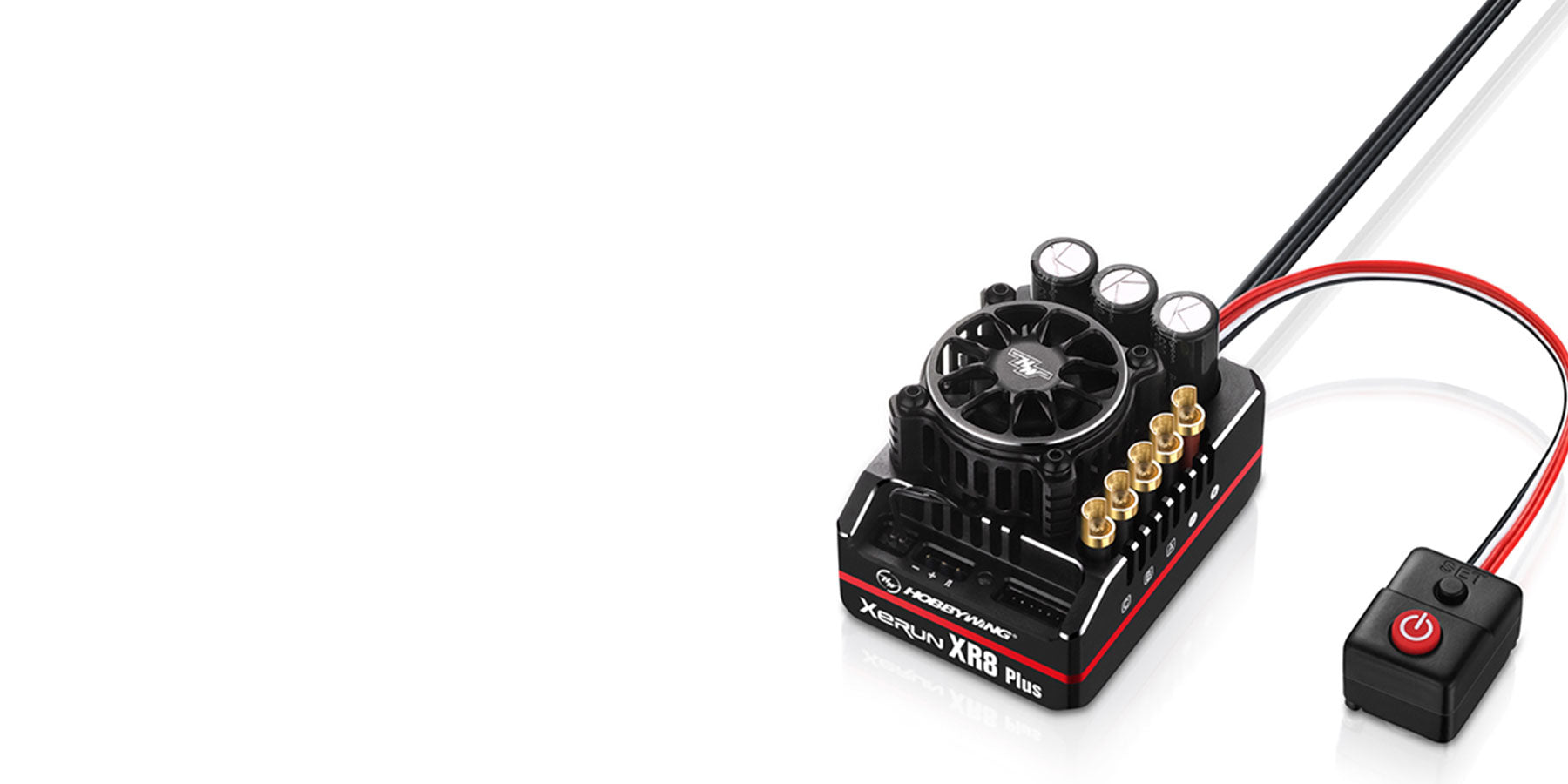

XR8 PLUS ESC system

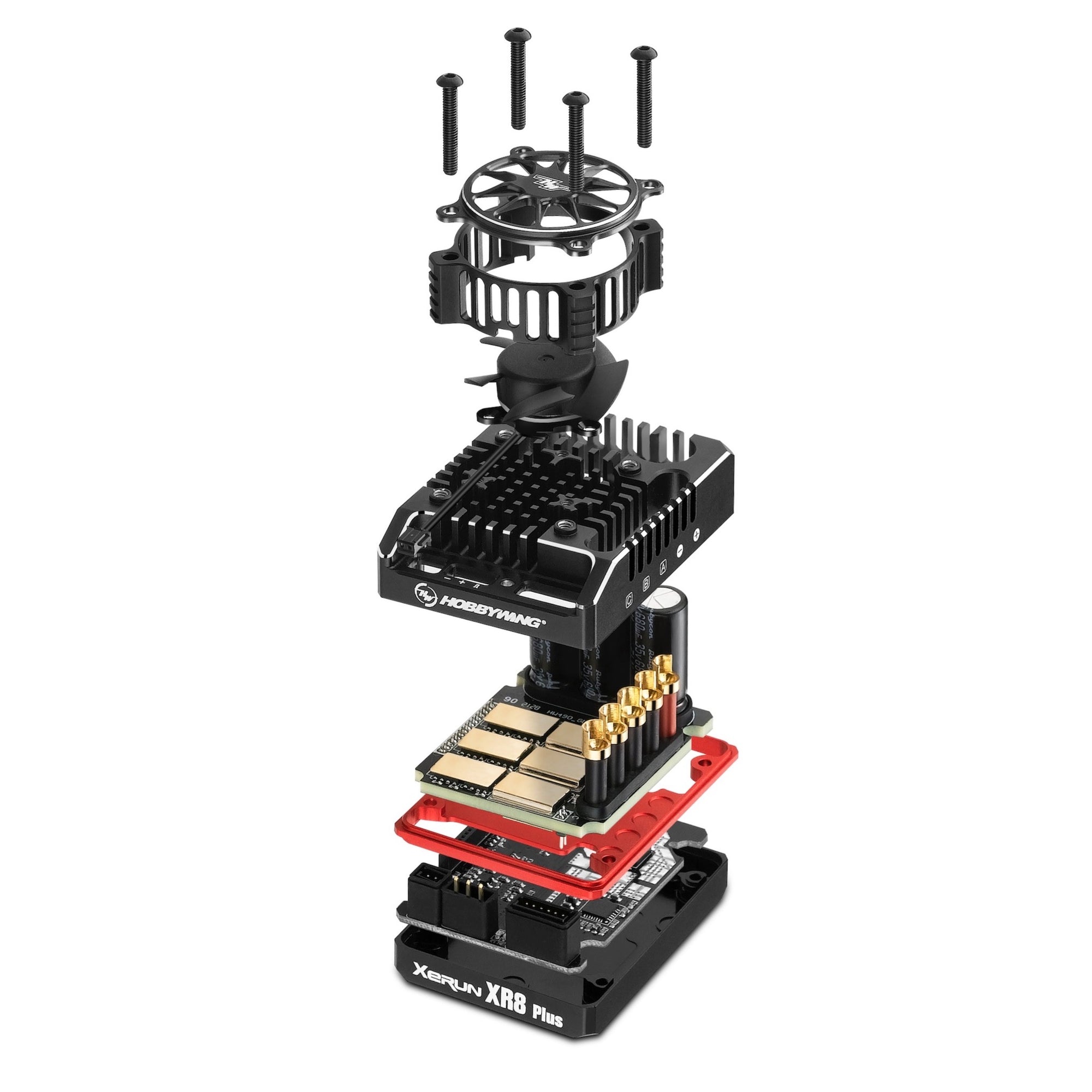

Flameless Cooling Design & Execution

MEGA Cooling Effect MEGA Cooling Effect

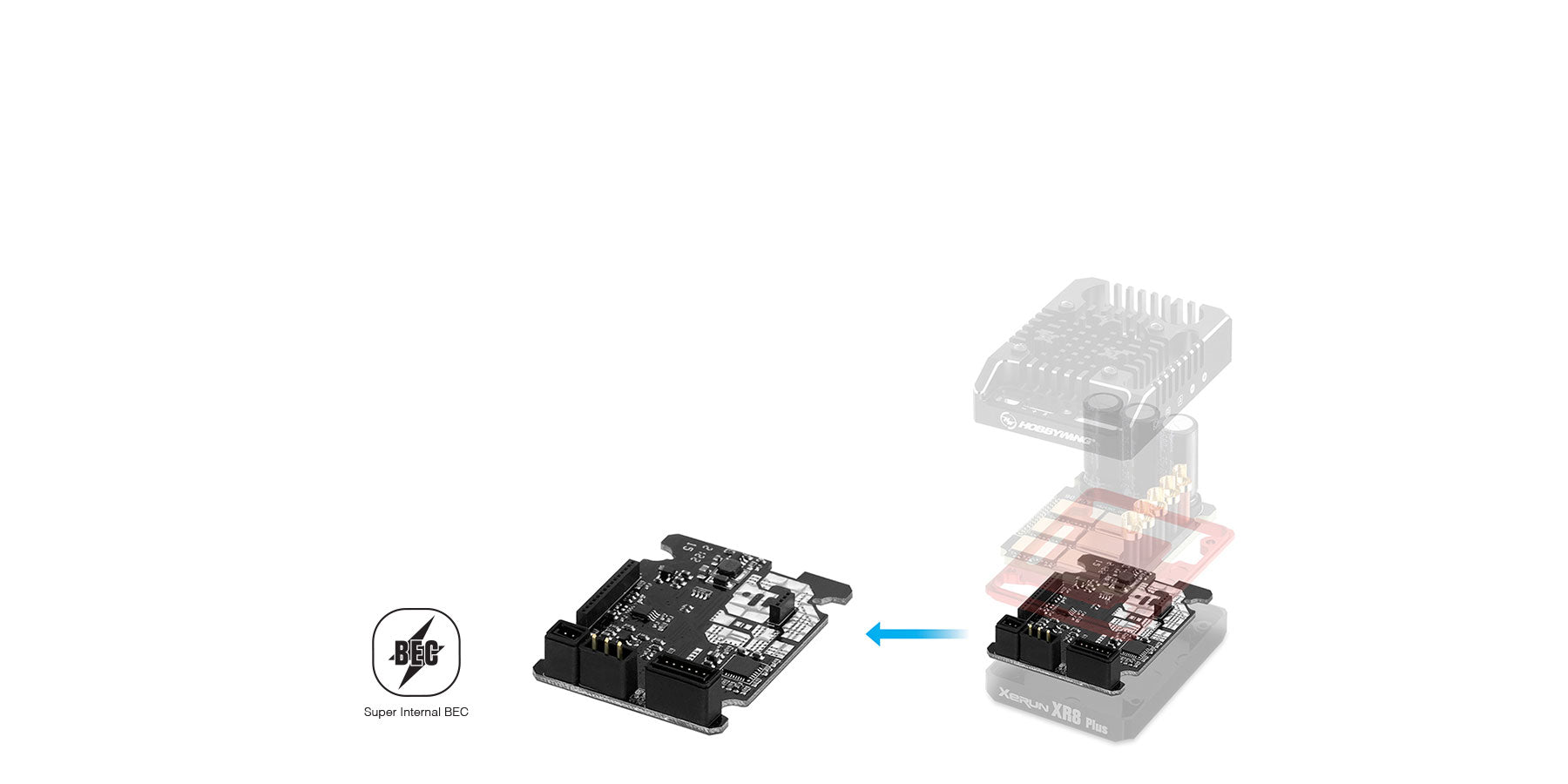

+ HOBBYWING's patented FCD system. The focus of the XR8 Plus G2S, is the all new, and patented fan technology. Cooling to the ESC increases performance and reliability. The cooler the ESC can stay, the better it works. For many years, racers simply bolted on a larger or faster fan. This did move more air, however it also increased the power demands of the ESC's internal BEC. This creates internal temperature rises and wear and tear on the ESC's BEC that lead to reliability and performance losses. By allowing more air to flow through the frameless design, loads from the fan actually go down (less power draw) while the airflow and cooling are increased. This new cooling system ensures maximum airflow with no losses through higher fan power draw.

>

+ Durable Frameless Fan -Damage to a fan can be devastating for a racer. Something that Hobbywing's design team took into serious consideration was creating a fan that did not break even in the most demanding conditions. New design, materials, and guards ensure the fan will live a long healthy life and not be damaged by even the most demanding racers.

++

Application No: PCT/CN2021/115679

+ HOBBYWING's patented FCD system. The focus of the XR8 Plus G2S, is the all new, and patented fan technology. Cooling to the ESC increases performance and reliability. The cooler the ESC can stay, the better it works. For many years, racers simply bolted on a larger or faster fan. This did move more air, however it also increased the power demands of the ESC's internal BEC. This creates internal temperature rises and wear and tear on the ESC's BEC that lead to reliability and performance losses. By allowing more air to flow through the frameless design, loads from the fan actually go down (less power draw) while the airflow and cooling are increased. This new cooling system ensures maximum airflow with no losses through higher fan power draw.

>

+ Durable Frameless Fan -Damage to a fan can be devastating for a racer. Something that Hobbywing's design team took into serious consideration was creating a fan that did not break even in the most demanding conditions. New design, materials, and guards ensure the fan will live a long healthy life and not be damaged by even the most demanding racers.

++

Application No: PCT/CN2021/115679

Huge Lift by a small fan

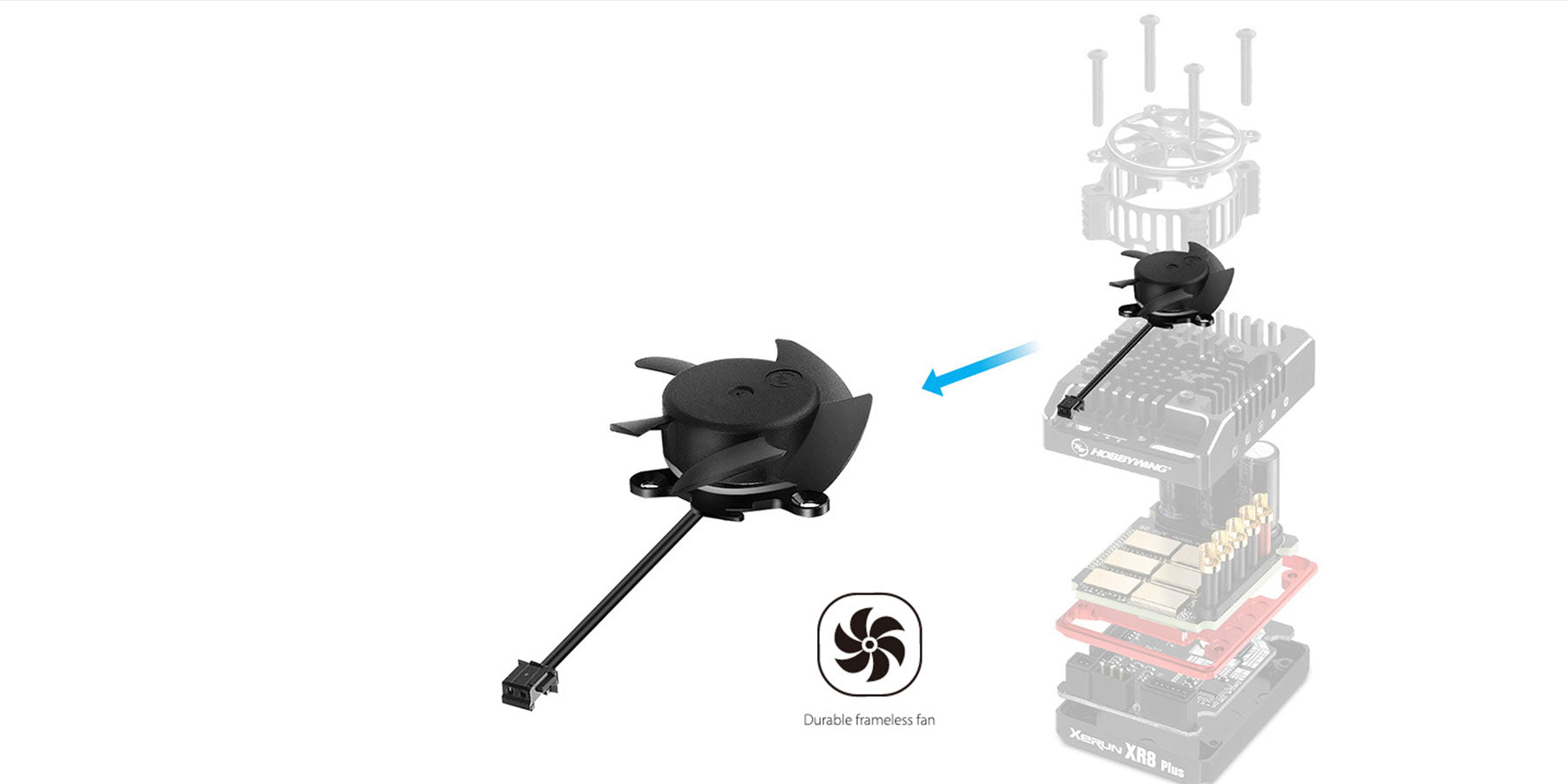

Durable frameless fan Durable frameless fan

The all-new frameless fan blades uses a special material and are extremely hard and reliable. It greatly reduces the damage of the fan blades caused by the impact of small stones, sand and other foreign objects. Thus, reduces the failure rate of the fan than compared with the traditional pbt fan.

Just right.

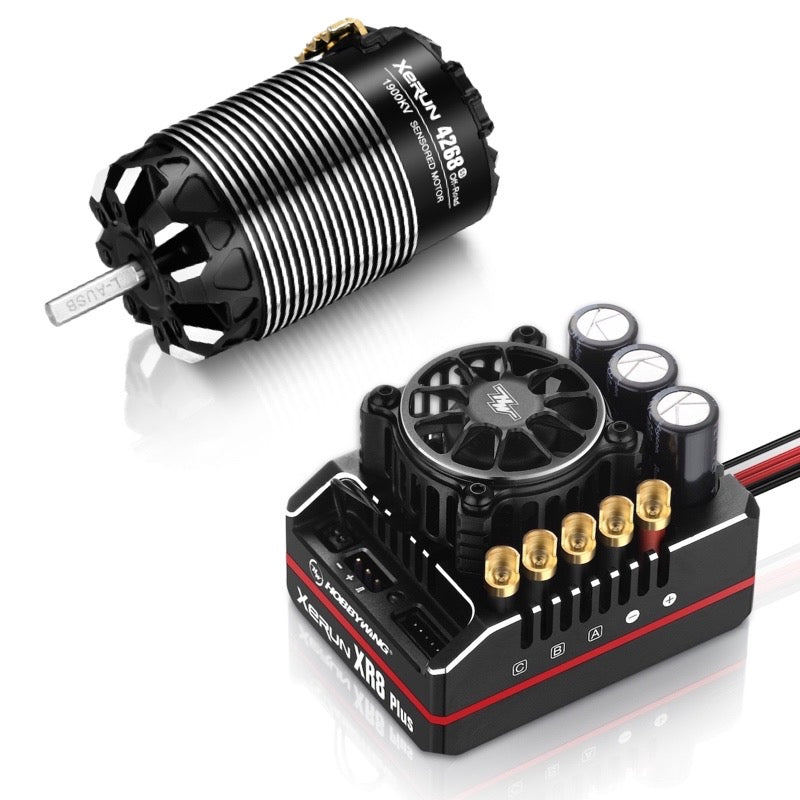

1/8th power system, Boost & Turbo Timing Technology 1/8th power system, Boost & Turbo Timing Technology

This ESC pairing with Hobbywing motor can start Turbo Timing technology which succeeded in 1/8th On-Road contest. It supports 48 degrees Boost and Turbo Timing. When pairing with Hobbywing 4268/4274 G3 motor, the max. speed can be promoted by 50%. Easily win your rival.

Protect your investiment

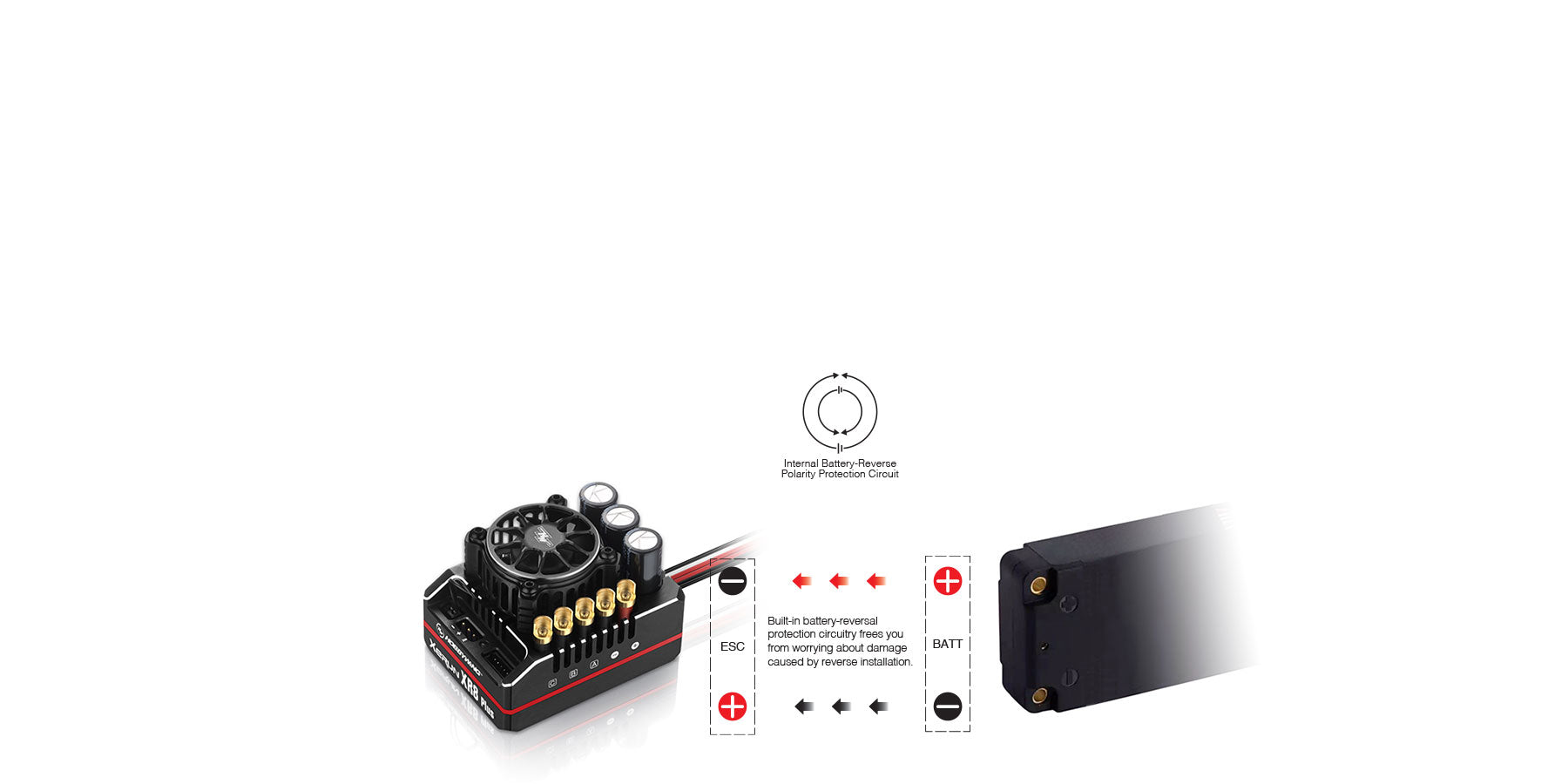

Reverse Voltage Protected Reverse Voltage Protected

The XeRun XR8 Plus G2S features complete reverse voltage protection. Often battery packs get "Woops" connected and power is crossed. The XR8 Plus G2S is protected from this causing damage to the ESC.

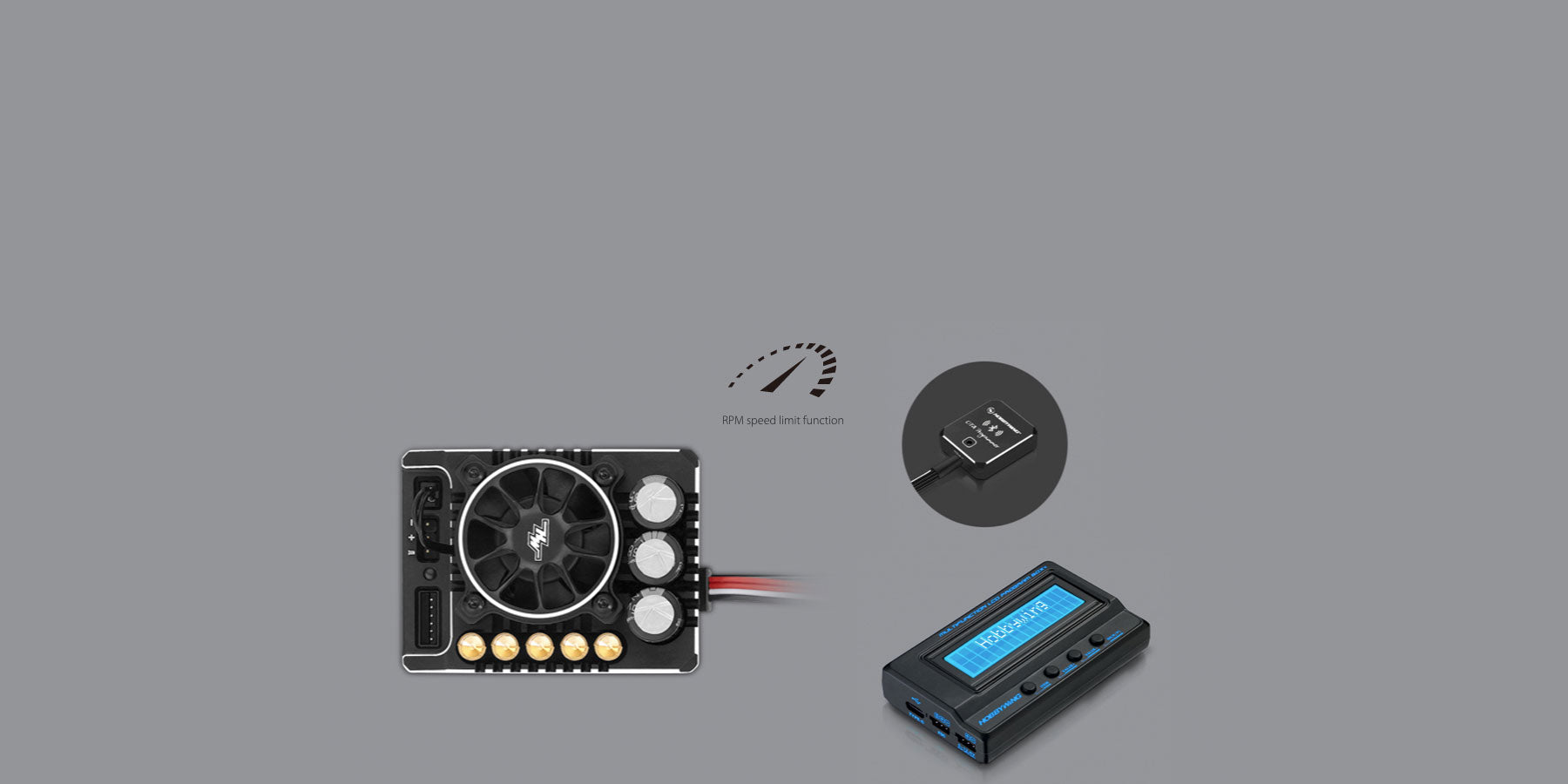

RPM speed limit function RPM speed limit function

he ESC is able to support up to 6 different speed (RPM) selections to meet the needs and demands of various competitions in the world. It can be programmed through using the latest OTA Bluetooth module or the traditional 3in program box.

20% More flexibility and control

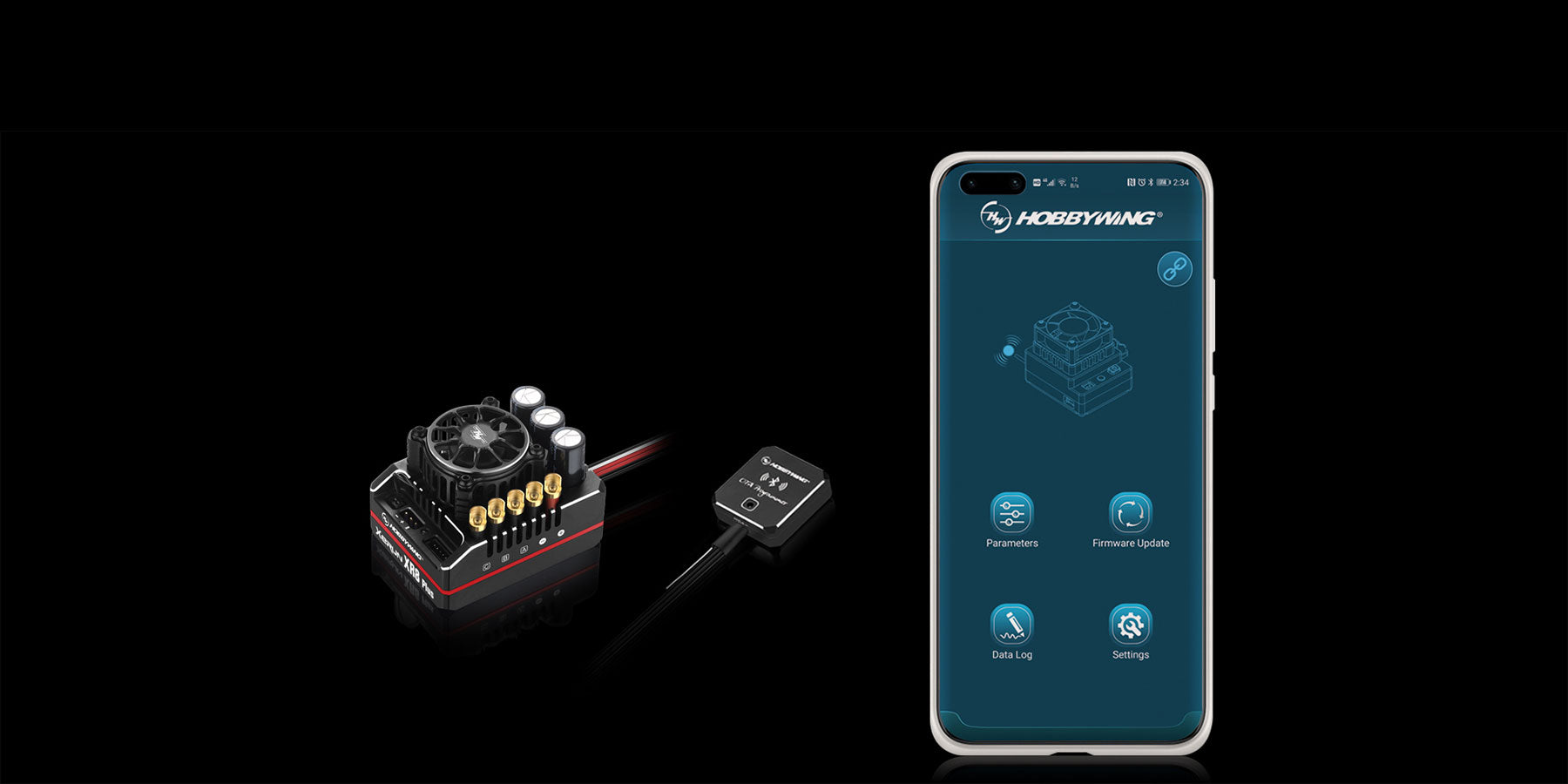

Programming / Upgrading / Data reading wirelessly Programming / Upgrading / Data reading wirelessly

With Hobbywing's OTA module and smartphone (with the
HOBBYWING HW Link App installed), the user can program
parameters, upgrade firmware and heck relevant data of the ESC

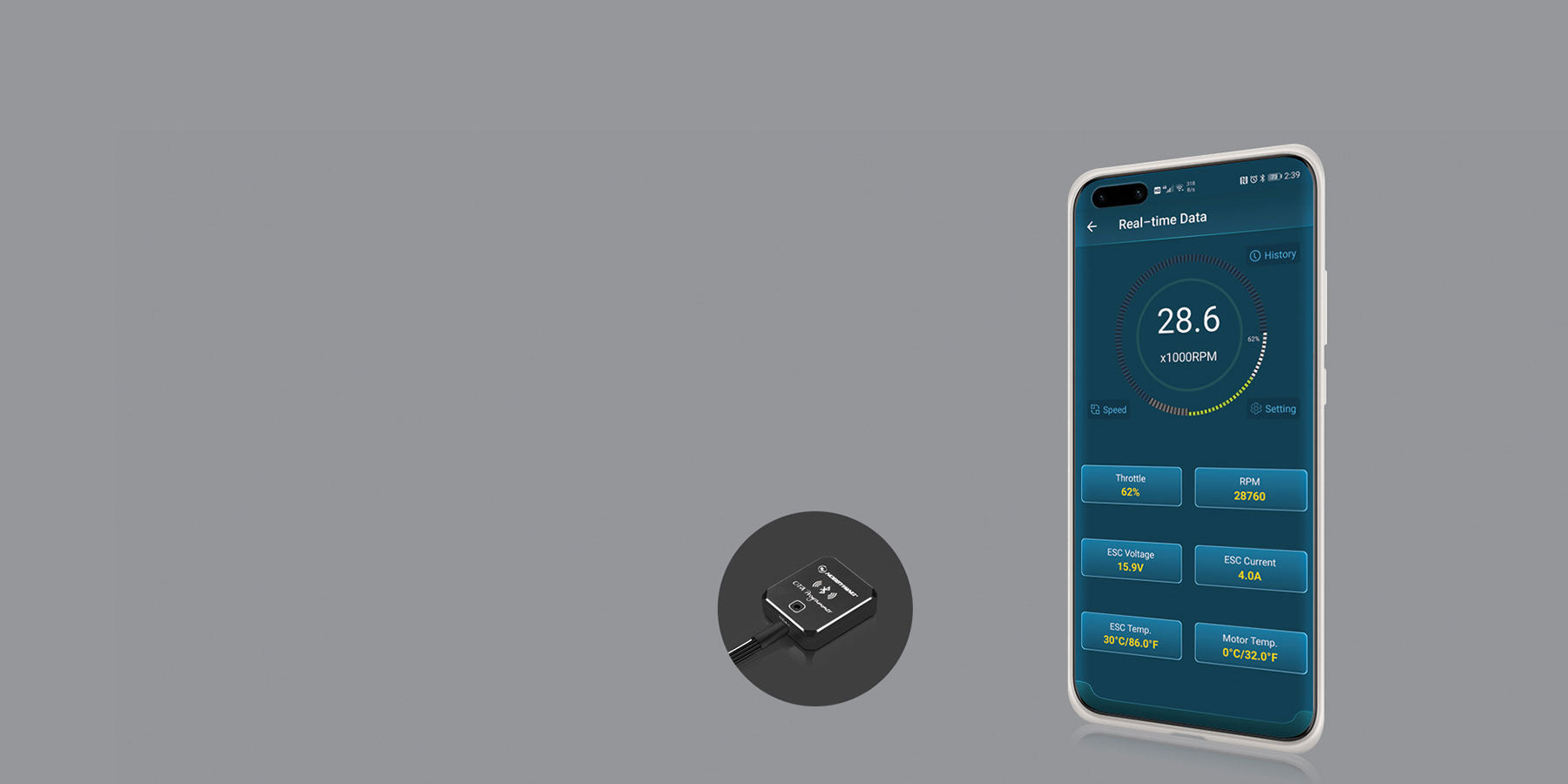

Easy Obtain Running Status with Real-time Data Recording Function Easy Obtain Running Status with Real-time Data Recording Function

With Hobbywing's OTA module, Connect the HW Link App to the ESC
and open the real-time data recording function, to check the throttle,
voltage, current, temperature, RPM and other data in real-time. Easy
obtain running status of ESC and motor.

Unlock the true potential

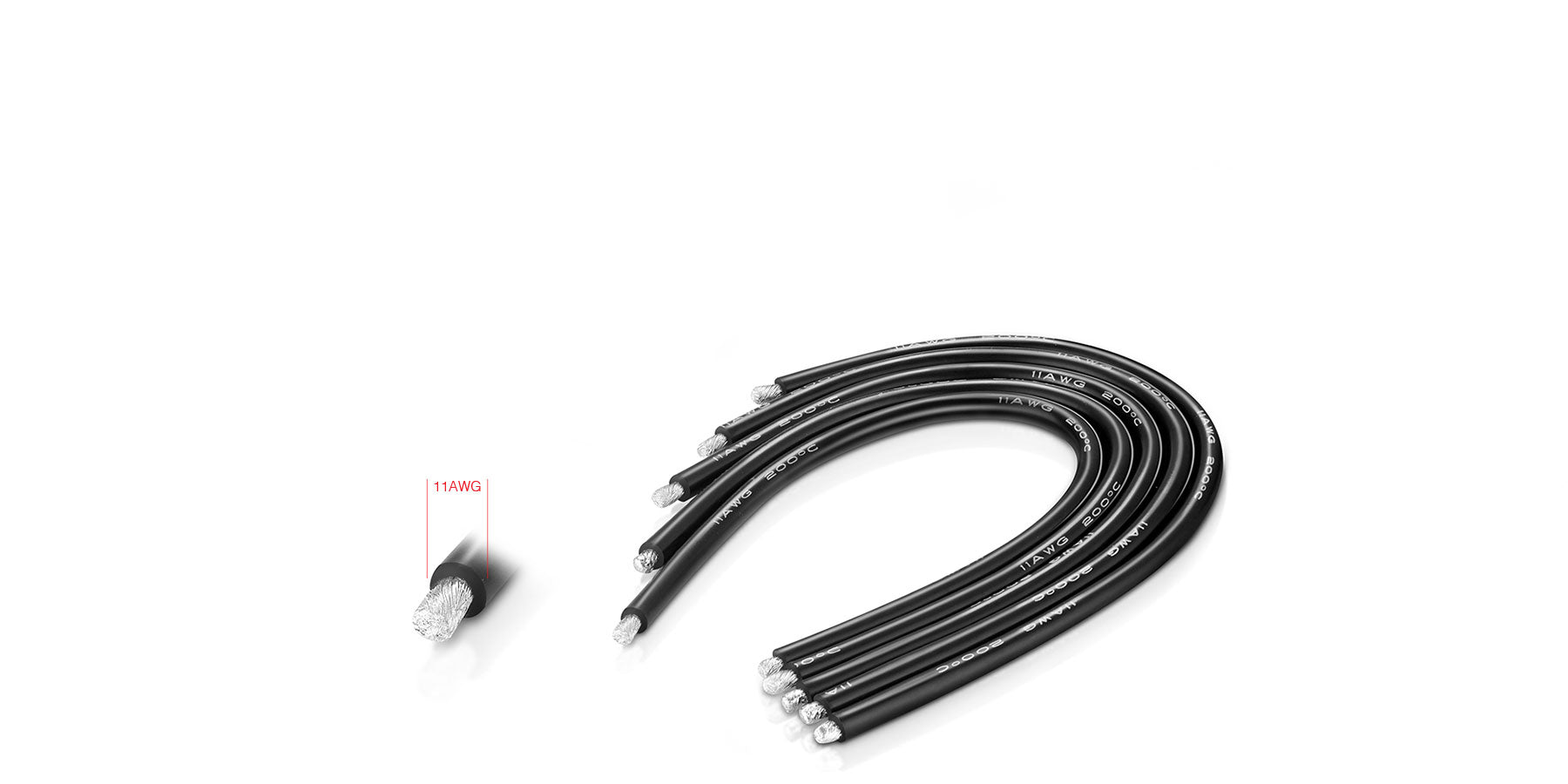

Custom ultra-soft 11AWG silicone wire Custom ultra-soft 11AWG silicone wire

The ultra-soft 11AWG silicone wire is specially chosen for this product. The wire is ultra-flexible and low in resistance, making it the perfect combination to for your electronics.

Edition Package	XR8 Plus G2S	XR8 Plus
P/N	30113304	30113300
Power	2-6S Lipo	3-6S LiPo
Wire Gauge	11AWG	12AWG
Cont./Peak Current	200A/1080A	150A/950A
Motor Limit	With 4S Lipo: KV≤3000 4268/ 4274 Size motor With 6S Lipo: KV≤2400 4274 Size motor	3S LiPo / 9cell NiMH: 3660 size motor, KV≤4500 4S LiPo/12S NiMH:≤ KV3000 for 4274 size 6S LiPo/18S NiMH:≤ KV2400 for 4274 size
BEC Output	6-8.4V Adjustable, Continuous/Peak Current: 6A/15A(Switch-mode)	6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)
FFD Technology*	YES	No
Reversed Polarity Protection	YES	No
Programming	OTA programmer / LCD program box	OTA programmer / LCD program box
Size & Weight	56.1mmx42.1mmx38.5mm 122g (w/wires)	58.7 x 48 x 36.9 127g (W/O Wires)

Cooling fan	Included : 5-8.4V power by BEC	Included
Decals	Included	Included

*FFD=Frameless Fan Design (Patented)

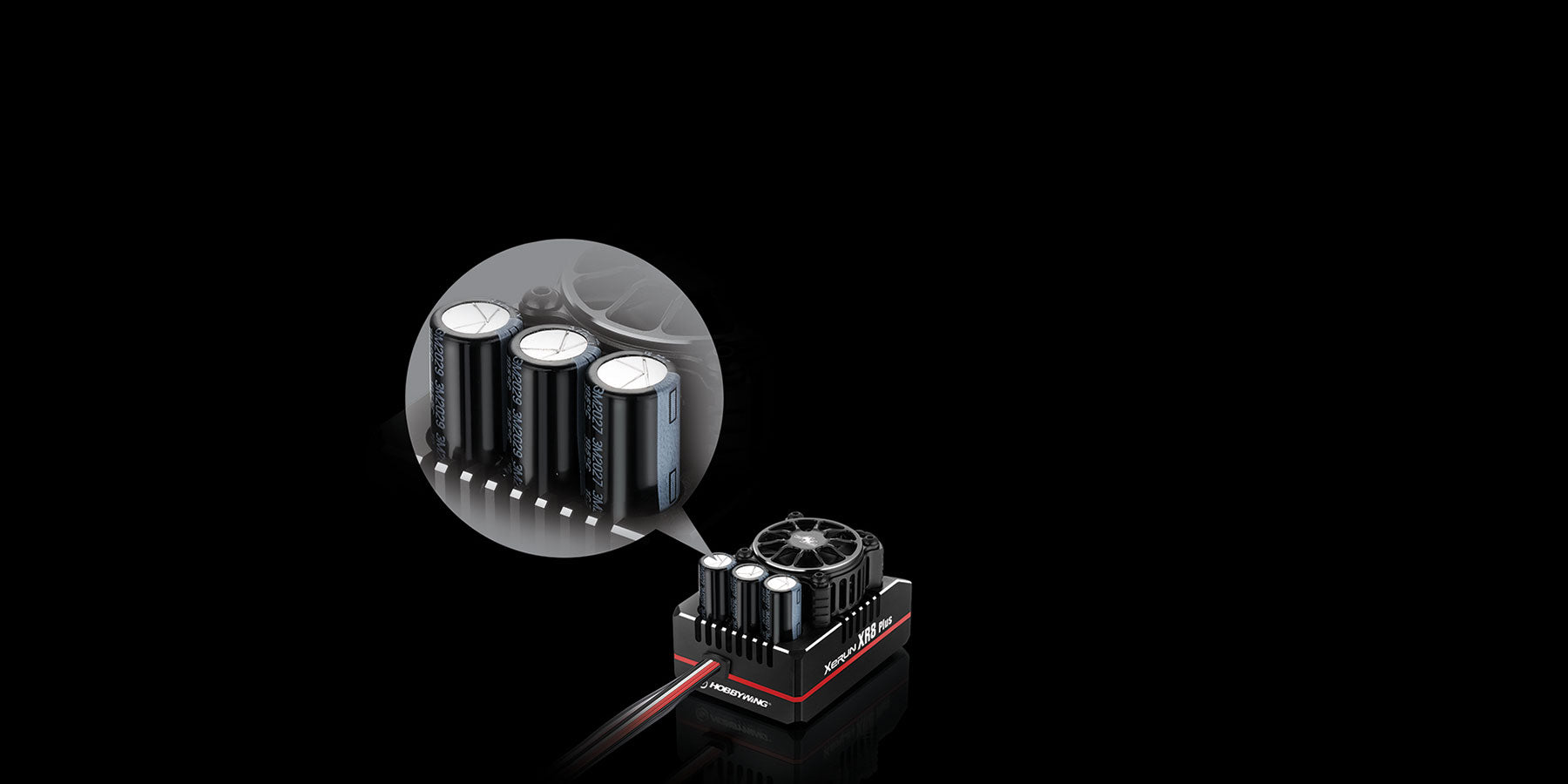

IMPORTANT NOTE: Although XR8 Plus G2S ESC is equipped with a built-in-reversed polarity protection feature, the external standard cap pack will still be damaged if reverse polarity does occur. For full protection, recommend using the HOBBYWING Non-polarity Capacitor module (purchase separately)
