IMPORTANT: To ensure your safety in the North American region, please proceed with your order first. Afterward, submit the Product Release Form.Your order will not be shipped without the completed release form.
If the ESC comes with CAN functions, CAN digital throttle may need to be adapted and configured specifically by the flight controller and the Hobbywing CAN protocol. In this case, you need to obtain the agreement from HOBBYWING, flight control manufacturer and/or any other agencies necessary.
Learn more > Datasheet, Manual download >
| Model | XRotor Pro H300A 24S BLDC |
| Digital Throttle | Support(CAN) |
| Double Throttle Signal | CAN/RS485 |
| Continuous Current | 140A |
| Specification | 300A (3s) |
| BEC | None |
| Voltage | 24S |
| Weight without Wires | |
| Size | 175*76*47mm |
| Operating Pulse Width | 1100-1940μS |
| IPC | Optional |

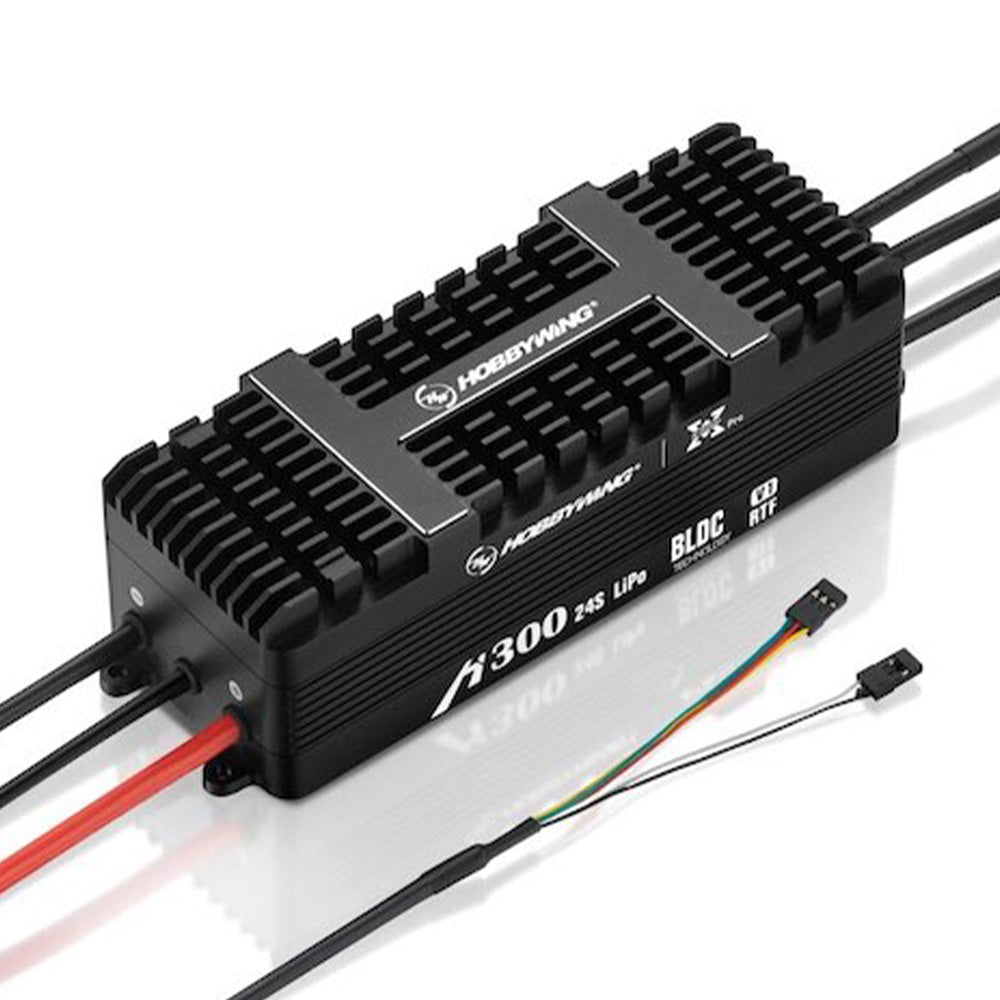

Brushless ESC with BLDC drive, specialized designed for UAV drones.BLDC performs better compatibility and stability in driving. IPC (Intelligent Propeller Control) version is optional, allowing flexibly stop propellers at a preset or fixed angle. IP55 protection level (IP67 optional), dustproof and waterproof .Optimized structure design, easy to install on both multi-rotor and VTOL fixed-wing drones. Supports CAN & PWM dual throttle, better resist external electromagnetic interference. New Generation Black Box Feature, allowing millisecond-level data recording and fast data & fault analyzing.
